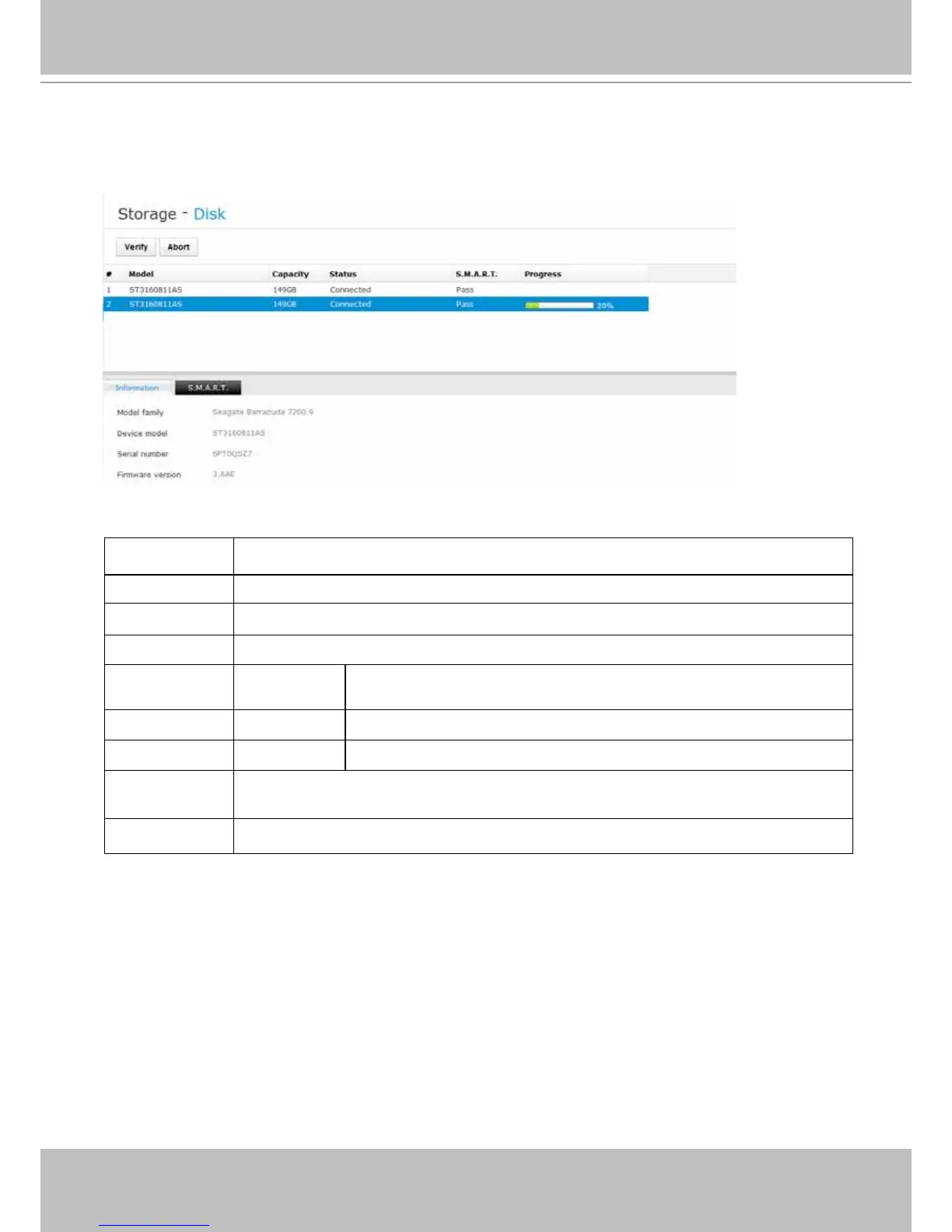

The Disk window provides access to physical disk information, disk physical location, disk
health, polling for S.M.A.R.T. statuses, and bad block check.
5-4-2. Storage - Disk
(#) numbered: Disk index. This is determined by their locations in the chassis.
Model: Disk model name.
Capacity: Disk capacity in Gigabytes.
Status: Disk operating status. Can be stated as:
Connected: Disk is properly installed, but not yet congured into storage
volume.
Identied: The storage volume this disk belongs to is operating normally.
Corrupted: Disk is faulty.
S.M.A.R.T.:
S.M.A.R.T. status polled from the disk drive. These are not the results from a
manually-executed S.M.A.R.T. test.
Progress: This shows the progress of drive S.M.A.R.T. test or bad block scan.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
