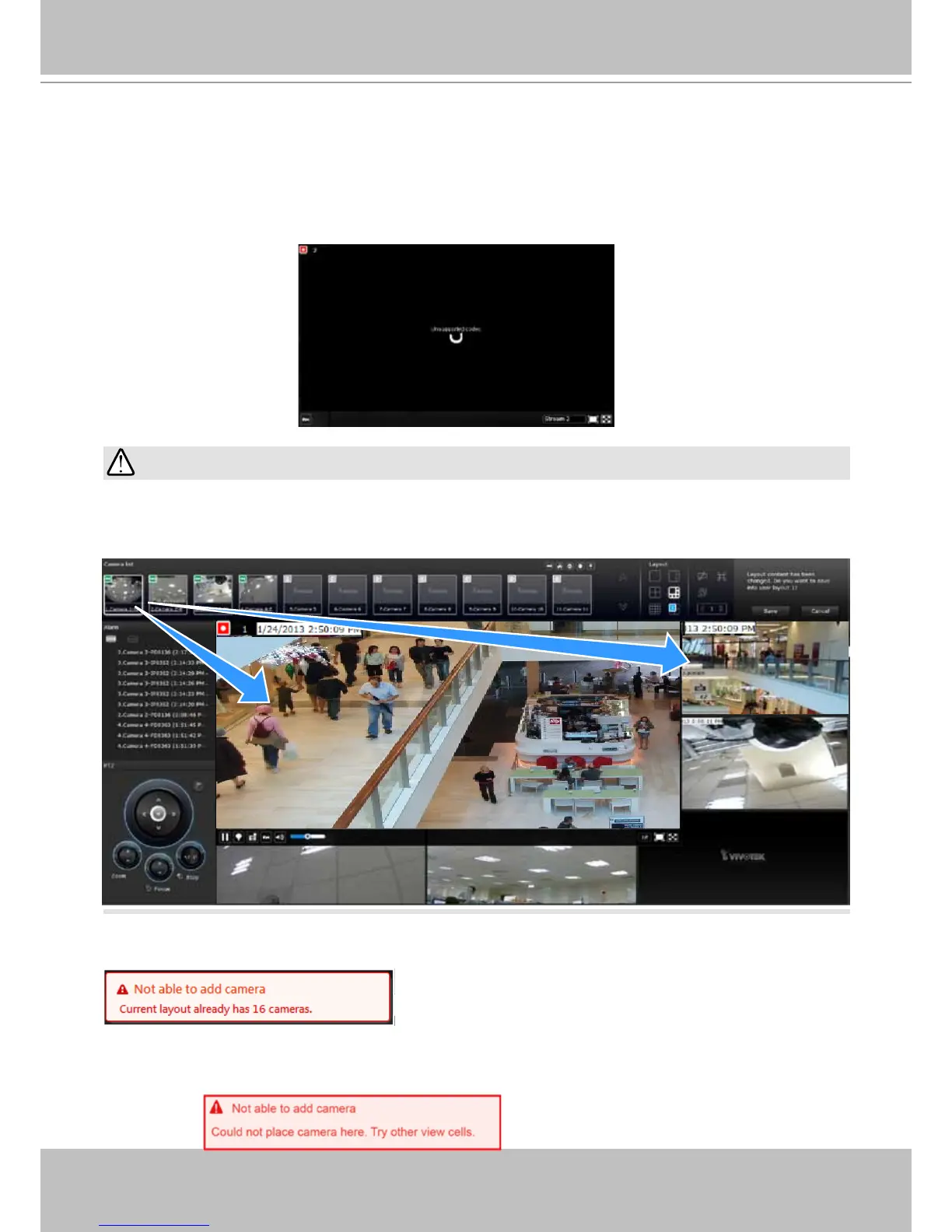

A camera can be inserted into multiple view cells. This way, a camera with a wide eld of view, ,
can simultaneously display different regions of interest on different view cells.
IMPORTANT:
If the current layout already contain the max. number of cameras - 8 for ND8322P, and 16 for
ND8422P, the following message will prompt.
If you are using the 8-CH ND8322P, there can be more than 8 view cells across multiple layout
pages, e.g., on the second page of the 1+5 layout. Placing a camera in the 9th to 11th view cells
will bring out the following message.
A view cell attempting to connect to a network camera will look like this. If the connection
attempt takes a long time, it may result from network problems or incorrect conguration with
video streaming. For example, you may have congured the camera to be streaming a 5MP
stream. The NVR uses video stream #1 for recording, and stream #2 from cameras for live
viewing. You should then open an individual web console with the network camera to change its
video streaming conguration.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
