3.5.2 Stand-by mode of inverter
In the stopping or running status can the display shows a various of state parameters. By
Function Code P7.03 (operating parameters), P7.05 (stop parameter), various definitions
can refer to P7.03 and P7.05 function code.
3.5.3 Inverter operation
In the operating state, it is possible to choose whether a total of sixteen operating
parameters should be displayed: operating frequency, set frequency, bus voltage, output
voltage, output current, operating speed, output power, output torque, PID setting, analog
input PID FIV voltage, FIC analog input voltage, number of multi-turn segments, torque set
point; whether to display the function code is decided by the selection of bit P7.03 and
P7.04, press the button to switch the display order of the selected parameters, press the left
button to switch the display of the selected parameters.
3.5.4 Failure reports
The V 800 series offers a variety of fault information. Please read Chapter 5 on V 800
inverter errors and troubleshooting them.
3.5.5 Setting of PTC and TK thermal protection of the motor

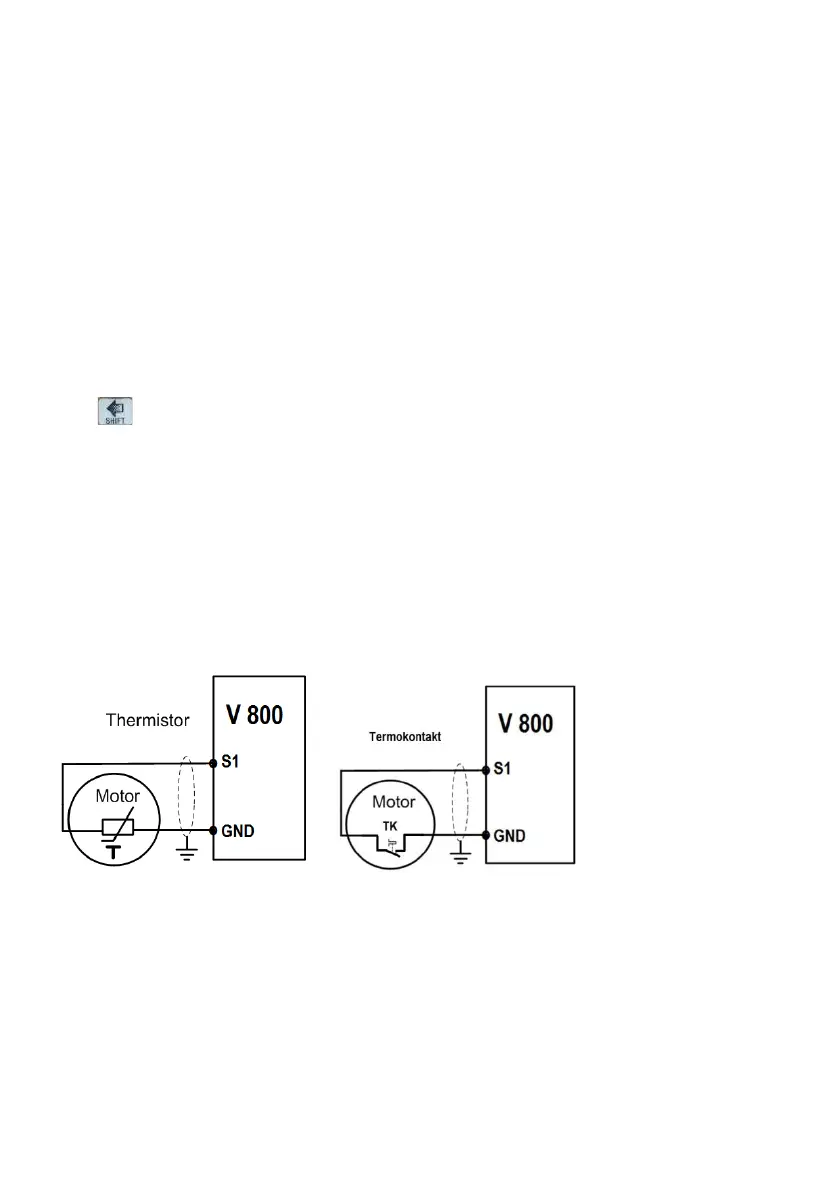

Connect the PTC thermistor and the TK electric motor according to the picture:
For example, the parameter setting is as follows: P5.02 = 33
