VYBO Electric Vector V800 - Control Terminal Block for Equipment Type S Models

Chapter 2 Installation and wiring
26

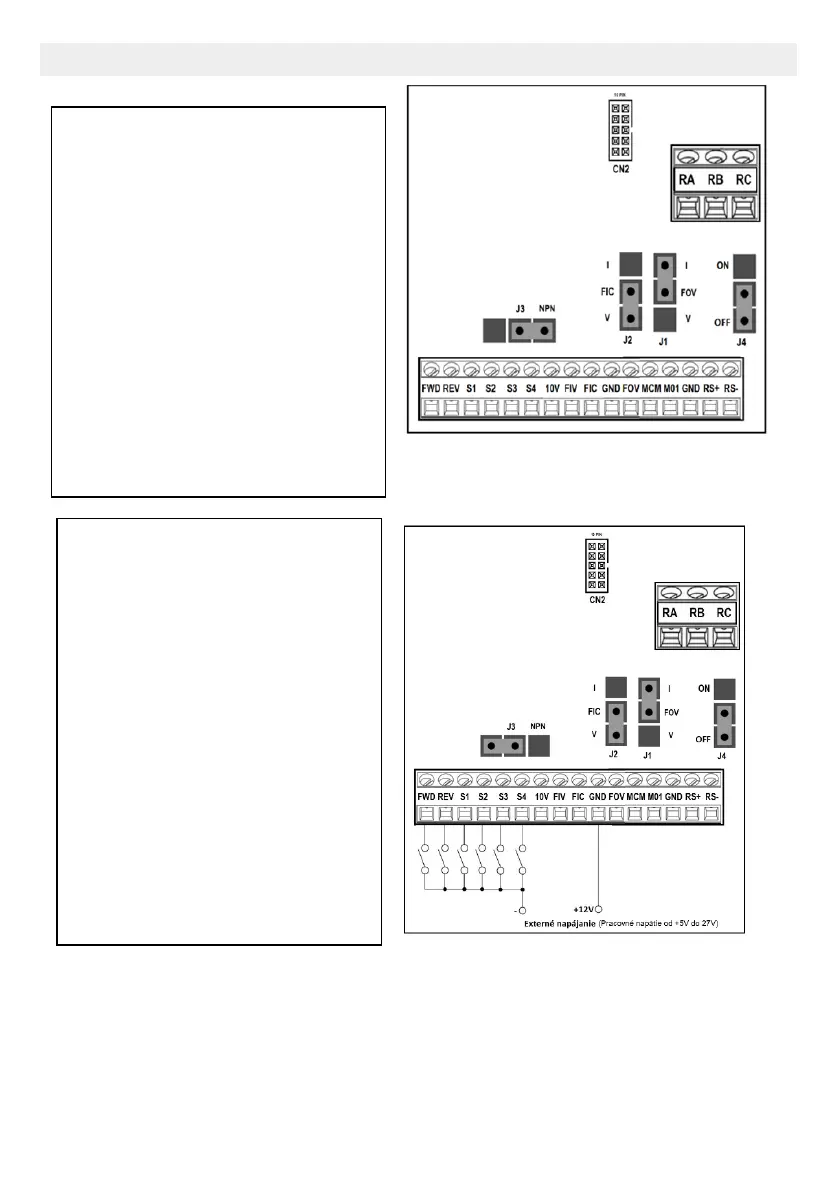

Control terminal block for equipment type S models
- Switch J2 determines whether the
FIC is a voltage 0-10V or a current 4-
20 mA input
- Switch J1 determines whether the
FOV is a voltage or current 4-20 mA
output
- Switch J3 determines whether the
source of digital inputs is internal or
external
- Switch J4 determines the ON/OFF
resistance of the communication line
- CN2 is a 10PIN port for connecting a
display or extension cable
Type: NPN
- Switch J2 determines whether the
FIC is a voltage 0-10V or a current 4-
20 mA input
- Switch J1 determines whether the
FOV is a voltage or current 4-20 mA
output
- Switch J3 determines whether the
source of digital inputs is internal or
external
- Switch J4 determines the ON/OFF
resistance of the communication
line
- CN2 is a 10PIN port for connecting
a display or extension cable
Type: NPN
