Chapter 2 Installation and wiring
28

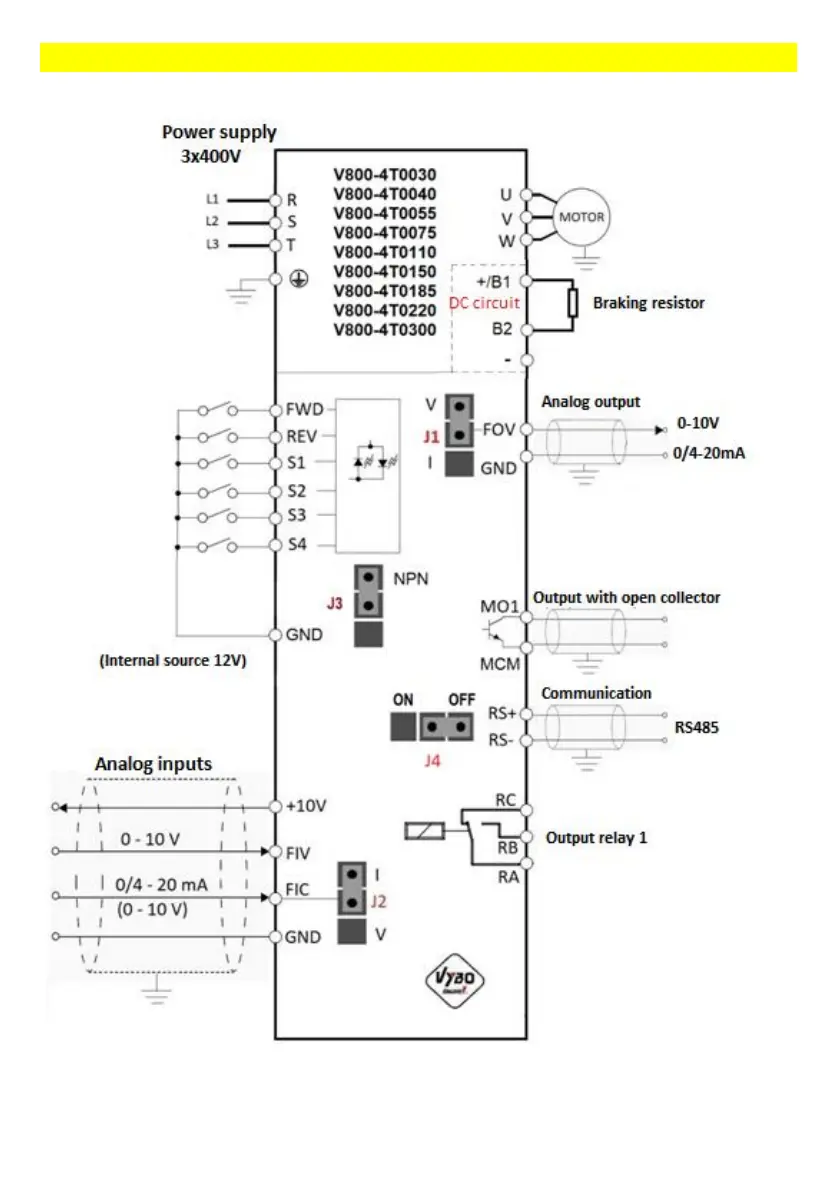

2.3.4. Basic wiring diagram VECTOR V 800 – 4T... equipment type T
NPN Internal source
