BA 357-00 * 3.0 * 35700_04_Inbetriebnahme_03.fm 4-37
Putting into operation 4

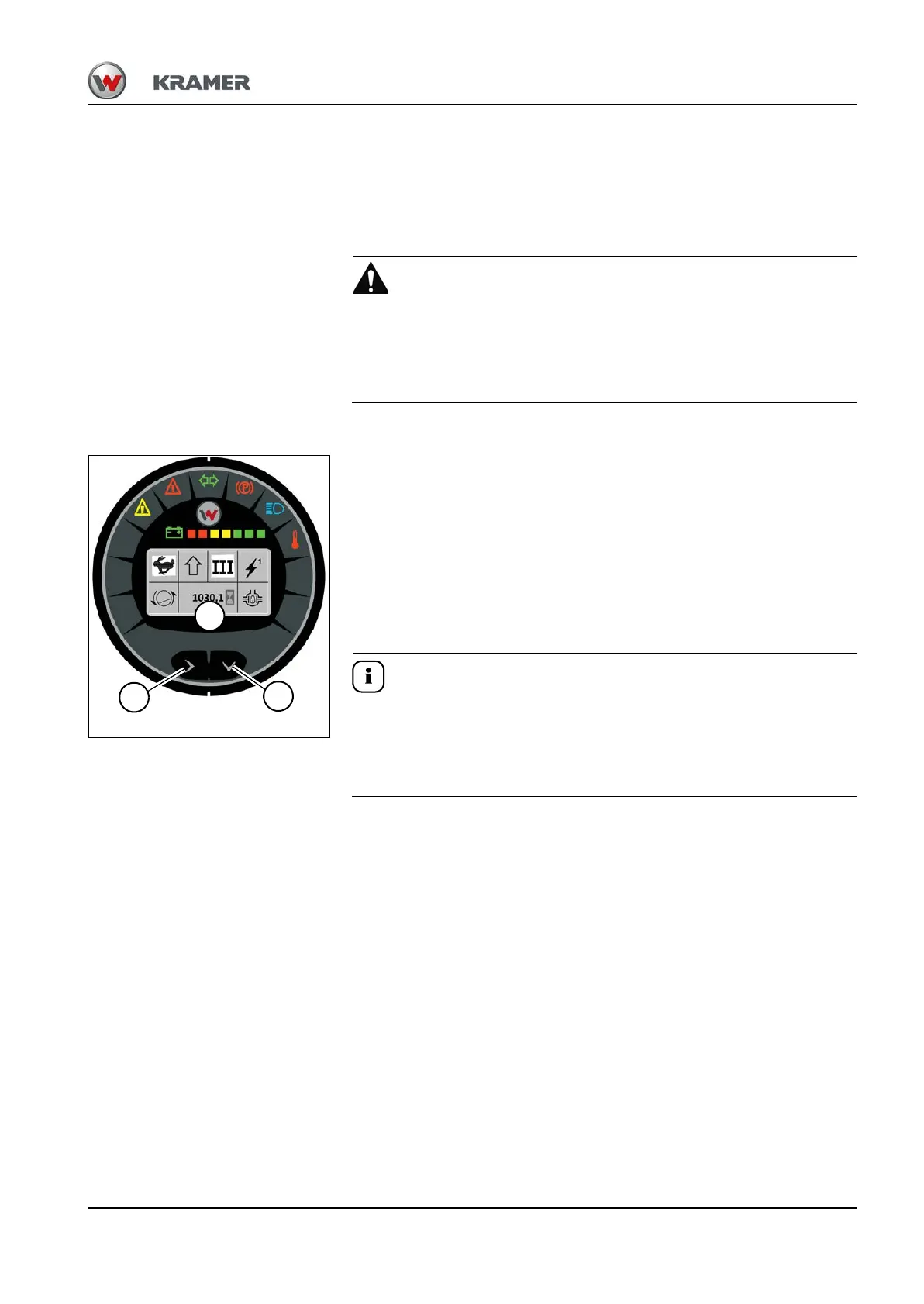

Description of the digital display on gauge
The gauge is equipped with a warning sound display as well as a digital
display 45. The digital display provides information on active functions,
current operating states, service information, machine
status and error codes.
Accident hazard when operating the digital display during machine
travel!
Can cause serious injury or death.
► Stop the machine before operating the digital display.
Operation of digital display
The following table gives an overview of the structure of the digital display.
When the machine is turned on, the main indicator
appears on the display 45.
Use the buttons 46 and 47 to request and show additional information in
the display.
By pushing on the button 47, the digital display changes from the main
indication to the service indication and vice-versa.
By pushing button 46, the digital display scrolls down
one level within the main indication.
It is possible to change between both indications at any time, even while
scrolling within the display levels.
If the last level of a display has been reached, the digital display will then
automatically jump back to the first level of the display.
