Maintenance 7
Charging preparation
The battery must be charged if the control display of the battery charge
condition indicates a weak charge state or if the battery performance
decreases.
1. Check whether the plug receptacle provided for connecting the battery
charger is designed for 16 A and the supply line is secured with 16 A.
2. Park the vehicle near a tested plug receptacle (power cable length of
the battery charger of 5 meters) on a load-bearing, flat and dry surface.
3. Apply the parking brake.
4. Lower the loader unit to the ground.
5. Switch off motor isolating switch.
6. Turn the machine off and remove the ignition key.
7. Open the battery cover plate.
8. Only disconnect the battery connector up to serial number 357 00 0049
(After serial number 357 00 0050 the start-up protection in the vehicle
is activated and it is no longer necessary to
disconnect the battery connector)
9. Close and open the cover A of the battery charger.
Check the battery charger before connection
1. If the power cable B is not yet plugged into the battery charger,
connect the power cable with the battery charger.
2. Check the power cable for damage and a firm seat.
3. Check the housing and switch for damage.
4. Check the insulation of the cables for damage.
5. If damages are discovered, have the damage removed prior to use by
an authorized service center.
Power cable version 1 phasing out starting in 2017.

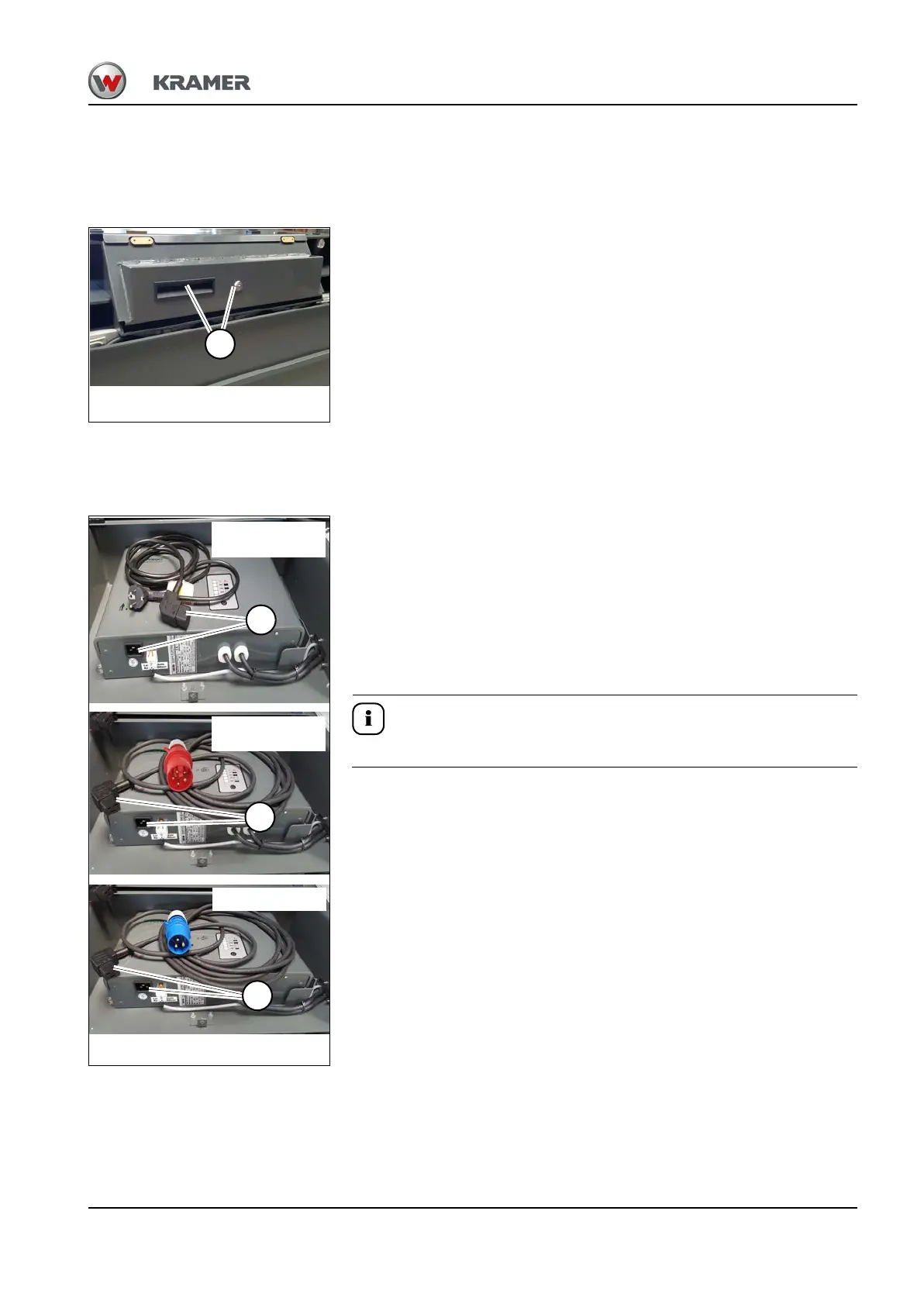

Fig. 219
B
B
B
Standard
Variant 1
Standard
Variant 2
Option
