7 Maintenance
Connecting the battery charger
If the battery cover plate is closed during charging, the power cable can be
damaged.
► When closing the battery cover plate, ensure that the power cable is
not damaged.
1. If the machine was not used prior to charging the battery, run a test of
the insulation.
Turn on the machine.
➥ If the red warning light39 in the gauge does not illuminate
(no error message), then the battery charger can be connected.
➥ If the red warning light 39 in the gauge does illuminate
(error message), do not connect the battery charger and have it
checked out by an authorized service center
2. If the insulation has been checked, switch the motor isolating switch off
again, turn the ignition key to position „0“ and remove the ignition key.
3. Connect the power plug C of the battery charger with the power source
(power cable length of the battery charger 5 m).
➥ The battery starts charging automatically.
➥ The battery is being charged.
➥ The start-up protection in the vehicle is activated
(from serial number 357 00 0050)
Charging is automatically terminated as soon as
the battery is fully charged.
As long as the battery charger is not disconnected from the mains, a
specified charge retention will occur and the start-up protection in the
vehicle will remain activated.
Power cable version 1 phasing out starting in 2017.
Standard
Variant 1
Standard
Variant 2
Option

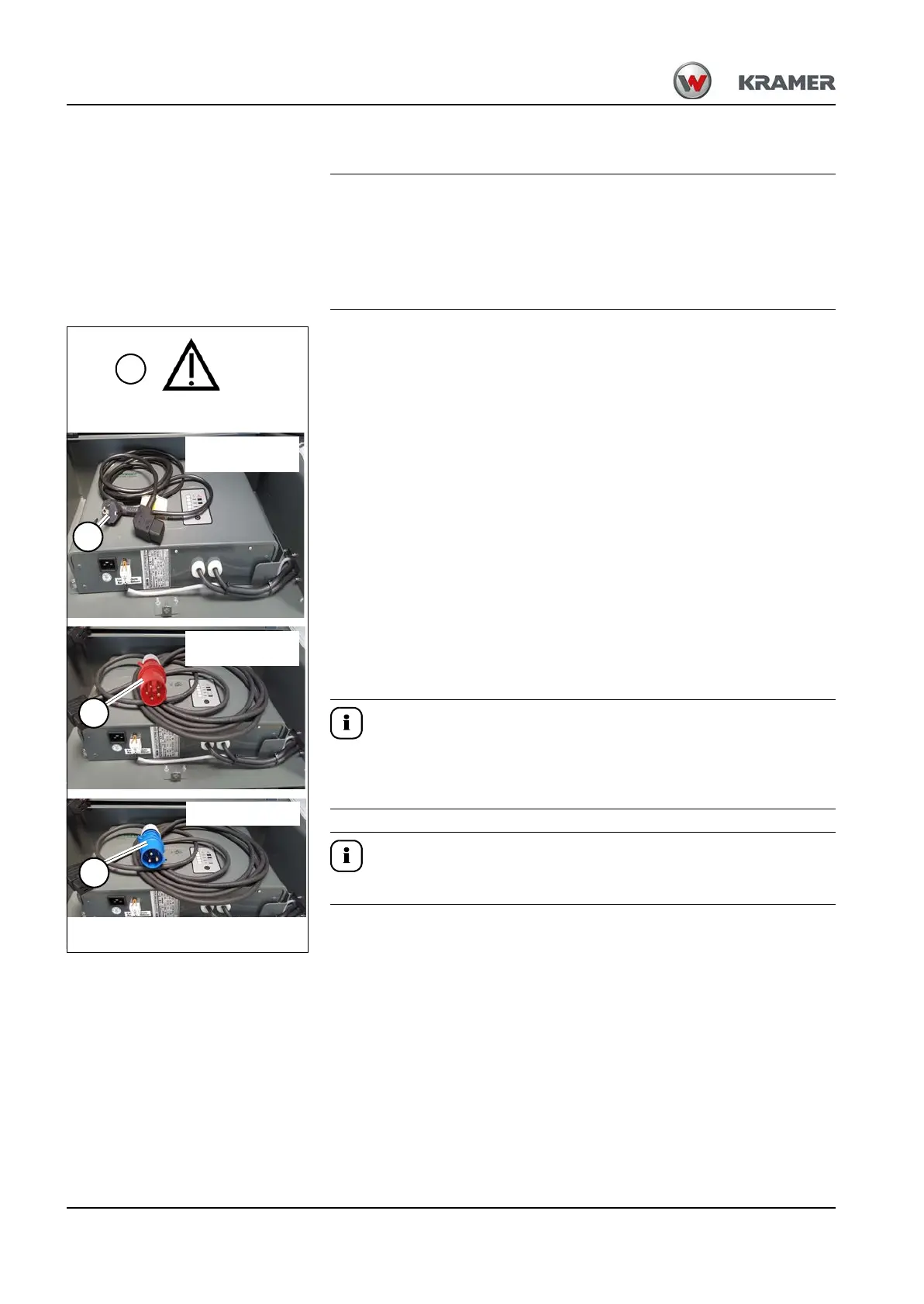

Fig. 220
39
C
C
C
