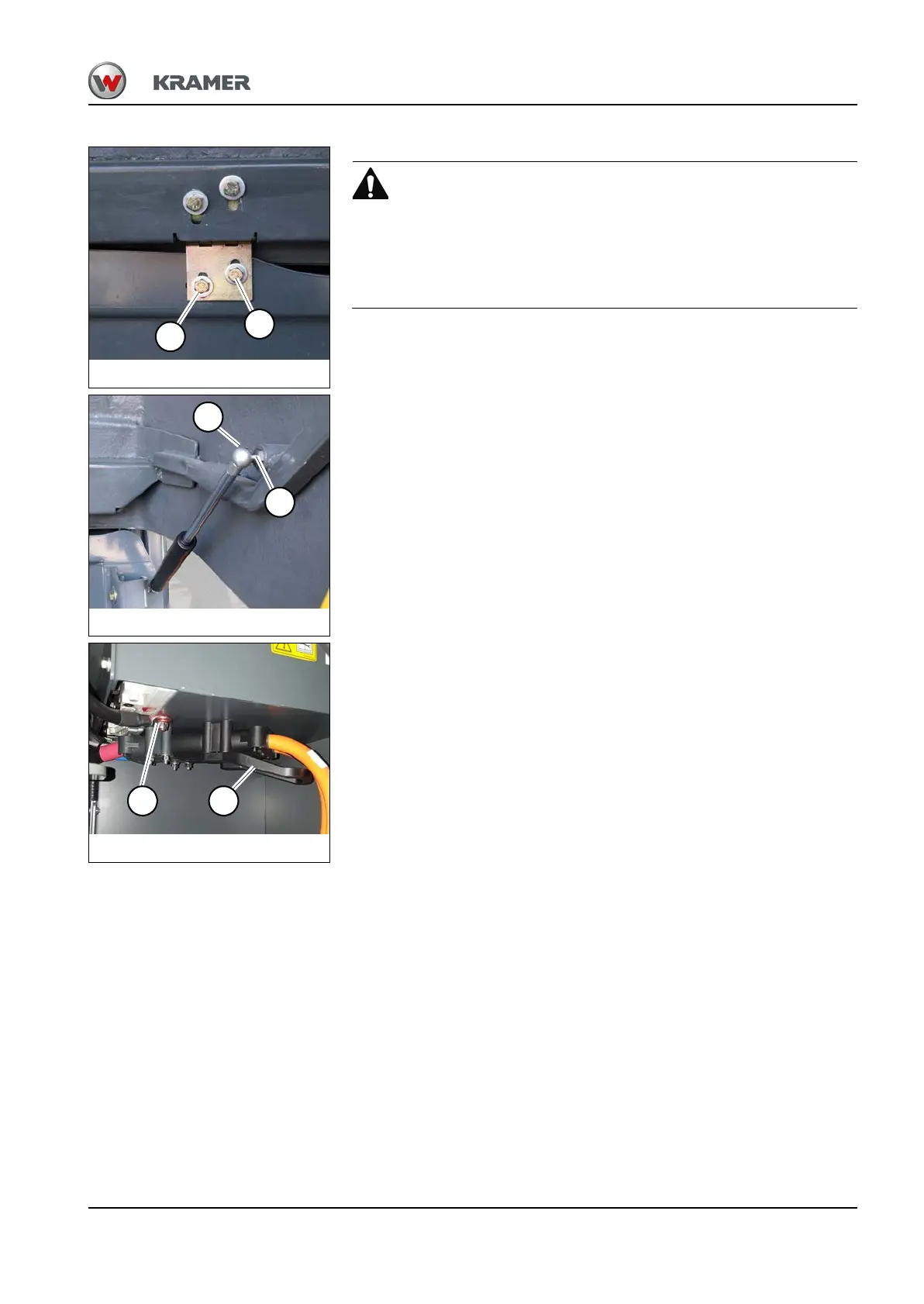

Installing the battery cover plate
CAUTION
Risk of injury from loosened battery cover plate.
Persons can be injured by the loosened battery cover plate falling off.
► Secure the battery cover plate against falling off, until the hinges have
again been screwed to the frame.
1. Secure the battery cover plate against falling off.
2. Place the battery cover plate onto the machine.
3. On the hinges of the battery cover plate, manually screw in two screws
A each in the threads in the rear wall of the cabin.
4. Place gas struts on the left and right on the supports B on the battery
cover plate and secure with safety pin C.
5. Align the battery cover plate.
6. Firmly tighten the screws A on the hinges.
Rectification
1. Tighten the connection B (M8).
2. Connect the battery connector A.
3. Close the battery cover plate.
4. Turn on the machine and test the lighting and machine functions.
Fig. 240
A
A
Fig. 241
C
B
Fig. 242
AB
