Wacker Neuson KRAMER 5055e User Manual

BA 357-00 * 3.0 * 35700_09_Technische_Daten.fm 9-13
Technical data 9

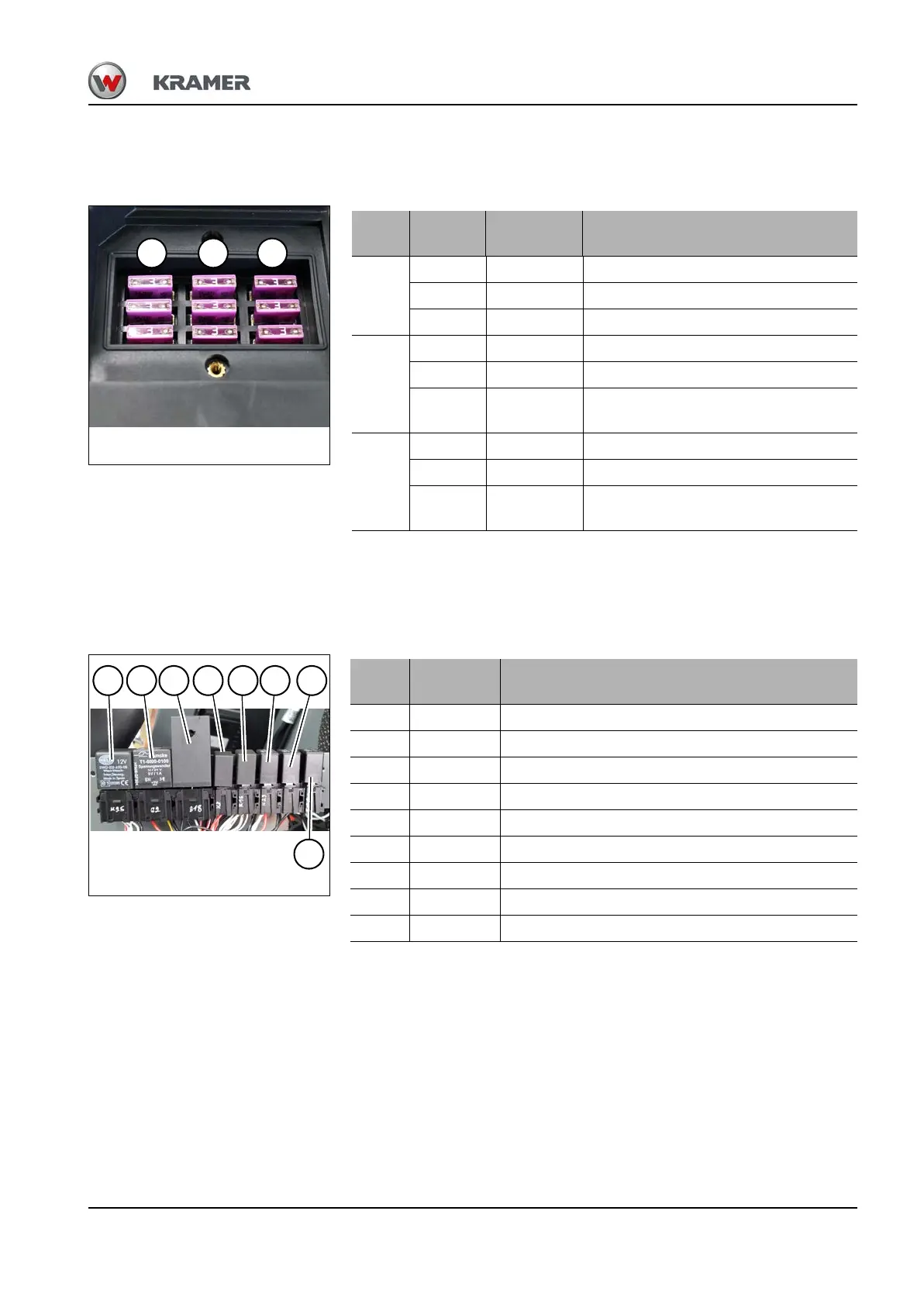

Road traffic module
The fuses are located in the fuse box under the cover.
Relays
The relays are located under the trim of the control lever
console on the right.
Fig. 273
1 2 3
Item Fuse
Rated
current (A)
Protected circuit
1
4F6.1 3 Brake light (left)
5F5.3 3 Low beam (right)
5F5.1 3 Low beam (left)
2
4F6.2 3 Brake light (right)
4F5.1 3 Turn indicators (left)
4F5.2 3
Turn indicator (right),
indicator light hazard warning lights
3
5F5 3 Sensory mechanism
5F4.1 3 Parking and rear light (right)
5F4 3
Parking and rear light (left)
search-light switch
Fig. 274
1 2 3 4 5 6 7
8
Item
Switching
relay no.
Protected circuit
1 K025 Switching relay washer-system interval
2 G002 Voltage transformer
3 B018 Buzzer
4 K003 Switching relay for backup warning system
5 K016 Lock switching relay (3rd control circuit)
6 K023 Wiper switching relay (1st speed)
7 K005 Switching relay buzzer
8 K014 Switching relay search light / parking light
– K117 Main contactor (in the motor isolating switch)
