9-12 BA 357-00 * 3.0 * 35700_09_Technische_Daten.fm
9 Technical data

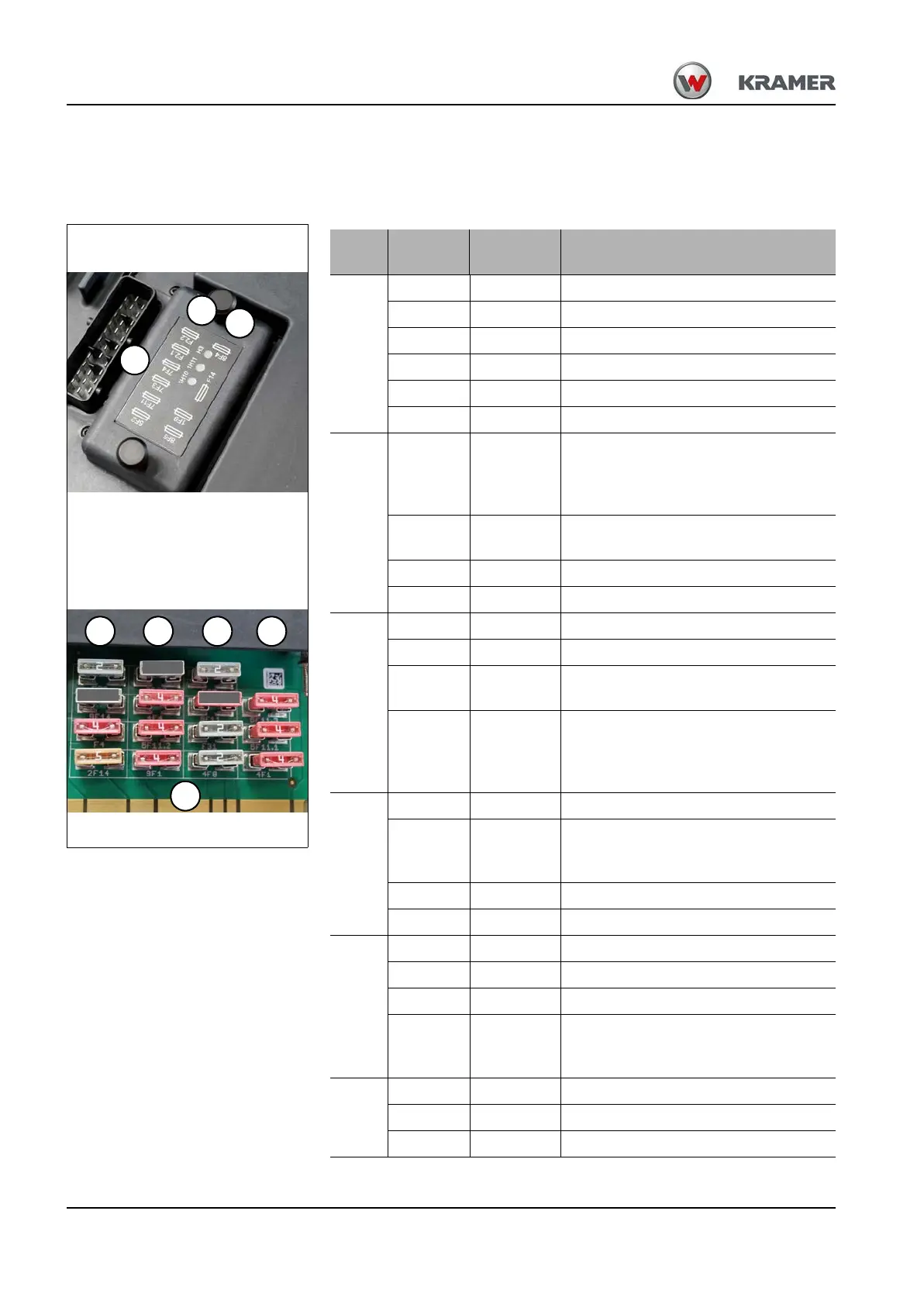

Power electronics
The fuses are located in both fuse boxes A and B of the
power electronics under the covers.
Item Fuse
Rated cur-
rent (A)
Protected circuit
A1
5F2 10 DC/DC-converter (iCE-PIO)
7F11 – Not assigned
7F3 10 Voltage converter (80V/12V)
7F4 – Not assigned
F2.1 – Not assigned
F2.2 – Not assigned
A2
8F5 3
Internal charging connection /
(charging connection on the
drive control and
battery discharging monitoring)
1F9 3
Electronics control (control and
control elements of the drive control)
F14 30 Heating
8F4 10 DC/DC-converter
B1
F29 2 Standby consumer
9F14 – Not assigned
F4 4
Main contactor, valve timing,
load stabilizer, front axle steering
2F14 5
Spring-loaded brake, valve timing:
SWP, 3rd control circuit, hose burst
valve, load stabilizer,
differential lock, 4-wheel drive
B2
9F33 – Not assigned
4F4 4
Reversing alarm, indicator lights: front
axle steering, forward machine travel,
reverse machine travel
5F11.2 4 High beam (left)
9F1 4 Brake light (right)
B3
F30 2 Internal control
5F11 – Not assigned
F31 2 Sensory mechanism
4F8 2
Speed range lighting switch,
indicator light 4-wheel drive, front
socket relay, buzzer control
B4
5F11.3 4 High beam (right)
5F11.1 4 Brake light (left)
4F1 4 Hydraulic fan
