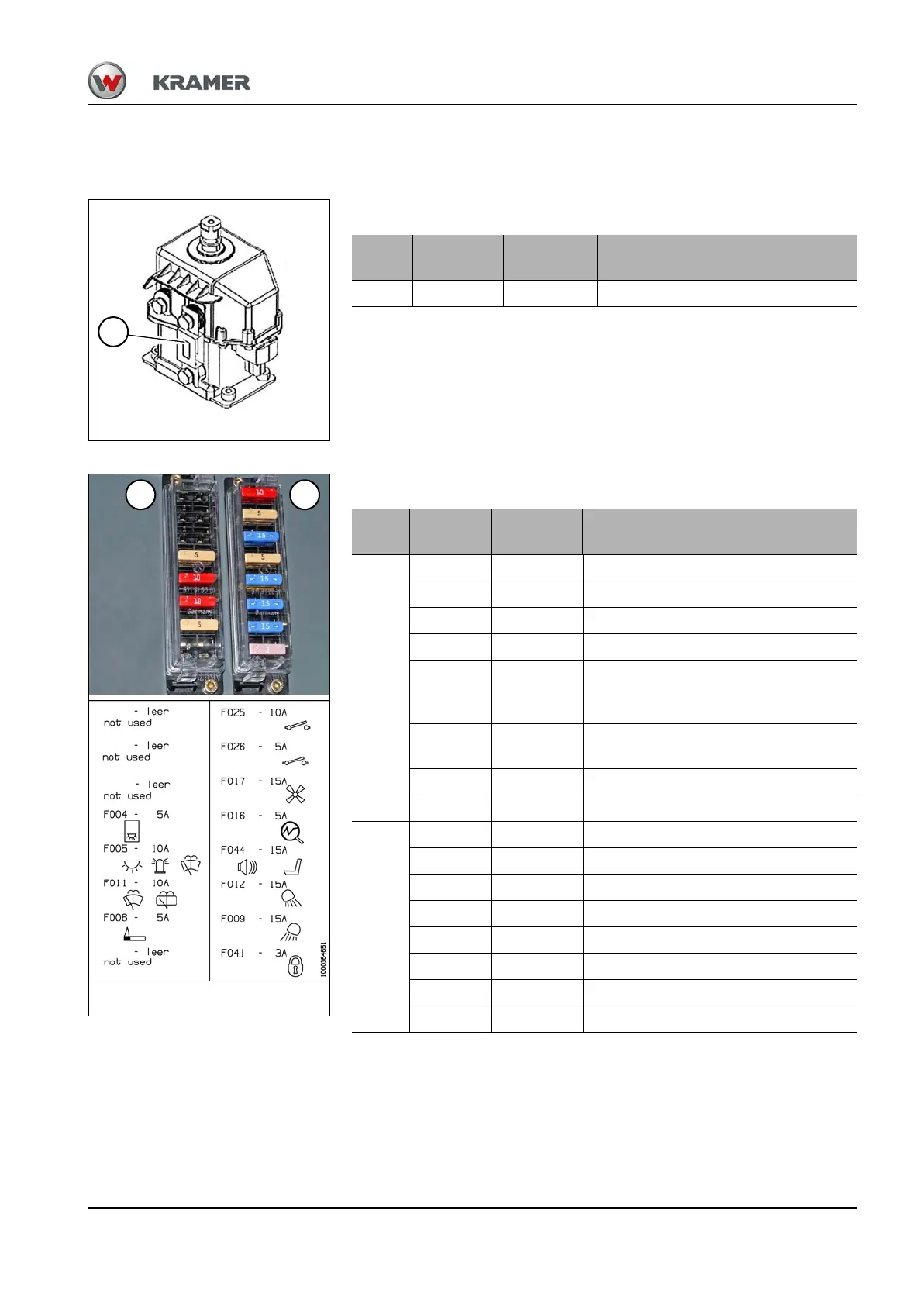

Technical data 9
Fuses
Master fuse
The master fuse is located on the motor isolating switch.
Fuse panel
The fuse panel is located on the right on the control lever console.
Item Fuse
Rated
current (A)
Protected circuit
1 F001 425 Main fuse (cabin supply)
Item Fuse
Rated
current (A)
Protected circuit
1
Not assigned
Not assigned
Not assigned
F004 5 Search lighting switch, radio
F005 10
Interior light,
rotating beacon,
window wiper interval relay
F011 10
Front window wiper
rear window wiper
F006 5 12 V socket (cigarette lighter)
Not assigned
2
F025 10 Front power outlet
F026 5 Front power outlet
F017 15 Heating fan
F016 5 Diagnosis connector supply
F044 15 Radio / operator seat
F012 15 Rear working light
F009 15 Front working light
F041 3 Drive interlock
