Adjusting the mirror on the left
1. Turn the mirror on the left outward with the long side.
When making preliminary adjustments, ensure that the mirror bracket
is turned far enough to the front (about 45°) to avoid touching
the door window.
2. Adjust the left rearview mirror:
- The outer edge of the machine must be visible on
the inside X of the mirror.
- The horizon must be visible at the upper edge Y.
- At the lower edge Z, the visible area of the road must be as close as
possible to the machine.

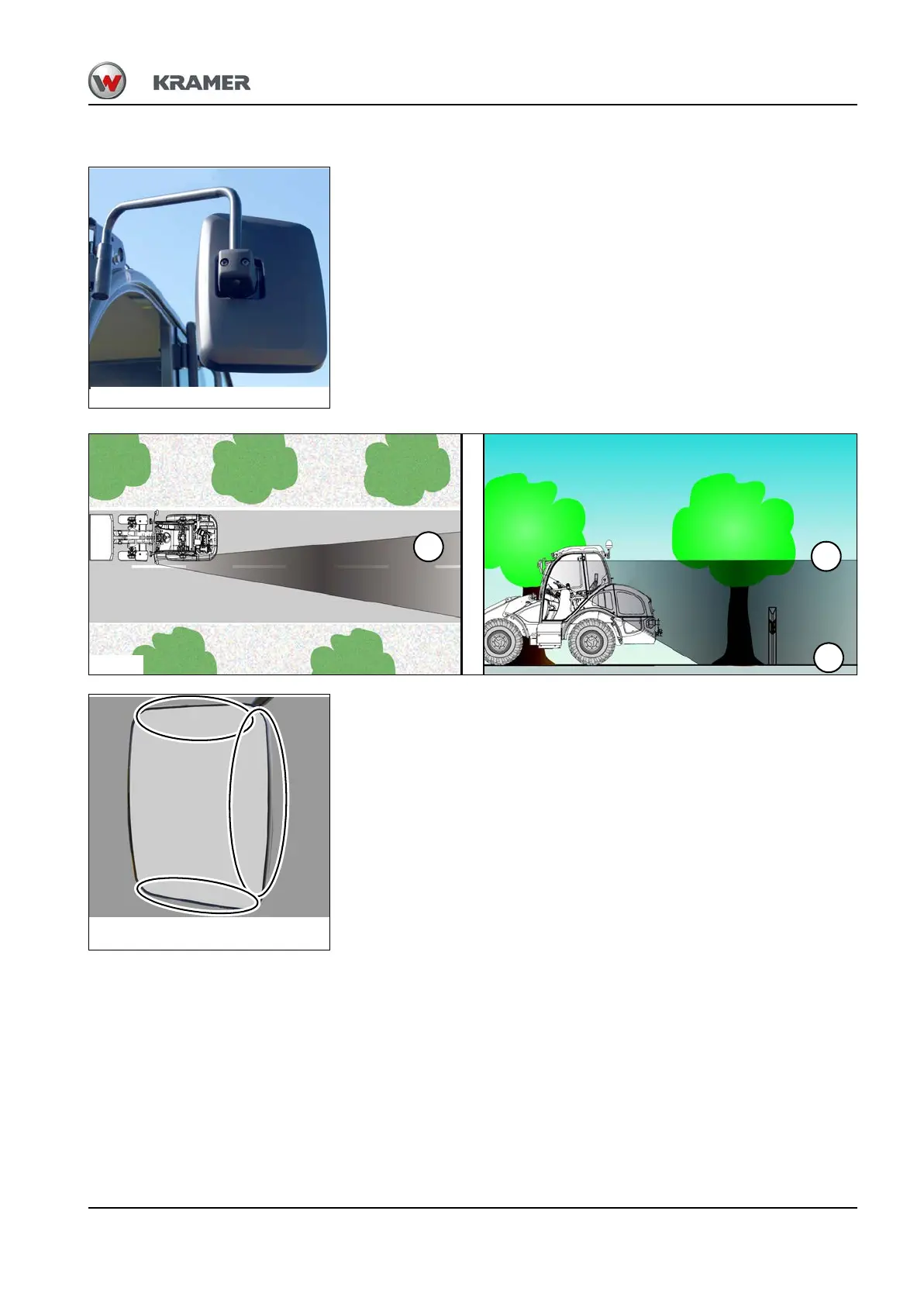

Fig. 65
Fig. 66
X
Y
Z
Fig. 67
X
Y
Z
