W&T The Windows COM port redirector

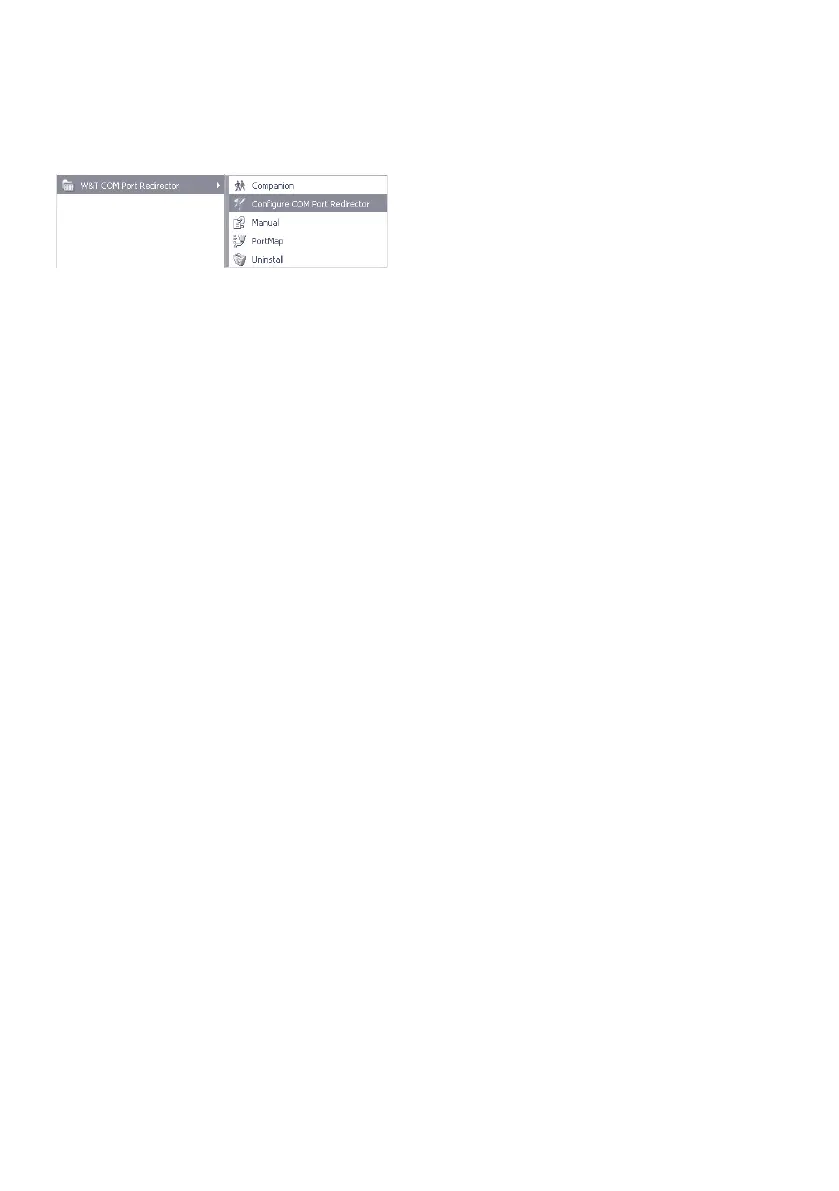

ver, a link to the conﬁguration tool in the Windows Start menu

under W&T COM Port Redirector is created.

15�2�2 Uninstalling the W&T COM Port Redirector

The W&T COM Port Redirector is uninstalled using Windows

software administration. Start the Software applet in the

control panel and there select the entry W&T COM Port Redi-

rector. Clicking on the Remove button removes the COM Port

Redirector from the system.
