W&T Box-to-Box mode
Subject to error and alteration
15�1�4 Sampleconfigurations for Box to Box mode
Box-to-Box Master Box-to-Box Slave
SETUP Port 0
TCP/IP Mode
Box to Box
Slave Port
Slave IP address
172.016.231.005
8000
IP address: 172.16.231.8
Port number of Port A: 8000
SETUP Port 0
TCP/IP Mode
IP address: 172.16.231.5
Port number of Port A: 8000
Intranet /
Internet
...
...
...
...
...
UART Setup
Baud
Parity
Data Bits
Stopbit
Handshake
...
...
...
...
...
UART Setup
Baud
Parity
Data Bits
Stopbit
Handshake

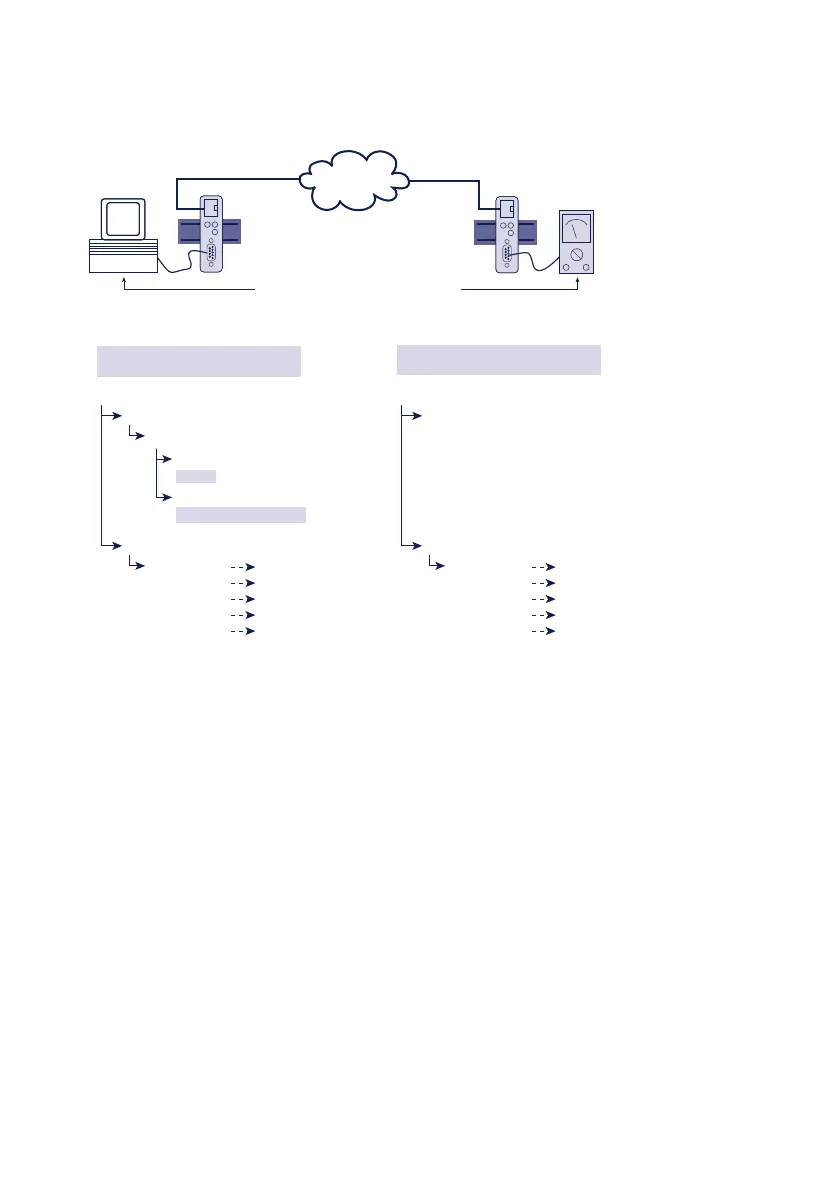

Serial connection tunneled
through the network
The address parameters of the slave as well as any activation
of TLS encryption are configured only on the master Com-Ser-
ver. The serial transmission parameters (baud rate, data bits
etc.) and the optional use of the packet options must on the
other hand be set in both Com-Servers to conform with the
connected devices.
