W&T Mode SLIP router

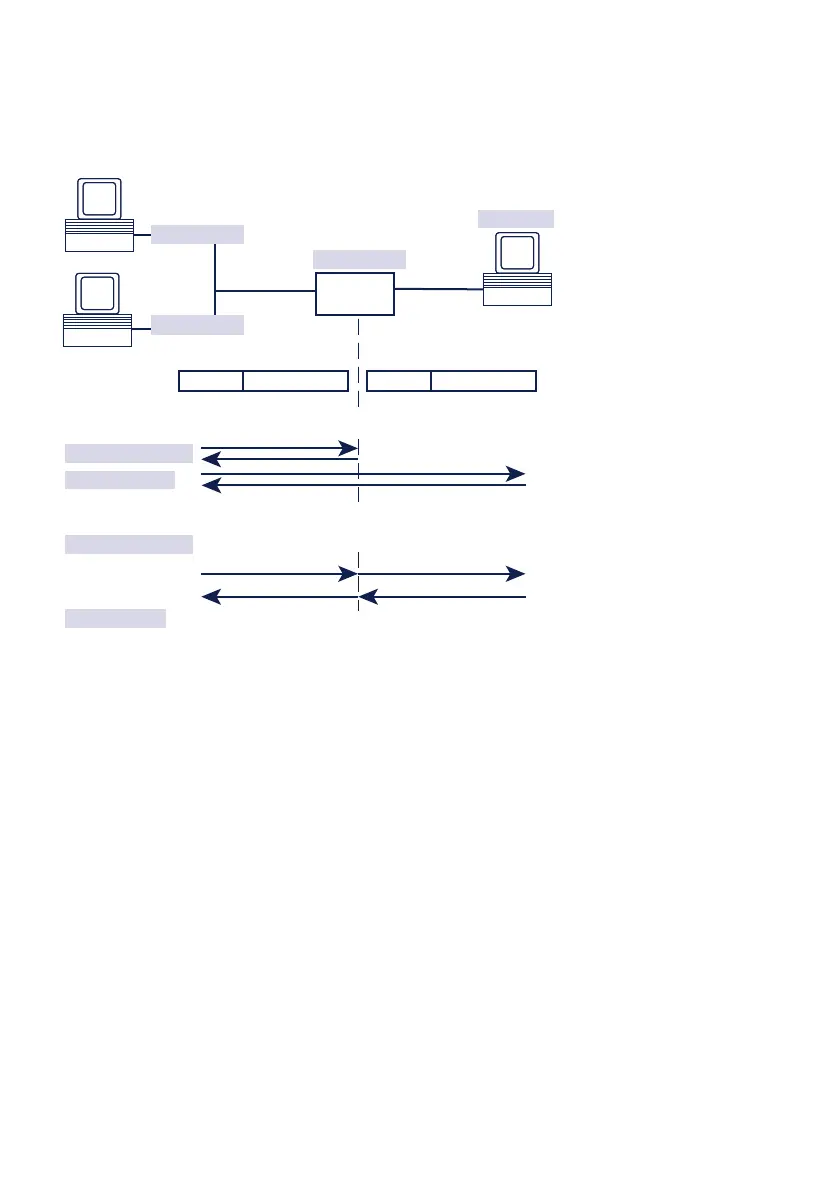

The following sketch shows the various ways of processing
the IP packets depending on the SLIP-Net Routing parameter.
Com Server
Ethernet
RS232
Paketrahmen:
172.16.231.2
172.16.231.3
172.16.231.1
192.1.1.12
ping 192.1.1.12
ping 172.16.231.1
= 192.1.1.12
ping 172.16.231.1
= 172.16.231.1
SLIP IP datagramEthernet IP datagram
= 192.1.1.12= 172.16.231.1
Destination IP:
Source IP:
ping 192.1.1.2
This IP address is not routed!
... r SLIP Router r Net Address = 192.1.1.0 / SLIP-Net Routing = 1
... r SLIP Router r Net Address = 192.1.1.12 / SLIP-Net Routing = 0
1
Access to the network port of a Com-Server functioning
as a SLIP router can take place only from a computer
located in the same subnet. In the above example, this would
mean that access via Telnet, browser or ping to the Com-Ser-
ver in Ethernet 1 must be made from a computer also located
in Ethernet 1.
