Wasp WLS9600 User Manual

Setup
6 WLS9600
Installing the Interface Cable

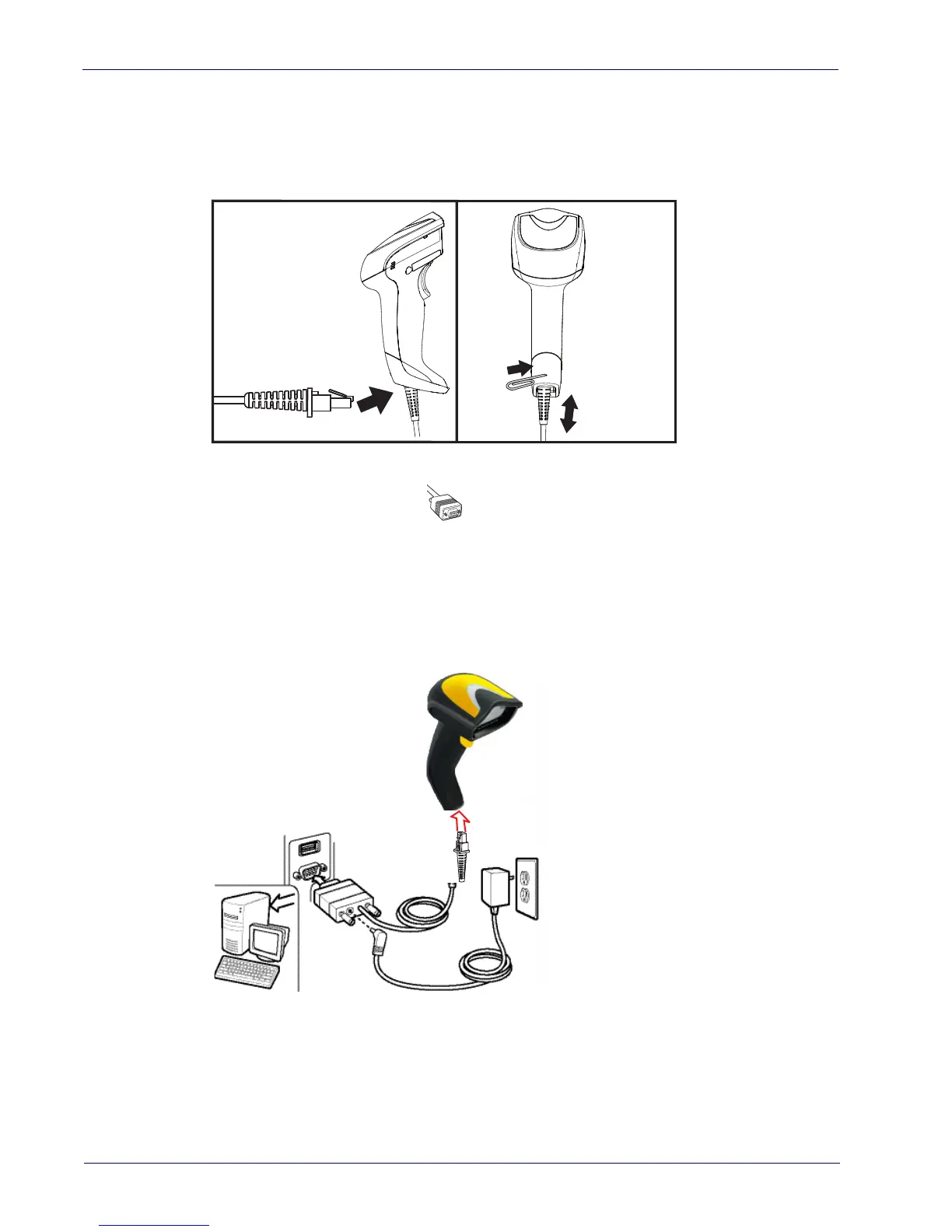

For Corded versions, connect the reader cable by inserting the cable into the handle as shown in
Figure 1. To remove it, insert a paper clip into the release aperture, then unplug the cable.
Figure 1. Connect/disconnect the cable
RS-232 Serial Connection
Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the
RS-232 cable as shown in Figure 2. If the terminal will not support POT (Power Off the
Terminal) to supply reader power, use the approved power supply
(AC Adapter). Plug the AC
Adapter barrel connector into the socket on the RS-232 cable connector and the AC Adapter
plug into a standard power outlet.
Figure 2. RS-232 Connection

Wasp WLS9600 Specifications

General

Product color	Black, Yellow
Housing material	-
Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
2D (matrix & stacked) barcodes supported	GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional
Power source type	USB
Cable length	1.8 m
Connectivity technology	Wired
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	181 mm
Width	71 mm
Height	100 mm
Weight	169 g
