Interleaved 2 of 5 (I 2 of 5) ENTER/EXIT PROGRAMMING MODE
144 WLS9600
I 2 of 5 Set Length 1
This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 1 is the
minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length
Mode. The length includes the barcode’s check and da
ta characters. The length can be set from
2 to 50 characters in increments of two.
Table 8 provides some examples for setting Length 1. See page 242 for detailed instructions on
setting this feature.

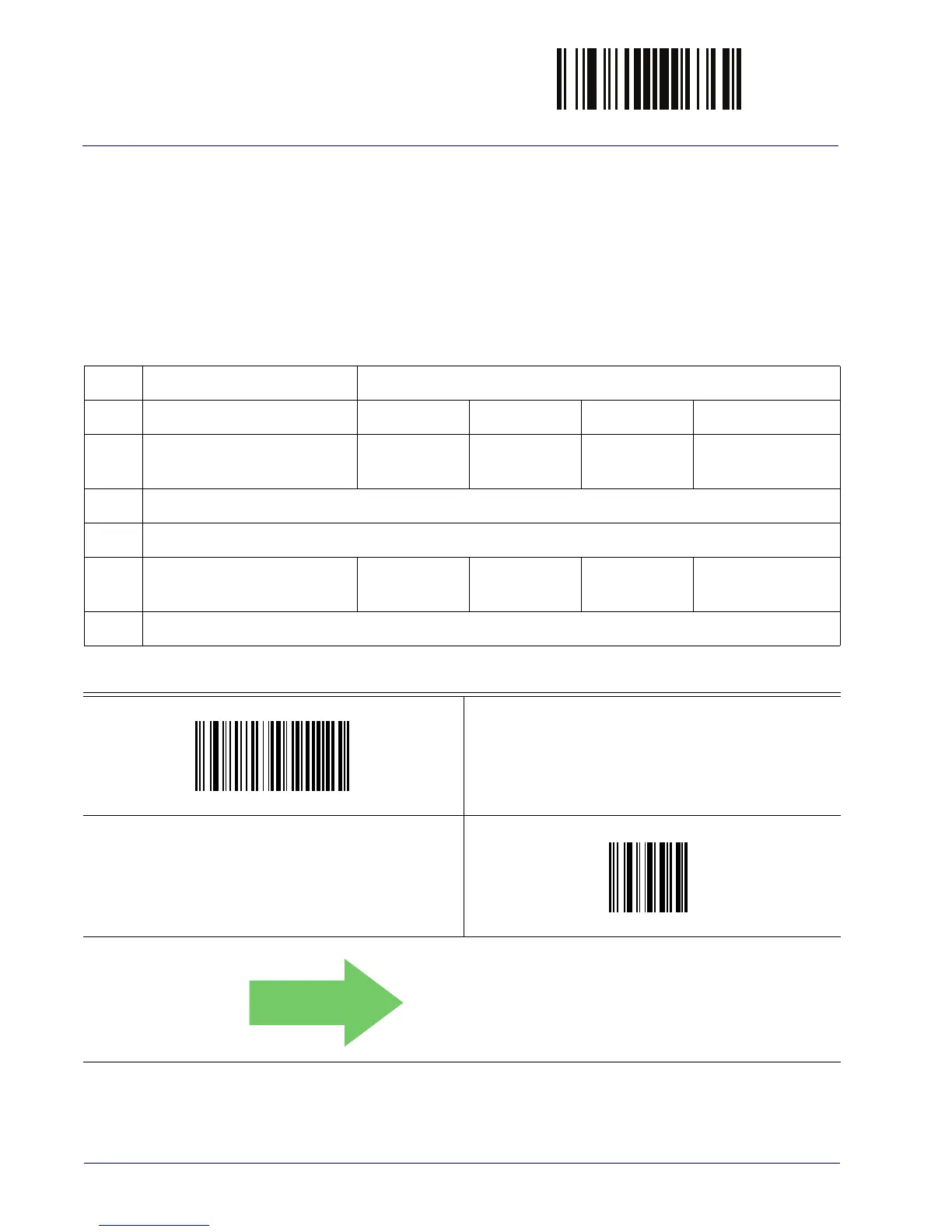

Table 8. I 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
2 Characters 6 Characters 14 Characters 50 Characters
2
Pad with leading zeroes to
yield tw
o digits
02 06 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT I 2 of 5 LENGTH 1 SETTING
5
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘2’ ‘0’ and ‘6’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select I 2 of 5 Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
sav
e the entry string. You can then start again at the begin-
ning.
CANCEL
DEFAULT
06 = Length 1 is 6 Characters

Wasp WLS9600 Specifications

General

Product color	Black, Yellow
Housing material	-
Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
2D (matrix & stacked) barcodes supported	GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional
Power source type	USB
Cable length	1.8 m
Connectivity technology	Wired
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	181 mm
Width	71 mm
Height	100 mm
Weight	169 g
