Wasp WLS9600 User Manual

Standard 2 of 5 ENTER/EXIT PROGRAMMING MODE
152 WLS9600
Standard 2 of 5 Set Length 2
This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 2 is
the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed
Length Mode. Length includes the barcode’s check and data characters.
The length can be set from 1 to 50 characters. A setting of 0 specifies
to ignore this length (only
one fixed length).
Table 11 provides examples for setting Length 2. See page 243 for detailed instructions on
setting this feature.

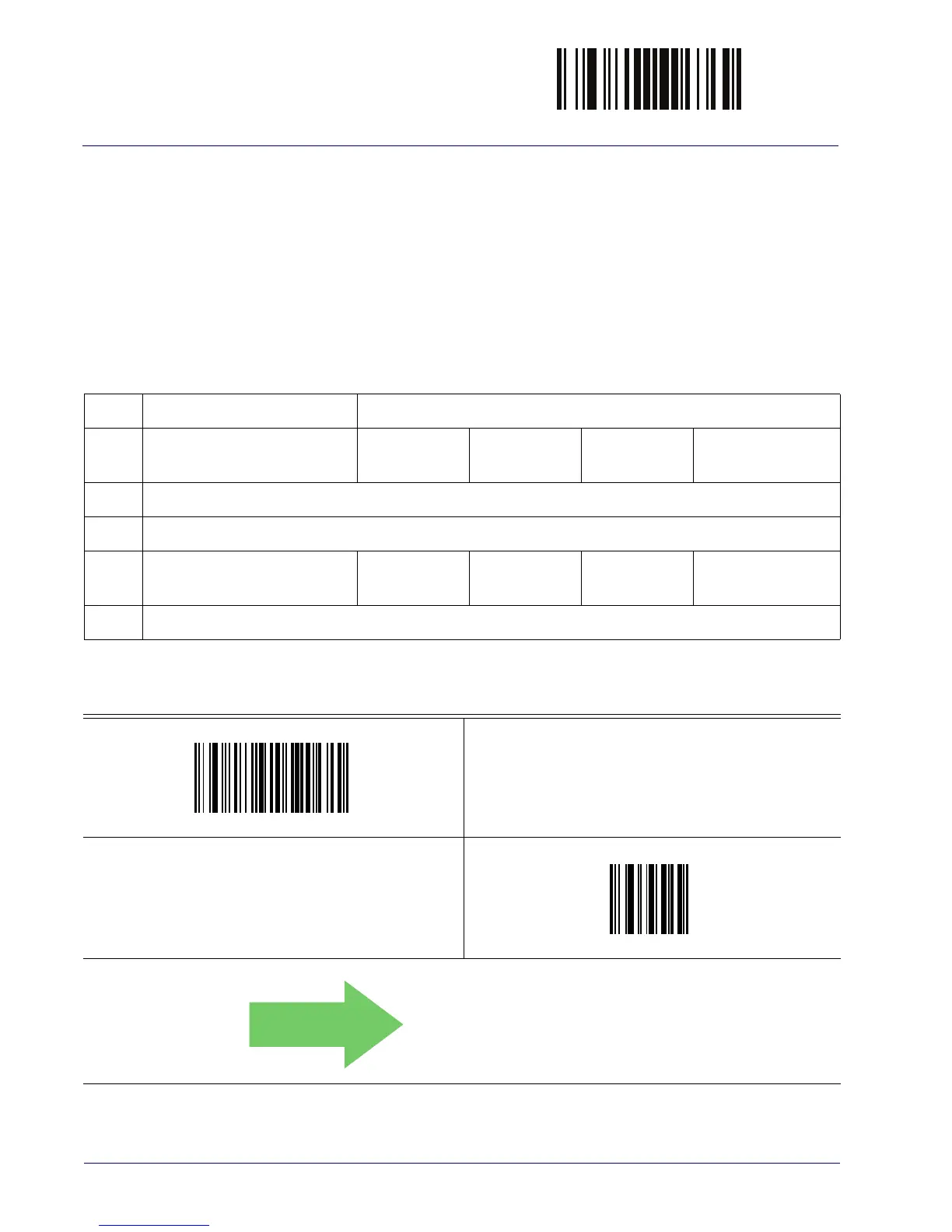

Table 11. Standard 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (pad with
leading ze
roes)
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT STANDARD 2 OF 5 LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Standard 2 of 5 Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
sav
e the entry string. You can then start again at the begin-
ning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters

Wasp WLS9600 Specifications

General

Product color	Black, Yellow
Housing material	-
Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
2D (matrix & stacked) barcodes supported	GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional
Power source type	USB
Cable length	1.8 m
Connectivity technology	Wired
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	181 mm
Width	71 mm
Height	100 mm
Weight	169 g
