To connect to the electricity source:
Recommendation: Use a line conditioner or an uninterruptible power supply (UPS)
for optimum long-term input voltage stability.
1. Connect the female end of the power cord to the receptacle on the rear panel of
the detector.

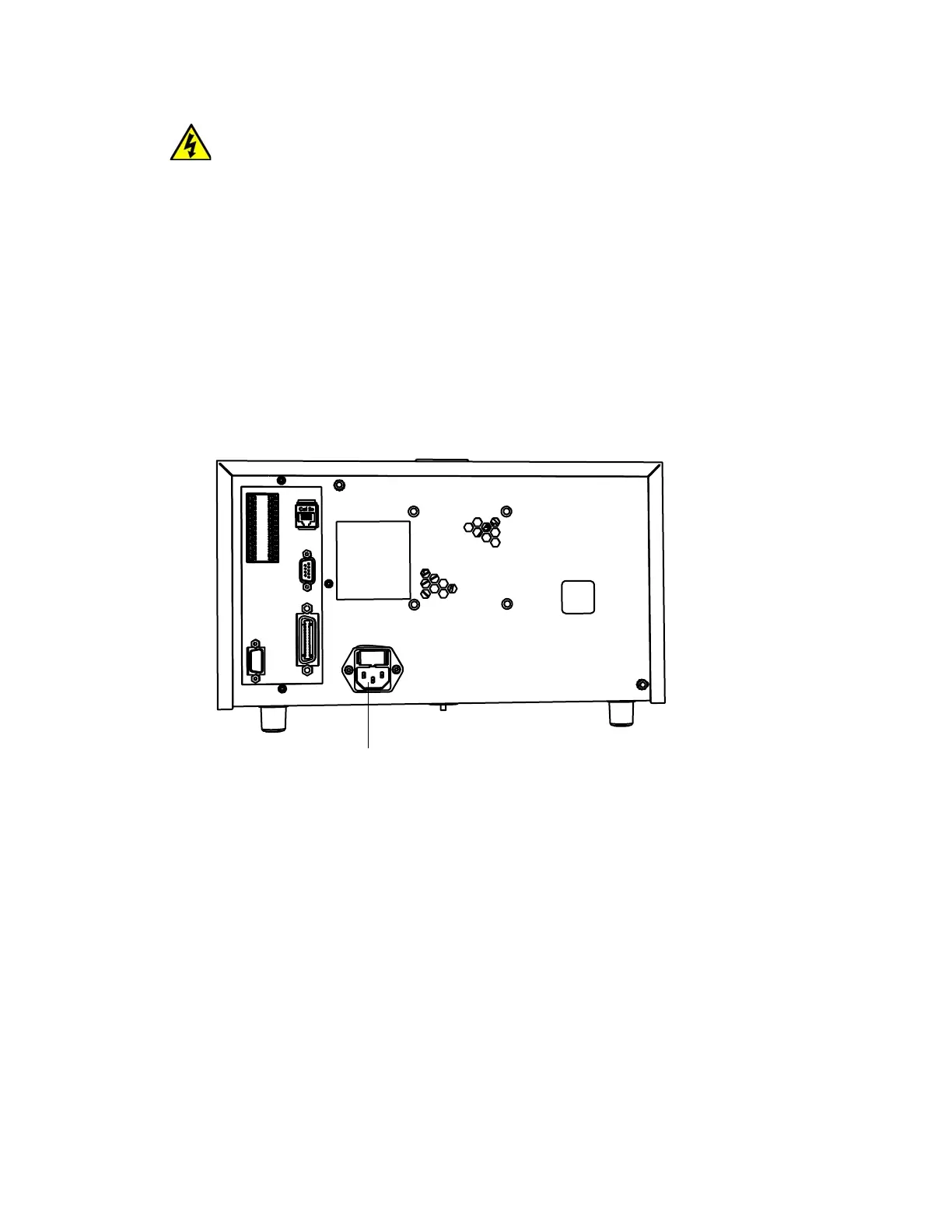

Figure 2–2: Location of power input on 2414 RI detector rear panel
2. Connect the male end of the power cord to a suitable wall outlet.
3. Press the power switch on the front door to power-on the detector.
Result: The detector runs a series of startup diagnostic tests while the lamp
LED blinks green. The lamp LED shows steady green when the lamp is ignited.
To replace a fuse, see “Replacing fuses” on page 95.
Warning: Avoid electrical shock:
• Use power cord SVT-type in the United States and HAR-type or better in
Europe. For other countries, contact your local Waters distributor.
• Power-off and unplug the detector before performing any maintenance on
the instrument.
• Connect the detector to a common ground.
