June 11, 2015, 715004754 Rev. A
Page 39
2.6 Connecting tubing and attachments
This section describes procedures for connecting the detector to these components:
• A column or another detector
• A waste container
•The drip tray
The tubing connections for the detector are behind the front door and to the left of the
keypad.

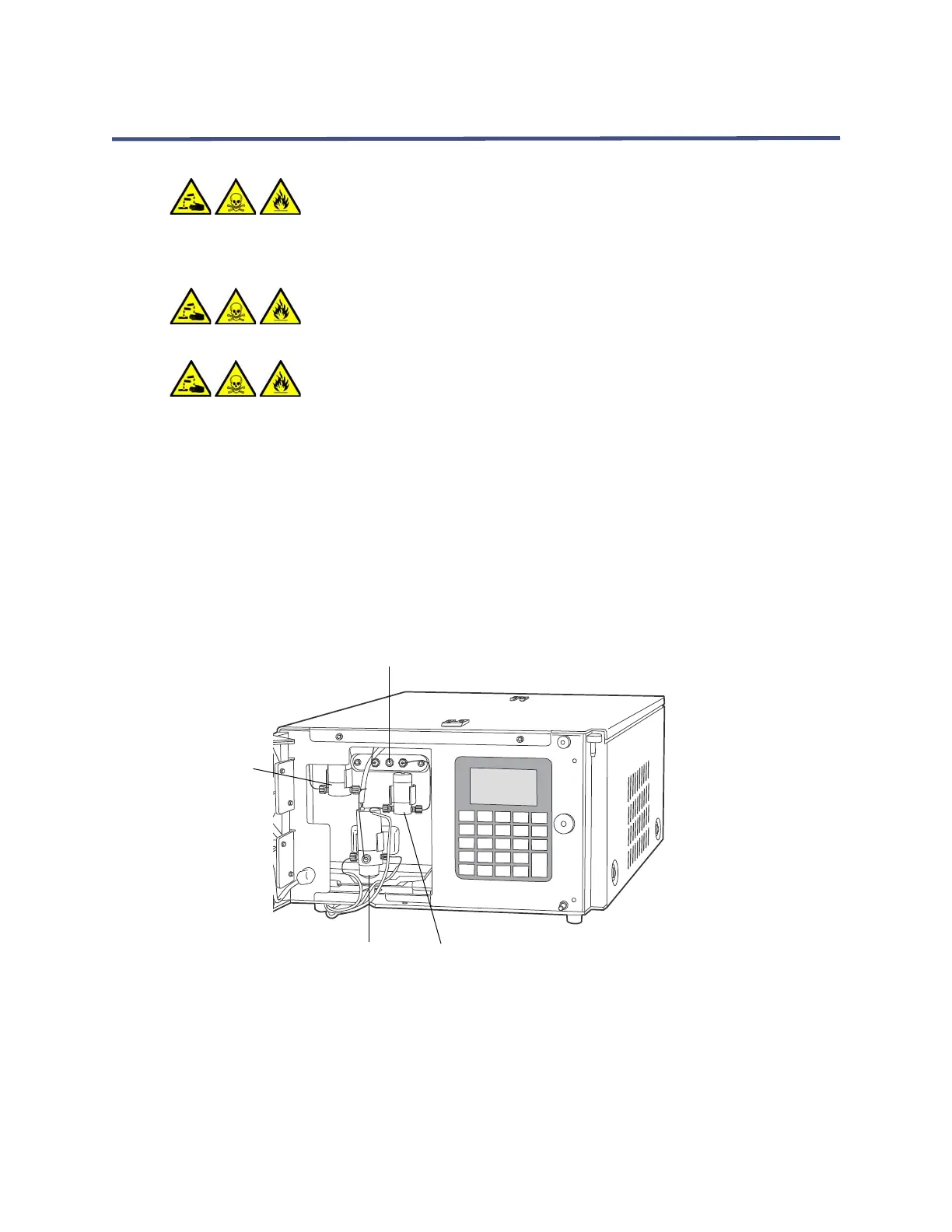

Figure 2–3: Tubing connections
2.6.1 Connect a column or second detector
Use only the insulating sample inlet tubing assembly supplied in the startup kit to
connect a column or second detector to the detector. This tubing assembly has been
Warning: To avoid the harmful effects of personal contact with
solvents, including inhalation, always wear chemical-resistant,
powder-free gloves and observe good laboratory practice when you
handle them. See the Material Safety Data sheets for the solvents
you use.
Warning: To avoid the harmful effects of personal contact with
leaking solvents, flush the detector with an appropriate miscible
solvent prior to installing or replacing fittings.
Warning: To avoid hazards associated with spilled chemicals,
ensure waste containers are large enough to accommodate analysis
requirements.
Solenoid
purge valve
Inlet line
Recycle
valve
Pressure
relief valve
