function screens of the home screen, press Next. These are the secondary functions in
410 mode:
•Sensitivity
• Filter type
• Time constant
• Voltage offset
• Enable/disable keypad entries

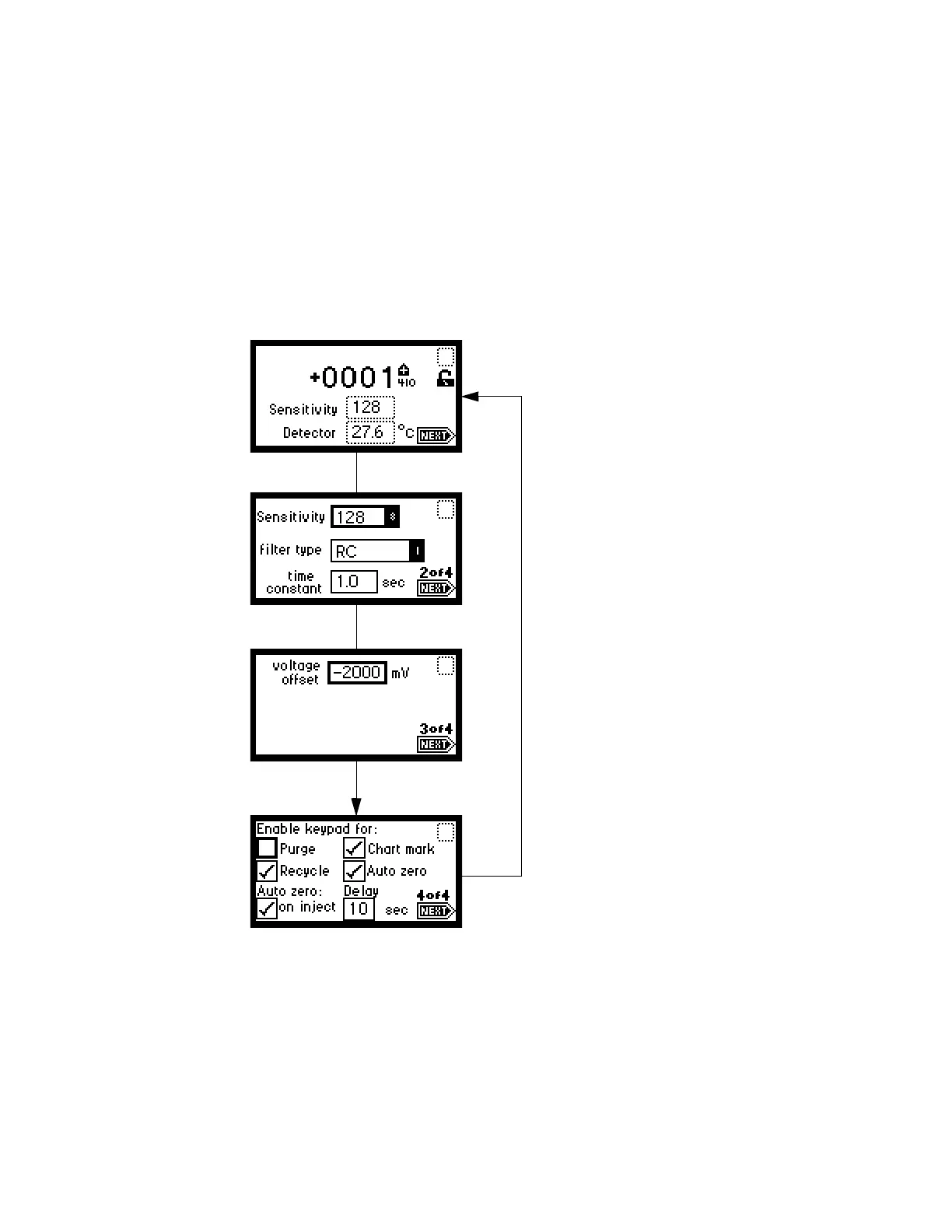

Figure 5–14: Secondary functions of the 410 mode home screen
From the home screen, you can access the following functions, either from the home
screen or by pressing the Next key:
• Sensitivity– The Waters 410-compatible Integrator Output signal is defined by
the following relationship:
Detector Out = [
Δn/(5 × 10
-3
RIU/Volt)] × SENS
Sensitivity settings are 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, and 1024 (default
is 4).
Home 1
Home 2
Home 3
Home 4
Press Next
Press Next
Press Next
Press Next
To Next Page
