Waters ACQUITY UPC2 - Page 48

November 16, 2016, 715004521 Rev. C
Page 48

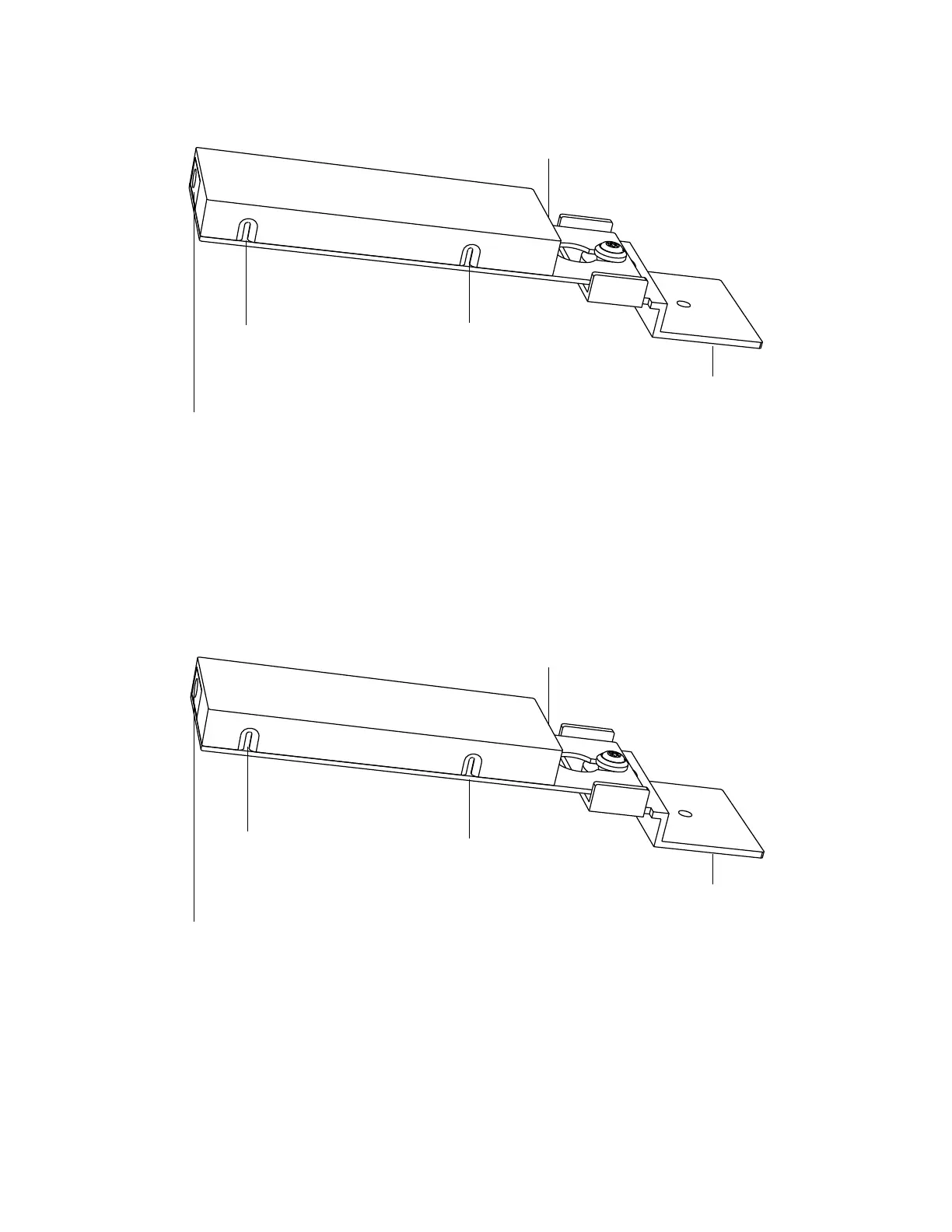

Figure 5–2: MS splitter (PEEK)
Figure 5–3: MS splitter (SST)
26 inch x .007 inch ID
From the column manager or PDA
4
29.5 inch x 50
µm ID
50 inch x .010 inch ID 59 inch x .005 inch ID
To the mass spectrometer
To the ccManager
From the makeup pump union or
ISM tee
(Note: The union is connected to
the 8-inch makeup pump
restrictor tube.)
1
2
3
Bracket
(Alternative: Remove this tubing to
connect a tool-free ECI (or APCI) probe
capillary from the mass spectrometer.)
29.5 inch x 50 µm ID
50 inch x .010 inch ID
67 inch x .004 inch ID
To the mass spectrometer
To the ccManager
From the check valve outlet
port on the 515 makeup
pump or, from the ISM tee
1
2
3
4
Bracket
(Alternative: Remove this tubing to connect a
tool-free ECI (or APCI) probe capillary from the
mass spectrometer.)
26 inch x .007 inch ID
From the column manager or PDA
