Waters ACQUITY UPC2 - Isocratic Solvent Manager Splitter

November 16, 2016, 715004521 Rev. C
Page 50

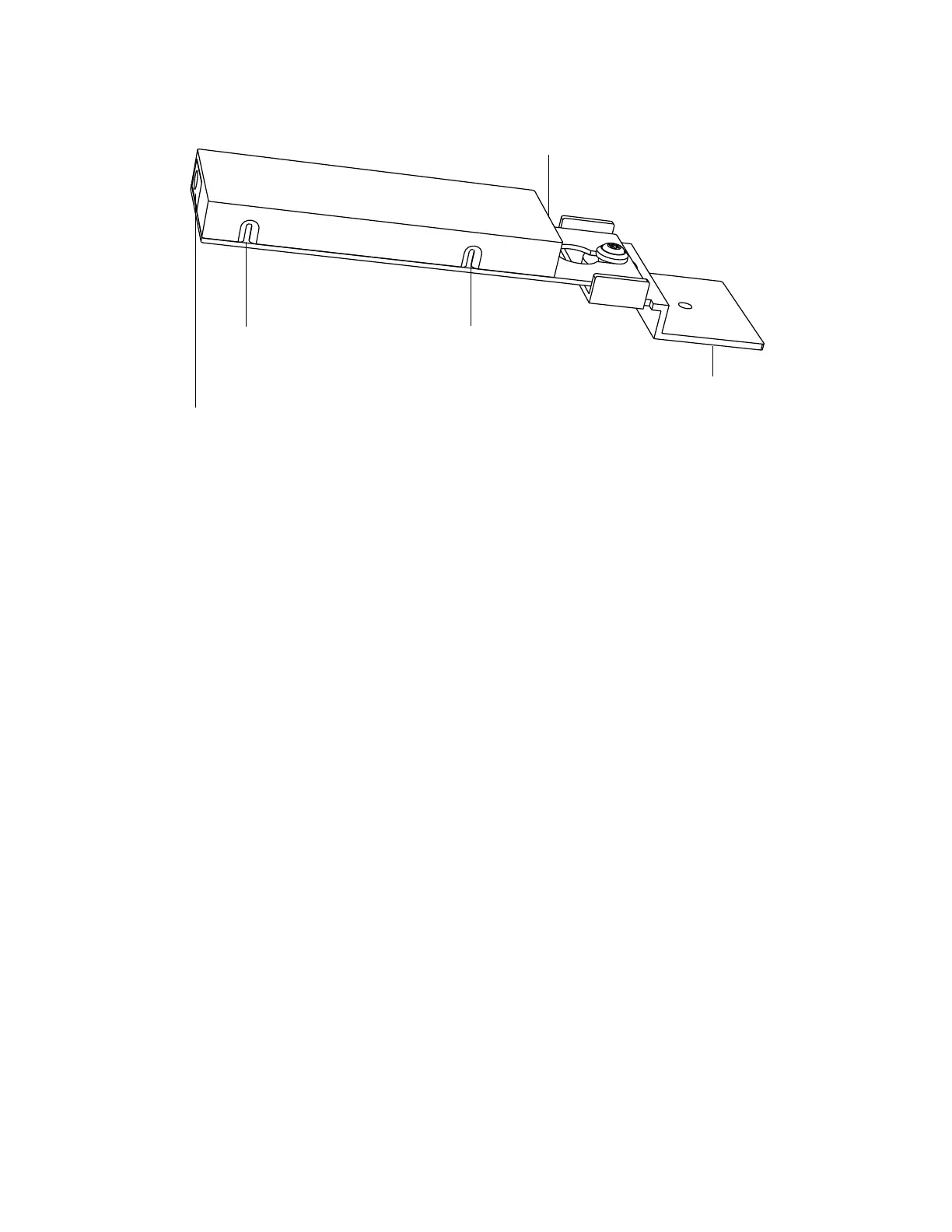

Figure 5–6: MS splitter (SST)
Requirement: The ABPR “health” check cannot be performed when a splitter is connected in the
solvent path. Temporarily isolate the flow cell's PDA-detector outlet from the inlet tee of the
ccManager.
5.1.3 Isocratic solvent manager splitter
You can adjust the amount of analytical flow diluted and diverted to the QDa detector. To do so, fit
the isocratic solvent manager (ISM) with a dual-detection or triple-detection flow-splitter kit.
See also:
•The ACQUITY QDa Detector Operator’s Overview and Maintenance Guide for more
information on how to configure your QDa detector.
•The ACQUITY Isocratic Solvent Manager Overview and Maintenance Guide for more
information on how to configure your ISM splitter.
29.5 inch x 50 µm ID
50 inch x .010 inch ID
67 inch x .004 inch ID
To the mass spectrometer
To the ccManager
From the check valve outlet port
on the 515 makeup pump or, from
the ISM tee
1
2
3
4
Bracket
(Alternative: Remove this tubing to
connect a tool-free ECI (or APCI) probe
capillary from the mass spectrometer.)
46 inch x .007 inch ID
From the CM-30S or PDA
