November 16, 2016, 715004521 Rev. C
Page 49
Requirement: The ABPR “health” check cannot be performed when a splitter is connected in the
solvent path. Temporarily isolate the flow cell's PDA-detector outlet from the inlet tee of the
ccManager.
5.1.2 Components of the core 4 splitter

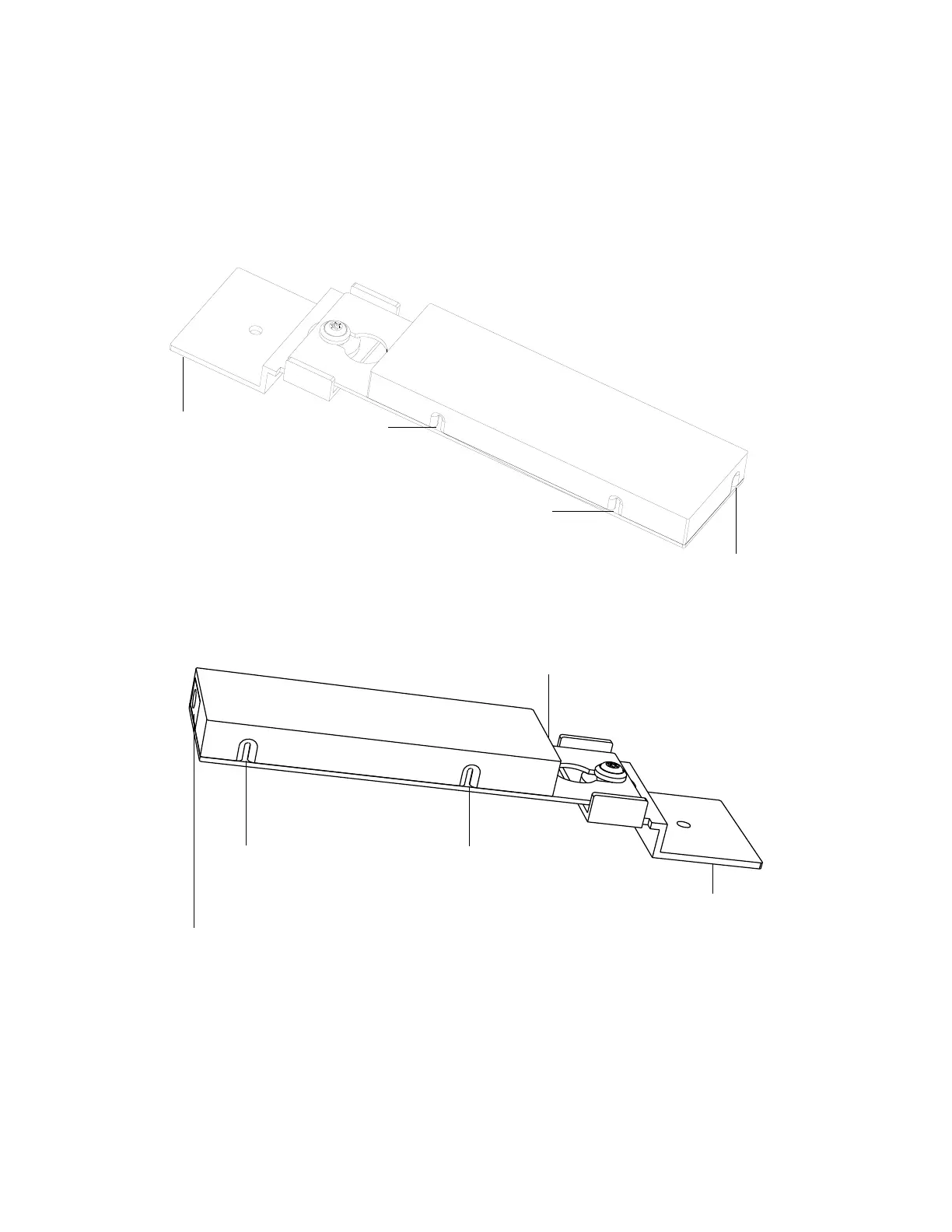

Figure 5–4: ELSD splitter
Figure 5–5: MS splitter (PEEK)
29.5 inch x
50
µm ID
46.0 inch x
.007 inch ID
50.0 inch x
.010 inch ID
To the ccManager
To the ELSD
From the CM-30S or
PDA
Bracket
1
2
3
46 inch x .007 inch ID
From the CM-30S or PDA
4
29.5 inch x 50
µm ID
50 inch x .010 inch ID 59 inch x .005 inch ID
To the mass spectrometer
To the ccManager
From the makeup pump union or
ISM tee
(Note: The union is connected to
the 8-inch makeup pump
restrictor tube.)
1
2
3
Bracket
(Alternative: Remove this tubing to
connect a tool-free ECI (or APCI) probe
capillary from the mass spectrometer.)
