November 16, 2016, 715004521 Rev. C
Page 55

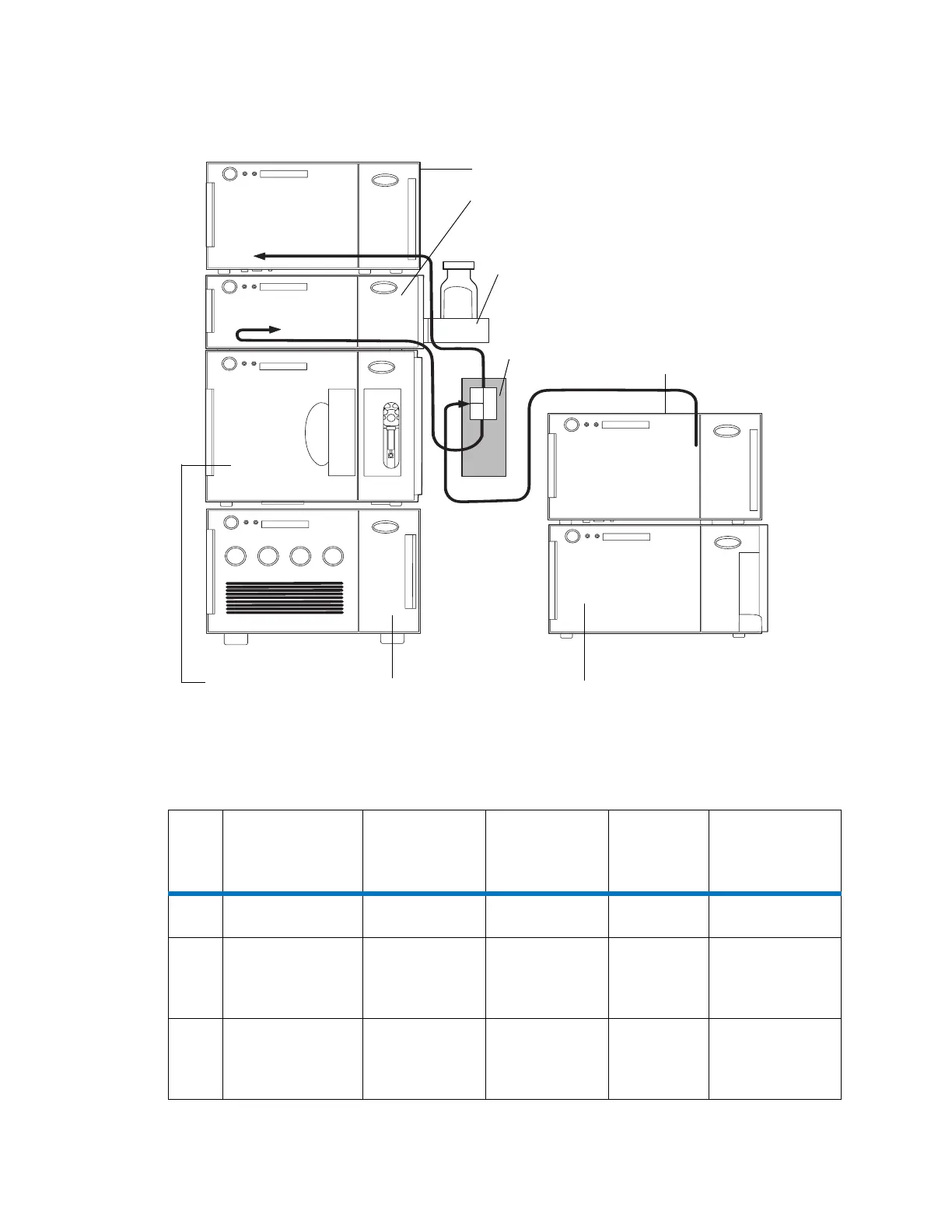

Figure 5–15: Core 1 configuration with a PDA, ELSD, and splitter
The following table describes final tubing connections and does not list factory-installed tubing
connections.
Table 5–1: Core 1 configuration with a PDA, ELSD, and splitter
Tube Tube description From To
ID
Notes:
recommended
trim length
1 29.5 inch PEEKsil
tubing
Splitter module ELSD 50 µm Do not trim
246inch
PEEK tubing
(pre-connected to
the splitter)
CM-A or PDA Splitter module 0.007 inches Do not trim more
than 23 inches
3 50 inch
PEEK tubing
(pre-connected to
the splitter)
Splitter module Left side of the
ccManager tee
0.010 inches Do not trim more
than 20 inches
ELSD
ccManager
Solvent
tray
ELSD splitter
mounted to the
SM-FL
PDA
SM-FL
CM-A
ccBSM
1
2
3
