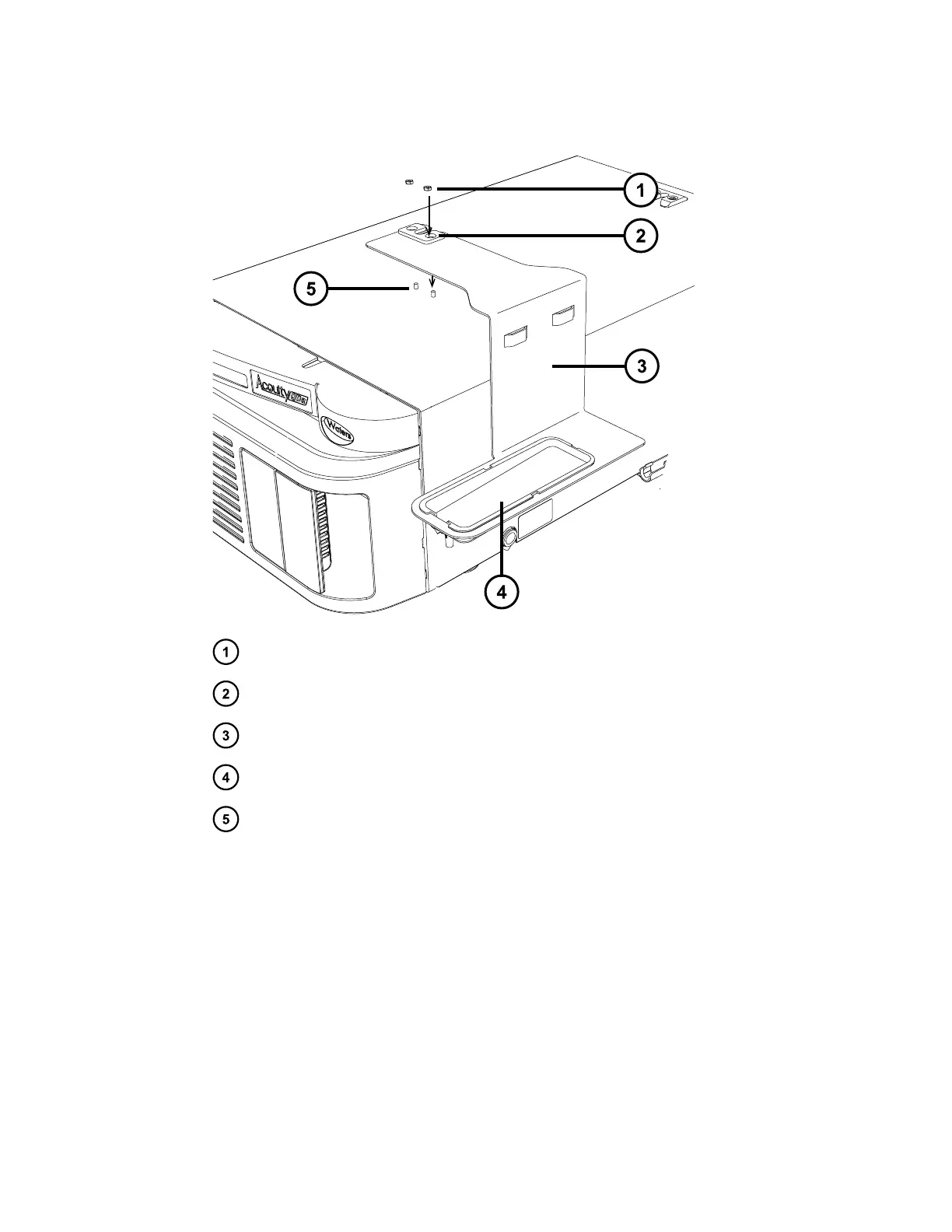

Figure E–2: Fitting the ACQUITY diverter valve mounting bracket
Two 1/4-inch hex nuts
Retaining stud holes
Diverter valve mounting bracket
Bracket drip tray
Retaining studs
6. Screw the hex nuts to the studs using the 1/4-inch hex nut socket wrench.
7. Fit the diverter valve to the mounting bracket by aligning the two hooks on the diverter
valve mount on the left side of the valve with the corresponding slots on the mounting
bracket, and lower the device until the hooks are securely in the place.
