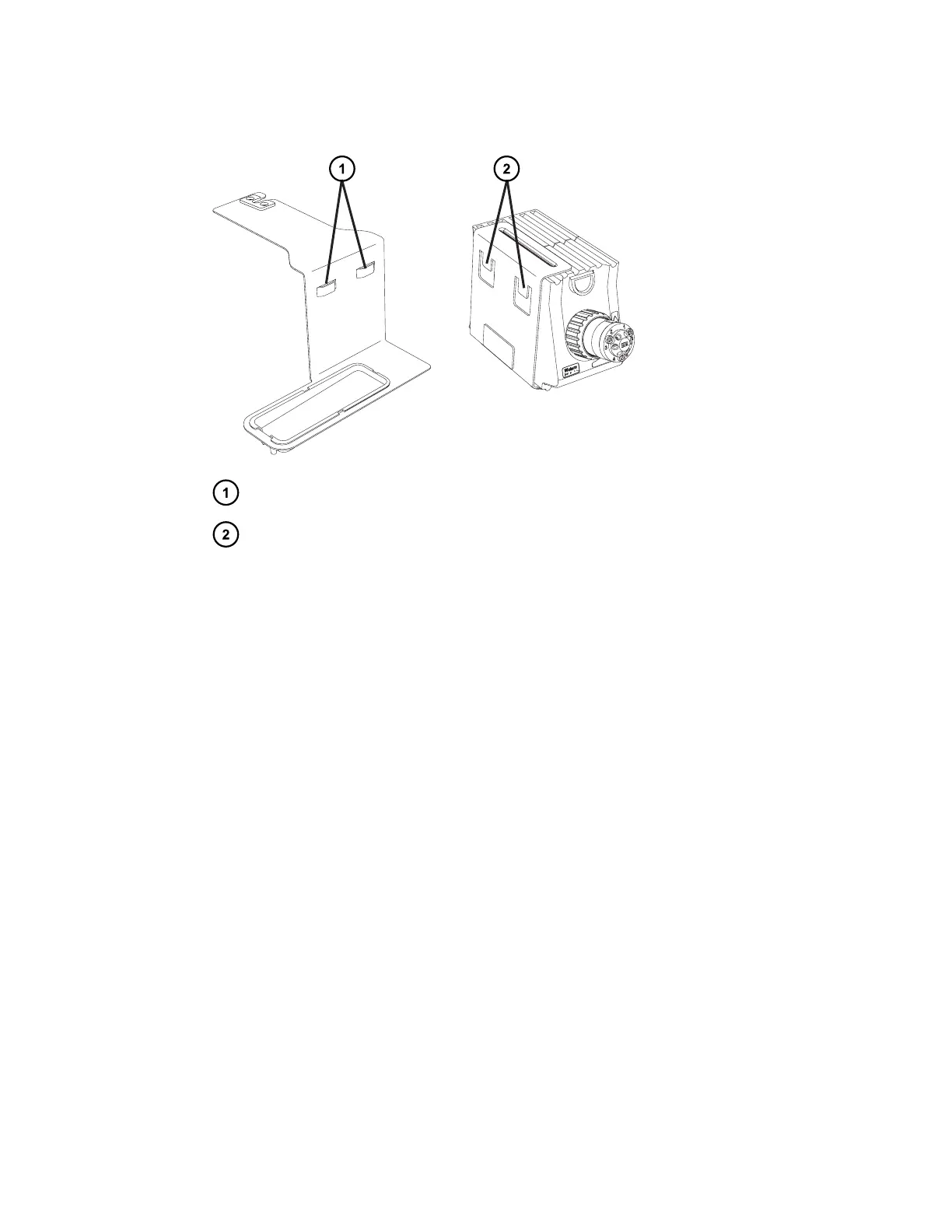

Figure E–3: Fitting the diverter valve onto the mounting bracket
Mounting bracket hook slots
Mount hooks
E.2.1.1 Removing the tubing guide
If a tubing guide is fitted to your instrument, you must remove the guide before fitting the diverter
valve assembly to the QDa detector. The tubing guide obstructs the placement of the diverter
valve.
Required materials
• 4-mm hex wrench
• #4 POZIDRIV screwdriver
To remove the QDa tubing guide:
1. Stop the flow from the LC and switch off the QDa detector.
2. Remove the source enclosure from the instrument (see Removing the source enclosure
from the instrument).
3. Use the 4-mm hex wrench to unscrew the six hex-cap retaining bolts securing the front
panel to the instrument case.
June 15, 2017, 715003956 Rev. F
Page 118
