Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
34
RFN 2.0 l gasoline
NOTE:
Position hose clamps so that no other hose can be
damaged!

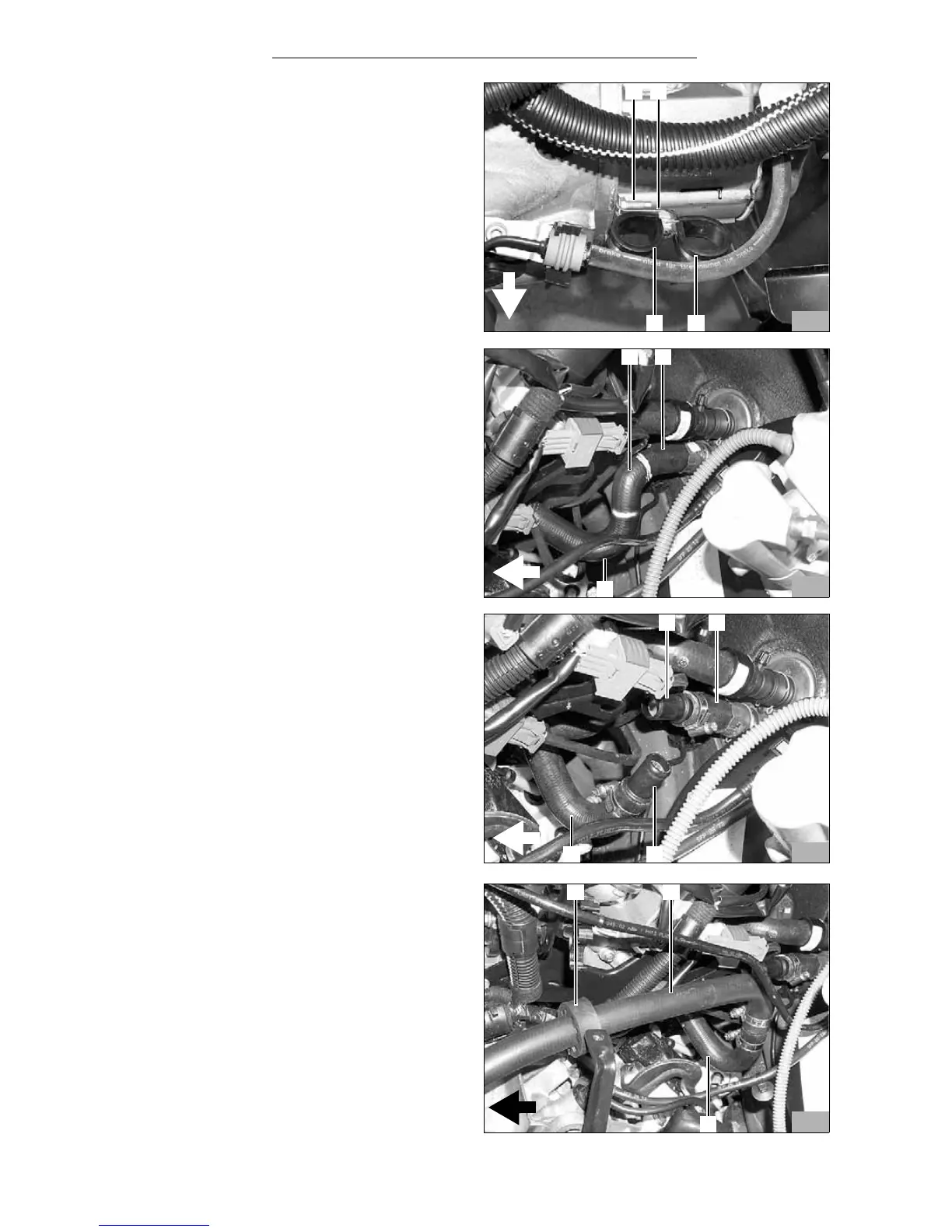

- Fasten the enclosed bracket (2) to the existing stay
bolts (1) on the gear according toe figure.
- Loosely pre-assemble the two rubberized 29mm
tube clamps (3,4) onto the bracket according to the
figure with the M6x20 bolt and M6 flanged nut.
- Clamp the vehicle's own water hose (1,2,3) from the
engine water outlet to the heat exchanger water inlet
with hose clamps.
- Separate the original vehicle water hose at the mark
according to the figure.
- Dispose of the separated hose section (1).
- Insert connecting pipes 18x20 (3) in original vehicle
hose section (4) from the engine outlet and fasten
with hose clamps.
- Insert connecting pipe 18x20 (1) in original vehicle
hose section (2) to the heat exchanger and fasten
with hose clamps.
- Slide the 580mm long water hose (2) with 90° bend
onto the original vehicle hose section (3) from the
engine water outlet, align according to the figure and
fasten with hose clamp.
- Slide the black rubber profile (1) on the 580mm long
water hose (2).
77
1
2
4 3
78
1 2
3
79
4 3
1 2
80
1
3
2
