Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
35

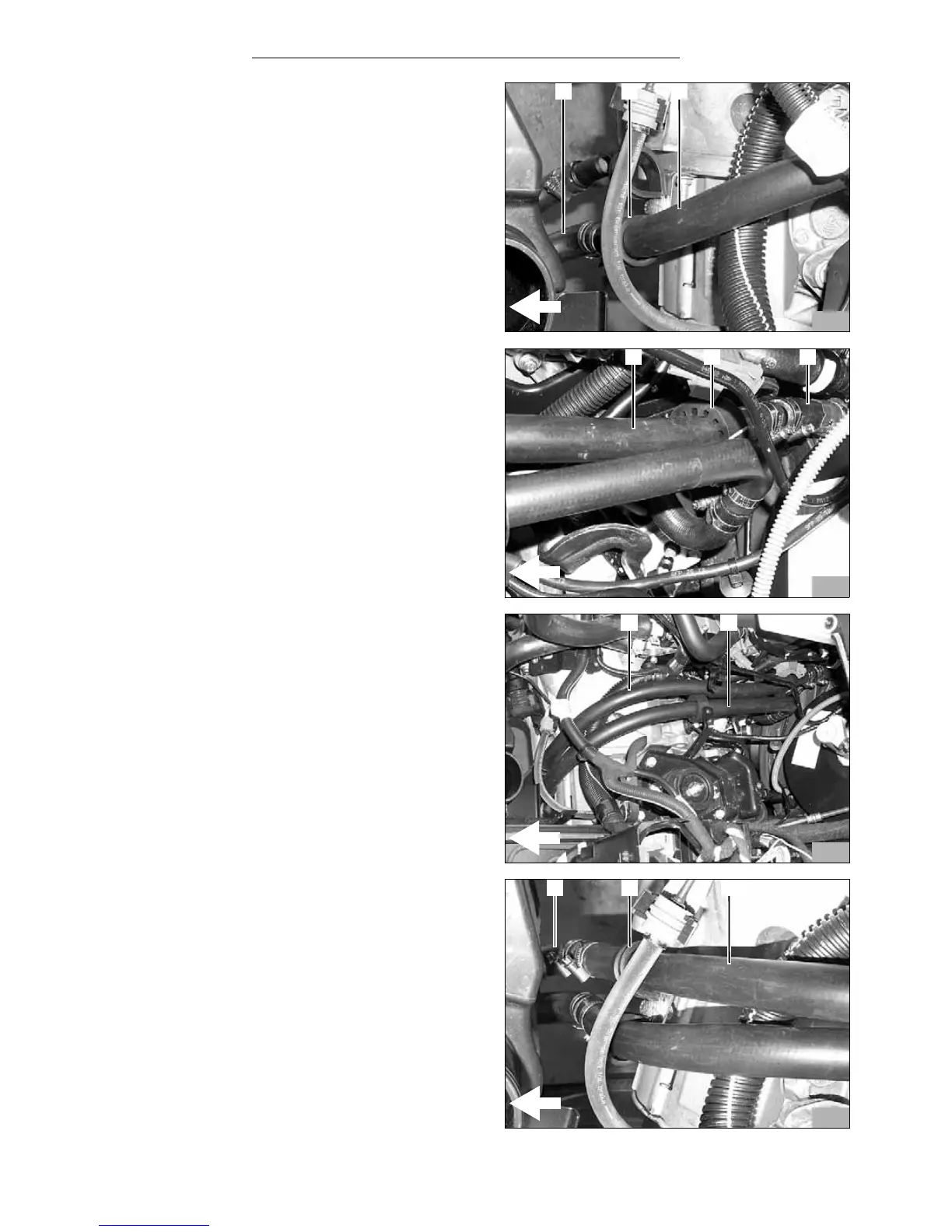

- Run the 580mm long water hoses (83/2) as shown
in figure 83.
- Run the 580mm long water hoses (3) through the
left rubberized tube clamp (2) as shown in the figure.
- Fasten the 580mm long water hose (3) on the
connecting pipe in the 1150 mm long water hose (1)
and secure with hose clamps
- Slide the 700mm long water hose (1) onto the
original vehicle hose section (3) to the heat
exchanger water inlet according to the figure and
fasten with hose clamp.
- Slide the black rubber profile (2) on the 700mm long
water hose (2).
- Run the 700 mm water hose (1) in the engine
compartment as shown in the figure.
- Run the 700mm long water hoses (3) through the
right rubberized tube clamp (2) as shown in the
figure.
- Slide the 700mm long water hose (3) onto the
1,200mm long water hose (1) from the heater unit
water outlet and fasten with hose clamp.
- Align all water hoses.
- Tighten all rubberised tube clamp.
- Align all rubber profiles.
- Secure all water hoses with cable ties.
81
1
2
3
82
1 2 3
83
1 2
84
1 2
3
