Thermo Top C, E Peugeot 307
36
8 Hz 1.4 l diesel and 9 Hz 1.6 l diesel
NOTE:
Position hose clamps so that no other hose can be
damaged!

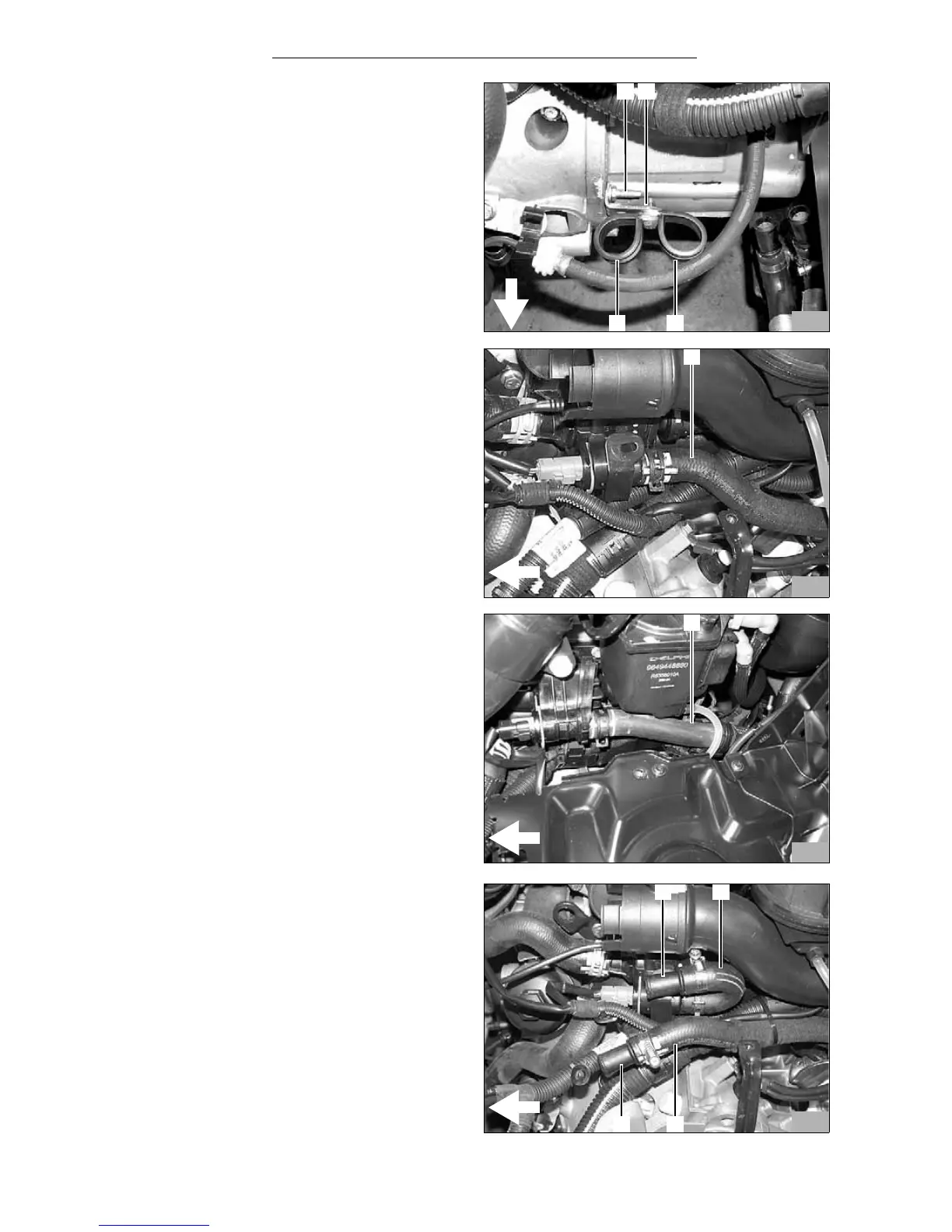

- Fasten the enclosed bracket (2) to the existing stay
bolts (1) on the gear according toe figure.
- Loosely pre-assemble the two rubberized 29mm
tube clamps (3,4) onto the bracket according to the
figure with the M6x20 bolt and M6 flanged nut.
8 Hz 1.4 l Diesel
- Clamp the vehicle's own water hose (1) with hose
clamps.
- Pull the original vehicle water hose from the engine
water outlet to the heat exchanger water inlet off of
the engine outlet.
9 Hz 1.6 l Diesel
- Clamp the vehicle's own water hose (1) with hose
clamps.
- Pull the original vehicle water hose from the engine
water outlet to the heat exchanger water inlet off of
the engine outlet.
8 Hz 1.4 l diesel and 9 Hz 1.6 l diesel
The water connection is shown on 8 Hz.
- Fit the enclosed 180° bend (2) (Ø = 18mm) on the
engine outlet, align as shown in the figure and
fasten with the original hose clamp.
- Insert connecting pipe 18x20 (1) in 180° bend (2)
and fasten with hose clamps.
- Insert connecting pipe 18x20 (4) in original vehicle
hose section (3) to the heat exchanger water inlet
and fasten with hose clamps.
85
4 3
1
2
86
1
86a
1
87
1 2
34
