Peugeot 307 Thermo Top C, E
37

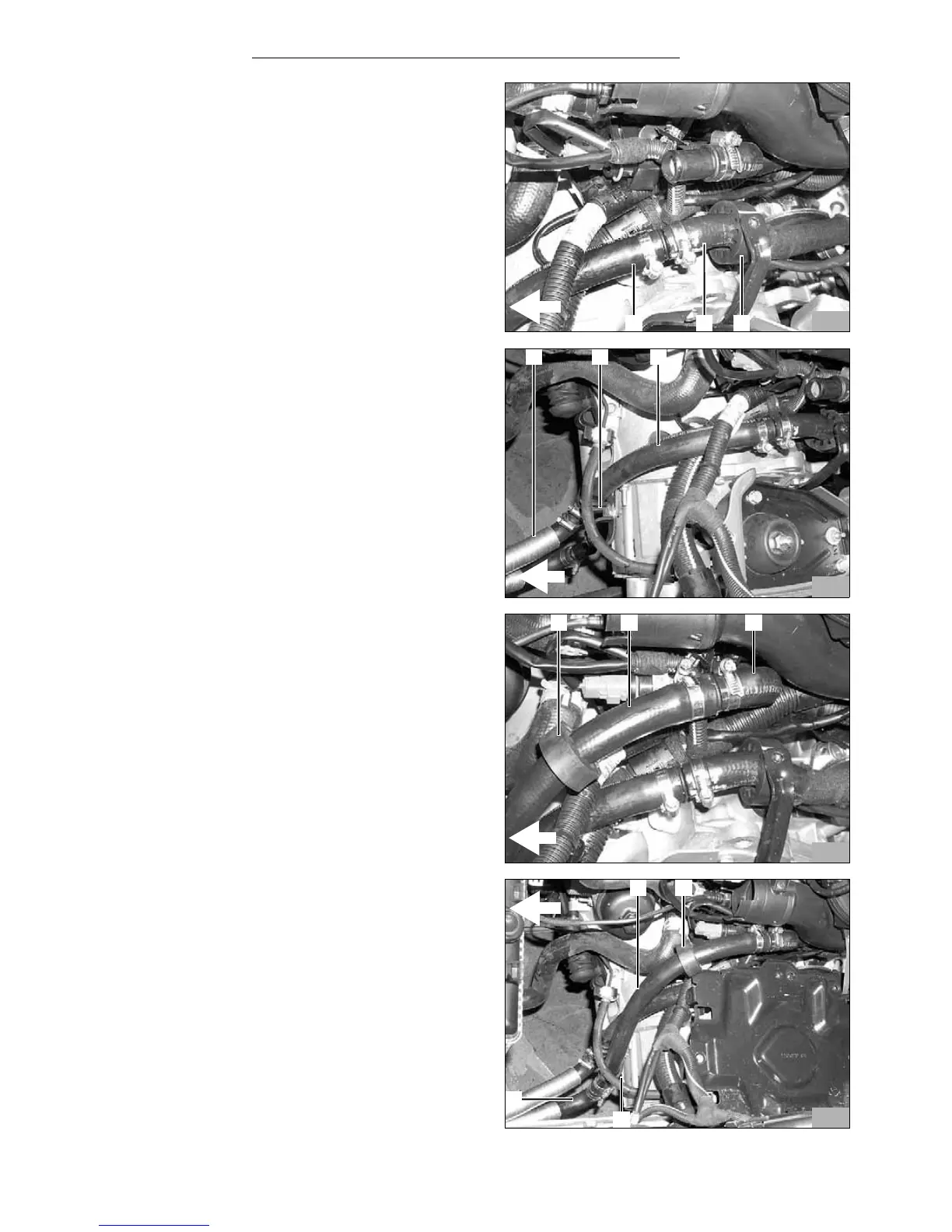

- Slide the black rubber profile (1) on the original
vehicle hose section (2).
- Slide the 350mm long water hose (3) onto the
connecting pipe in the original vehicle hose section
(2) from the heat exchanger water inlet, align
according to the figure and fasten with hose clamp.
- Run the 350mm long water hoses (3) through the
right rubberized tube clamp (2) as shown in the
figure.
- Fasten the 350mm long water hose (3) on the
connecting pipe in the 1,200mm long water hose (1)
and secure with hose clamps
- Slide the 450mm long water hose (2) onto the 180°
bend (3) align as shown in the figure and fasten with
hose clamp.
- Slide the black rubber profile (1) on the 450mm long
water hose (2).
- Run the 450mm long water hoses (1) through the
left rubberized tube clamp (3) as shown in the figure.
- Slide the 450mm long water hose (1) onto the
1150mm long water hose section (4) to the heater
unit water inlet and fasten with hose clamp.
- Align all water hoses.
- Tighten all rubberised tube clamp.
- Align all rubber profiles.
- Install the battery support and align the rubber
profile (2) as shown in the illustration.
- Secure all water hoses with cable ties.
91
1
3
4
2
90
1 2
3
89
1 2
3
88
23 1
