Thermo Top C, E Peugeot 307
38
RHY 2.0 l diesel and RHS 2.0 FAP diesel
NOTE:
Position hose clamps so that no other hose can be
damaged!

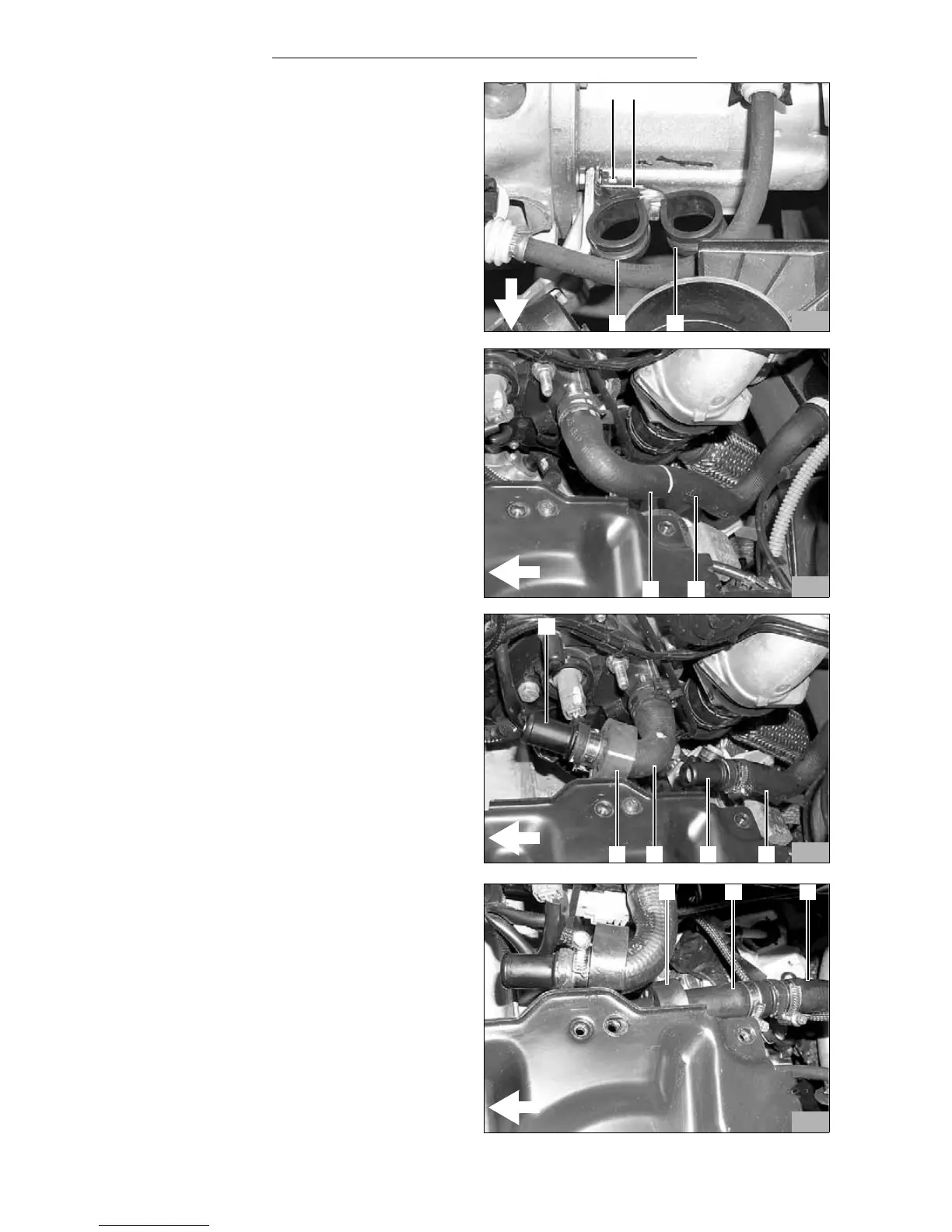

- Fasten the enclosed bracket (2) to the existing stay
bolts (1) on the gear according toe figure.
- Loosely pre-assemble the two rubberized 29mm
tube clamps (3,4) onto the bracket according to the
figure with the M6x20 bolt and M6 flanged nut.
- Clamp the vehicle's own water hose (1, 2) from the
engine water outlet to the heat exchanger water inlet
with hose clamps.
- Separate the original vehicle water hose as shown
in the figure.
- Loosen the original vehicle hose section (4) on the
motor outlet and turn 180° to the front as shown in
the figure.
- Refasten the original vehicle hose section (4) to the
motor outlet with original vehicle hose clamps.
- Slide the black rubber profile (5) on the original
vehicle hose section (4).
- Insert connecting pipes 18x20 (1) in original vehicle
hose section (4) from the engine outlet and fasten
with hose clamps.
- Insert connecting pipe 18x20 (3) in original vehicle
hose section (2) to the heat exchanger and fasten
with hose clamps.
- Slide the 480mm long water hose (3) onto the
connecting pipe in the original vehicle hose section
(3) to the heat exchanger water inlet, align
according to the figure and fasten with hose clamp.
- Slide the black rubber profile (1) on the 480mm long
water hose (2).
92
4 3
1
2
93
2 1
94
5 4
1
23
95
1 2
3
