Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
39

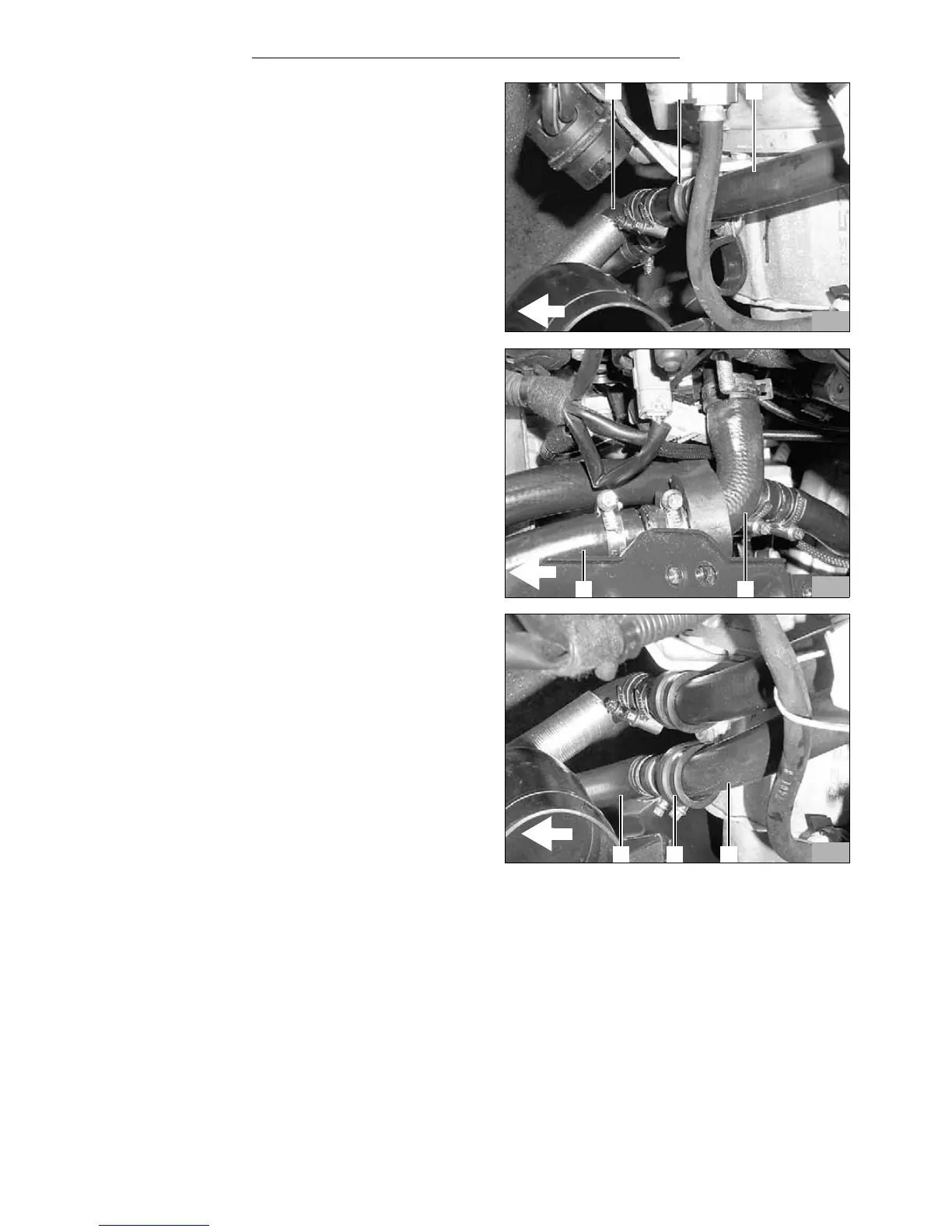

- Run the 480mm long water hoses (3) through the
right rubberized tube clamp (2) as shown in the
figure.
- Fasten the 480mm long water hose (3) on the
connecting pipe in the 1,200mm long water hose (1)
and secure with hose clamps
- Slide the 350mm long water hose (2) onto the
original vehicle hose section (1) from the motor
outlet, align as shown in the figure and fasten with
hose clamp.
- Run the 350mm long water hoses (1) through the
left rubberized tube clamp (2) as shown in the figure.
- Slide the 350mm long water hose (1) onto the
1150mm long water hose section (3) to the heater
unit water inlet and fasten with hose clamp.
- Align all water hoses.
- Tighten all rubberised tube clamp.
- Align all rubber profiles.
- Secure all water hoses with cable ties.
96
1 2
3
97
2 1
98
3 2 1
