Thermo Top C, E Peugeot 307
40
RHR 2.0 l HDI
NOTE:
Position hose clamps so that no other hose can be
damaged!

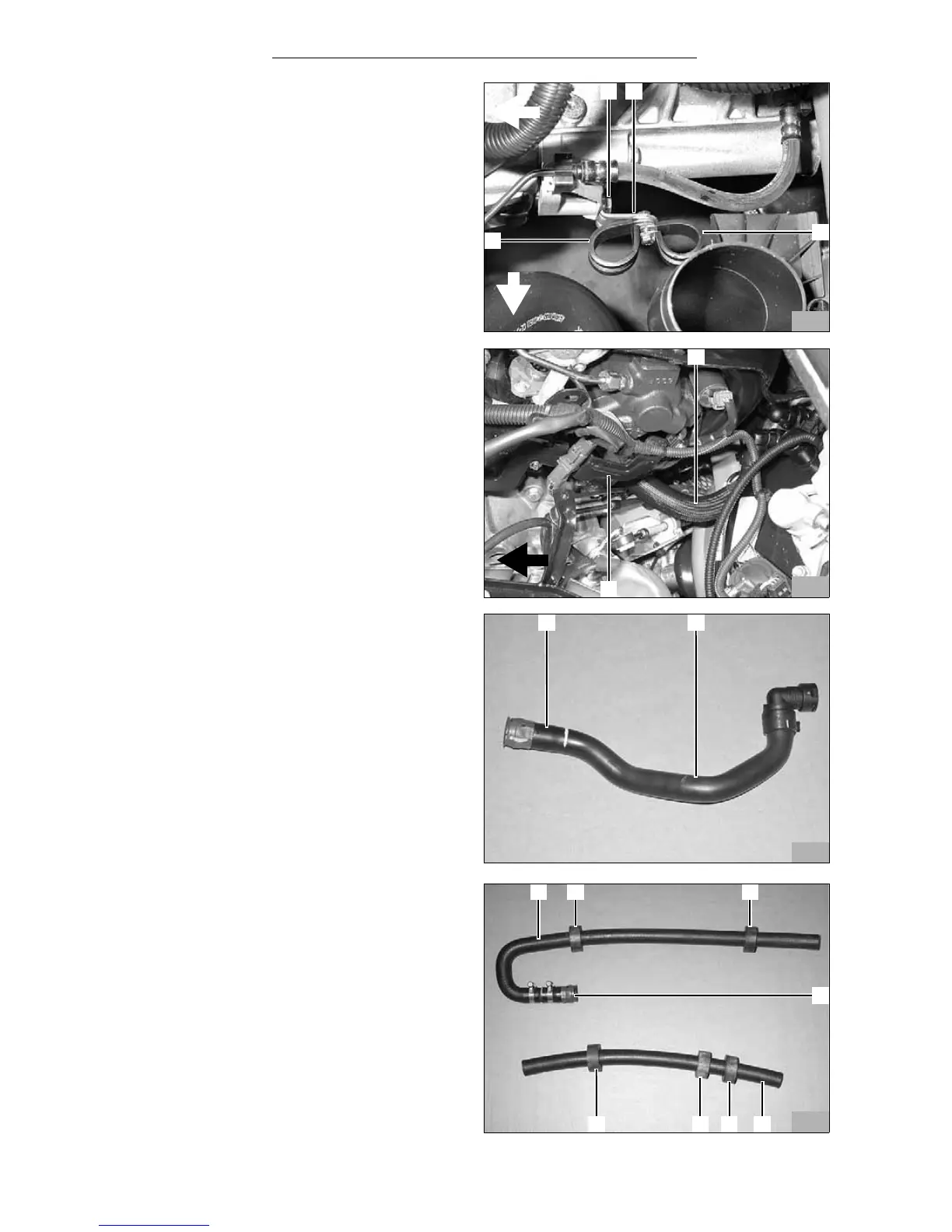

- Fasten the enclosed bracket (2) to the existing bolt
(1) on the gear according toe figure.
- Loosely pre-assemble the two rubberized 29mm
tube clamps (3,4) onto the bracket according to the
figure with the M6x20 bolt and M6 flanged nut.
- Clamp the vehicle's own water hose (1) from the
engine water outlet to the heat exchanger water inlet
with hose clamps.
- Remove the water hose (1) and the protective hose.
- Remove the mounting (2)
- Separate the original vehicle water hose (1,2) at the
mark according to the figure.
- Reinstall the original vehicle hose piece (2) on the
heat exchanger water inlet.
- Connect the hose section (101/1, 102/4) from the
motor outlet and the 500mm water hose (102/1,
45/2) as shown with the connecting pipe 20x20mm
and hose clamps.
- Slide the black rubber profile (2,3) onto the water
hose (1) according to the figure.
- Slide the black rubber profile (6,7,8) onto the 440
mm water hose (102/5, 44/2) according to the figure.
99
1 2
4
3
100
1
2
101
21
102
1 2 3
5678
4
