Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
41

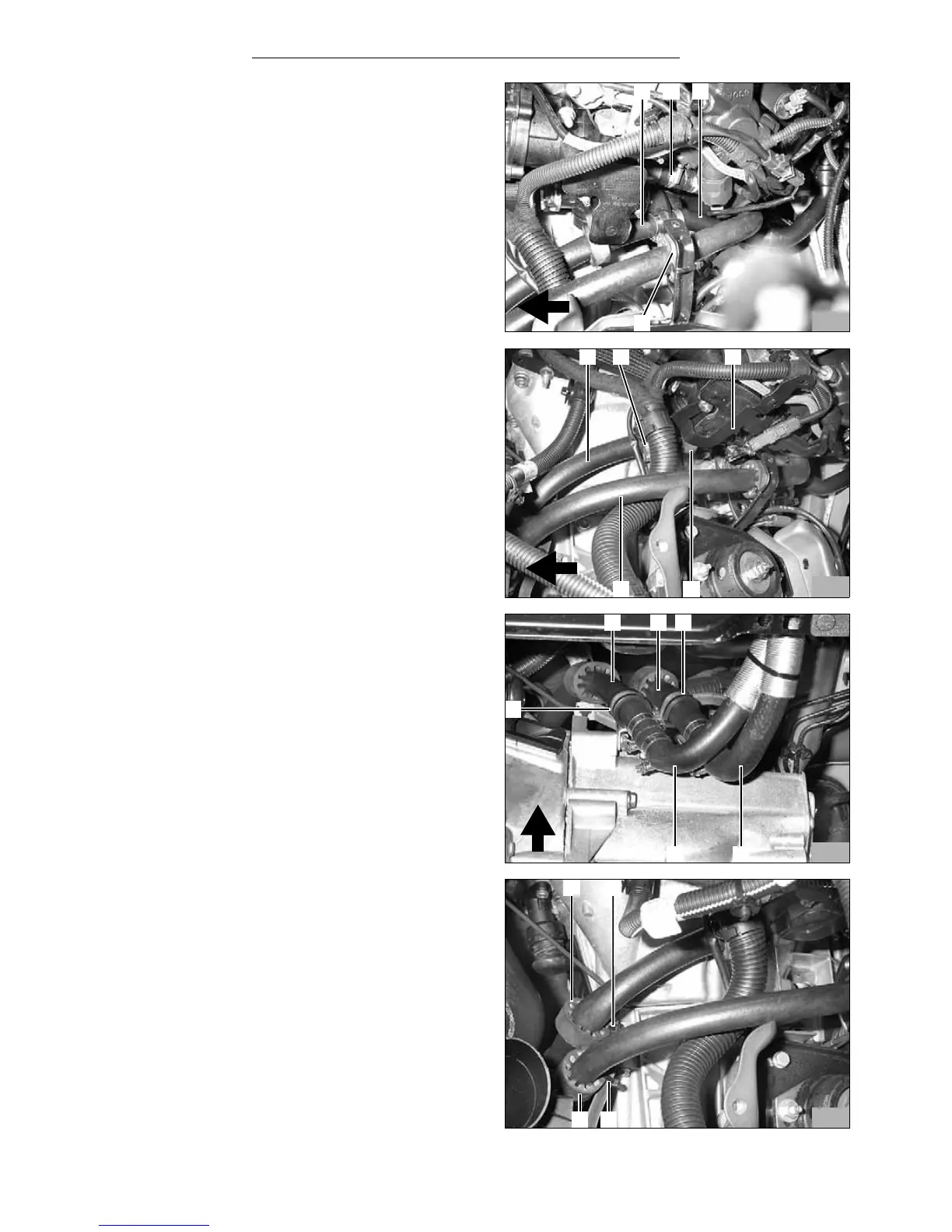

- Slide the preassembled water hose (2) on the
engine water outlet and place as shown in the
figure.
- Position the black rubber profile (4) as shown in the
figure and fasten with cable clips.
- Fasten the 440mm long water hose (102/5, 103/1)
and the original vehicle water hose (3) to the Heat
exchanger water inlet with the 20/20 connecting
pipe hose clamps.
- Run the 440mm long water hose (1) and the
preassembled water hose (5) before the gears to
the bottom.
- Refit the mounting (3)
- Position the black rubber profile (2.4) as shown in
the figure.
- Run the 440mm long water hose (104/1; 105/1)
through the right rubberized tube clamp (6).
- Connect the 440mm long water hose (1) and
1,200mm long water hose (105/5, 44/3) with the
20/20 connecting pipe and hose clamps.
- Run the water hose (104/5; 105/2) through the left
rubberized tube clamp (3).
- Connect the 440mm long water hose (2) and
1,150mm long water hose (105/4, 45/1) with the
20/20 connecting pipe and hose clamps.
- Position the black rubber profile (1.4) to the original
vehicle line as shown in the figure.
- Fasten the black rubber profile (1,4) with cable clips
(2,3).
- Align all water hoses.
- Tighten all rubberised tube clamp.
- Align all rubber profiles.
- Secure all water hoses with cable ties.
103
2 31
4
104
1
5
2
4
3
105
31
6
5 4
2
106
1
4 3
2
