Appendix B - Anexo B
Appendix B
Anexo B
121.4 [4.78]
18 5.0 [ 7.28]
7.2 [0.28]
5.5 [0.22]
2.8 [0.11]
R4.0 [0.16]
12.6 [0.49]
11.9 [0.47]
50.0 [1.96]
5.4 [0.21]
5.6 [0.22]
18 9.1 [ 7.4 4]
175.0 [6.89]
7.7 [0.30]
86.6 [3.41]
75.2 [2.96]
149.5 [5.89]
81.0 [3.19]
50.0 [1.96]
A
B
B
A
77.0 [3.03]
41.7 [1.64]

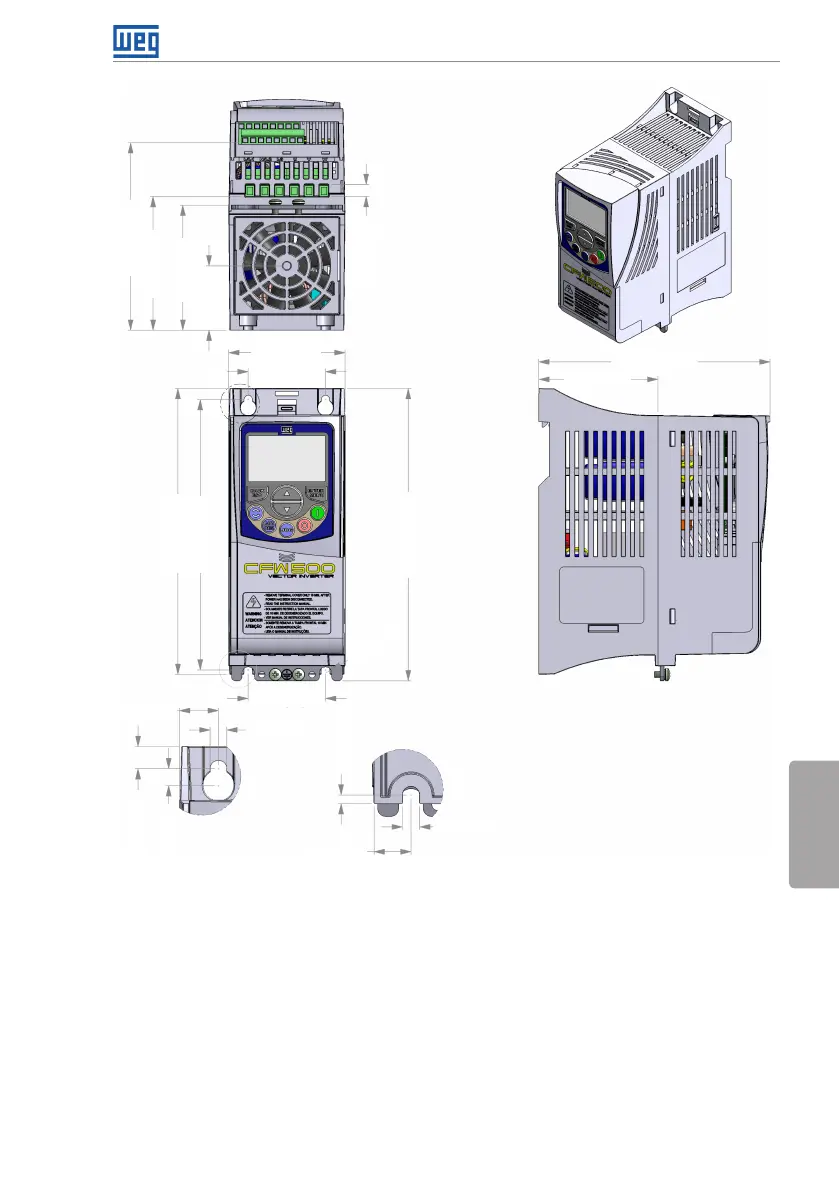

Figure B.5: Inverter dimensions in mm [in] - frame size A
Figura B.5: Dimensiones del convertidor en mm [in] - tamaño A
Figura B.5: Dimensões do inversor em mm [in] - mecânica A
