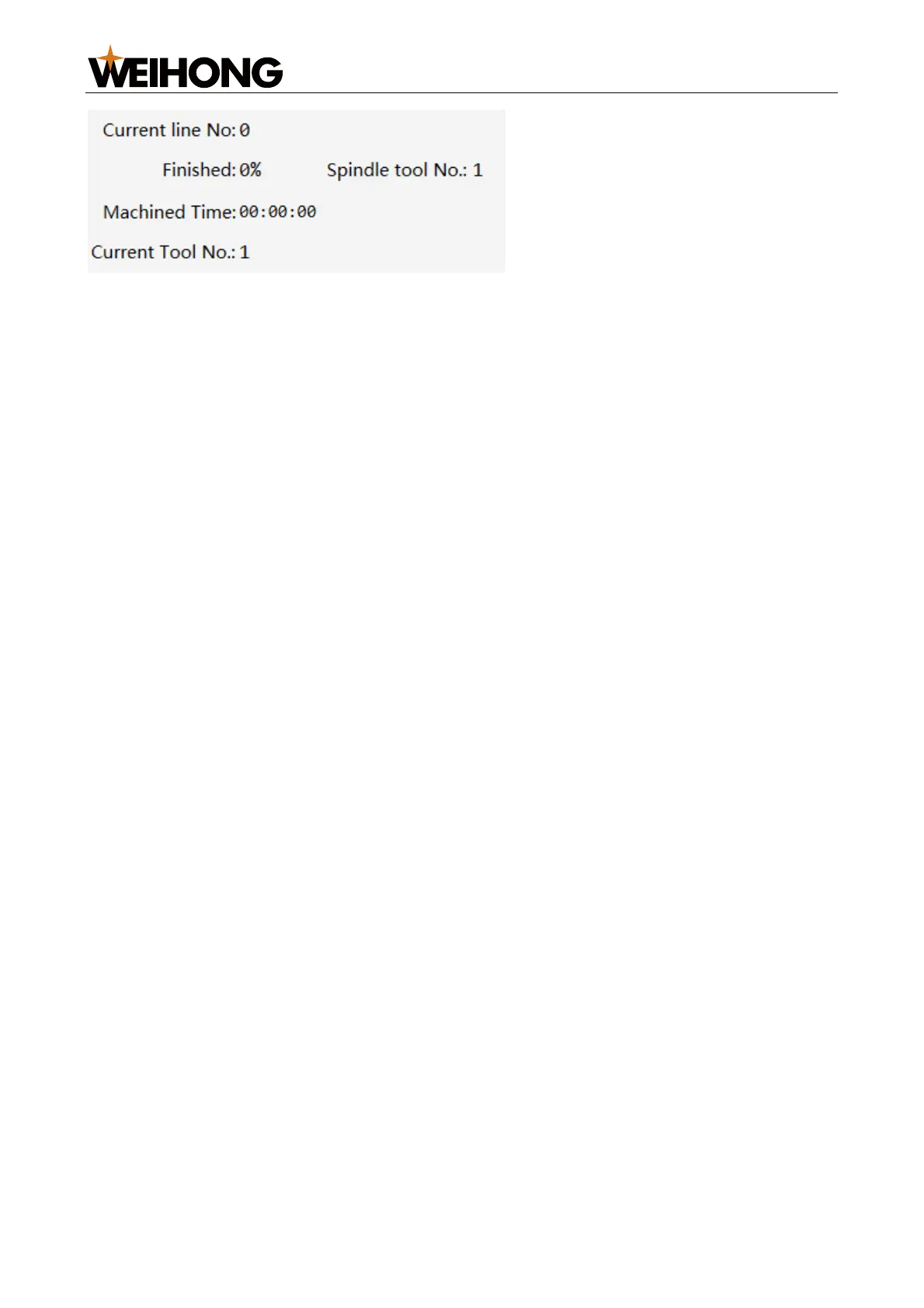

It shows the current machining progress, current program line number, machining duration
and current tool number.
1.3.3.6 Function Window
Click the following tabs in the function window to access different functions:
Track: Displays the machining or dry running track.
Offset: Setting of the workpiece offset and public offset, Z-axis lowing and lifting
Calibration: Setting of the tool sensor position and tool calibration method (Auto
Measure, Z Mobile Cali, Z Manual Set)
Program Management: Loading, editing, deleting, renaming and creating
programs
Common: Viewing and setting of common parameters
Log: Viewing of information, alarm, and error logs.
Port: Viewing of port status and polarity, testing of ports, modification of port
polarity, and setting of the filter
1.3.3.7 Operation Mode Area
The system supports the following operation modes:
Auto
o The loaded program is displayed in this mode.
o Common function: Going to the fixed point
o Common ports: Spindle, Cool, Vacuum, and Lube. The common ports can
be modified in NcConfig.
Manual
o Axis buttons: control of the axis movement in each direction
Jog
Click and hold an axis button to make the target axis move in
the target direction continuously at the relatively lower speed.
Click and hold multiple axis buttons at the same time to make
the target axes move in the target directions continuously at the
relatively lower speed.
Mainly used to move the X axis and Y axis at the same time.
Click and hold an axis button and the Rapid button at the same
time to make the target axis move in the target direction
continuously at the relatively higher speed.
Click and hold multiple axis buttons and the Rapid button at the
same time to make the target axes move in the target
directions continuously at the relatively higher speed.
HW: In this mode, you use the handwheel to control the machine
movement. Select the axis direction and multiplier on the handwheel
