Chapter 1: Introduction and Features
Aug 2012
CPU-NXT 3.2
Parts
Reference Figure 1-4 for a list of parts required for any CPU-NXT 3.2 game cabinets. 

CAUTION: CPU-NXT 3.2 games require all parts listed in this bulletin. The following are a subset of
all required parts..

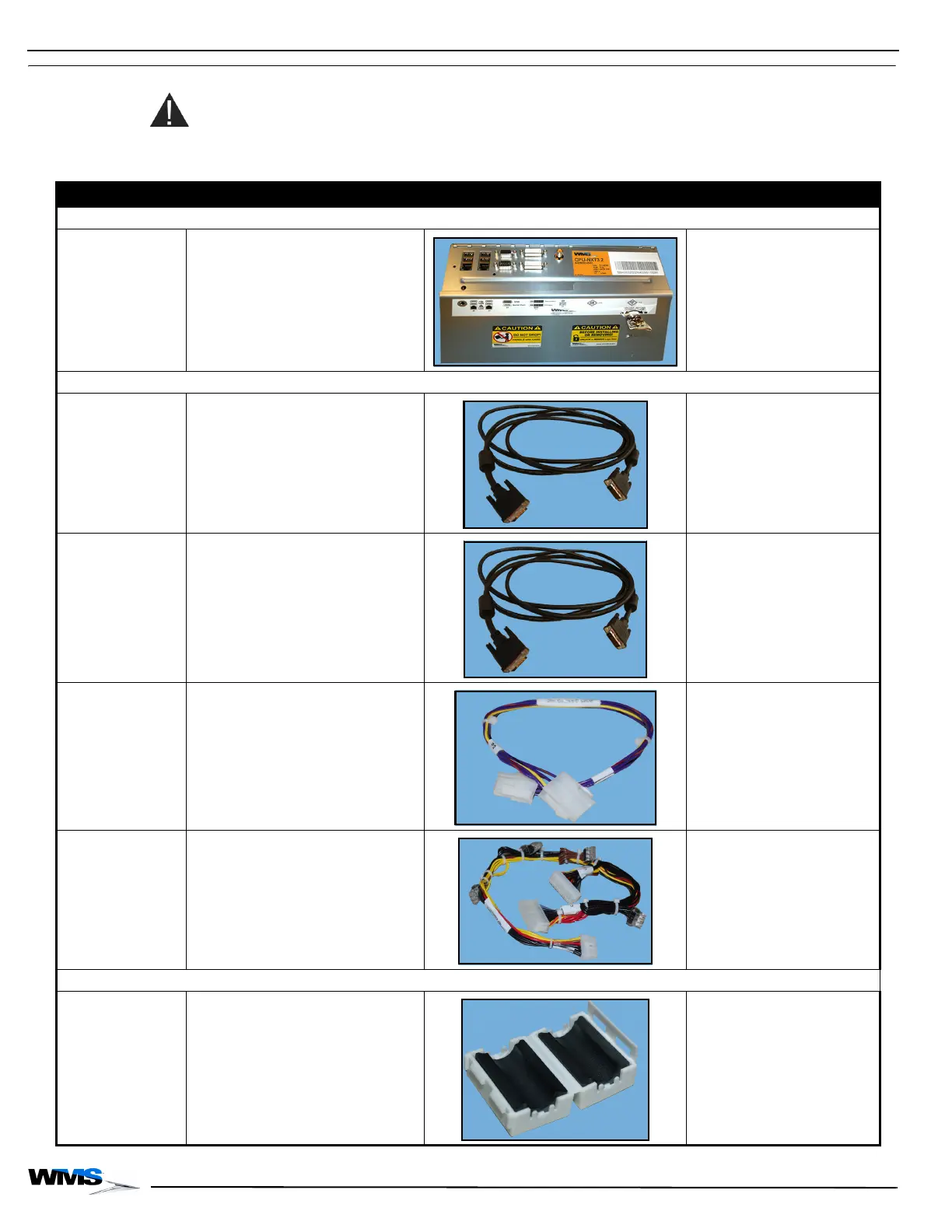

Figure 1-4 Required parts subset for CPU-NXT 3.2 games.
Part Number Description Photo Installation
CPU
A-026352-03-02 ASSY: CPU-NXT 3.2 see Preparation for Installing
CPU-NXT 3.2 (BB2 and BBxD)
on page 2-1
Cables
HD-029663-00-03 CBL: DVI-D, W/FRTS, 2ND DISP LBL,
3M (used in BBxD only)
see Installation: CPU-NXT 3.2
into the BBxD on page 2-14
HD-029663-00-02 cbl: dvi-d, w/frts, 2nd disp lbl, 2m 
(used in BB2 only)
see Installation: CPU-NXT 3.2
into the BB2 on page 2-3
HD-009861-00-01 cbl: tower lamp ext-1ft 
(used in BBxD only)
see Connecting the Tower Light
Extension Cable on page 2-23
HD-029117-00-00-00 cbl: cd power, CPU-NXT 3.2 
(used in both BB2 and BBxD)
see Installation: CPU-NXT 3.2
into the BB2 on page 2-3
Components
6556-001668-00-00 FERRITE: CORE, SNAP-ON .857 x
1.285 SQUARE (used in BBxD only)
see Connecting the Tower Light
Extension Cable on page 2-23
