2-19Installation: CPU-NXT 3.2 into the BBxD
16-1408348
Installing
CPU-NXT 3.2
DC Power
Distribution Cable
Complete the following steps to install the DC Power Distribution Cable (HD-029117-00-00).
1 Disconnect the 22-pin Primary DC Power cable (HD-021266-00-00) P5 connector,
Figure 2-37 (A), from J9 on the Bulkhead Board.

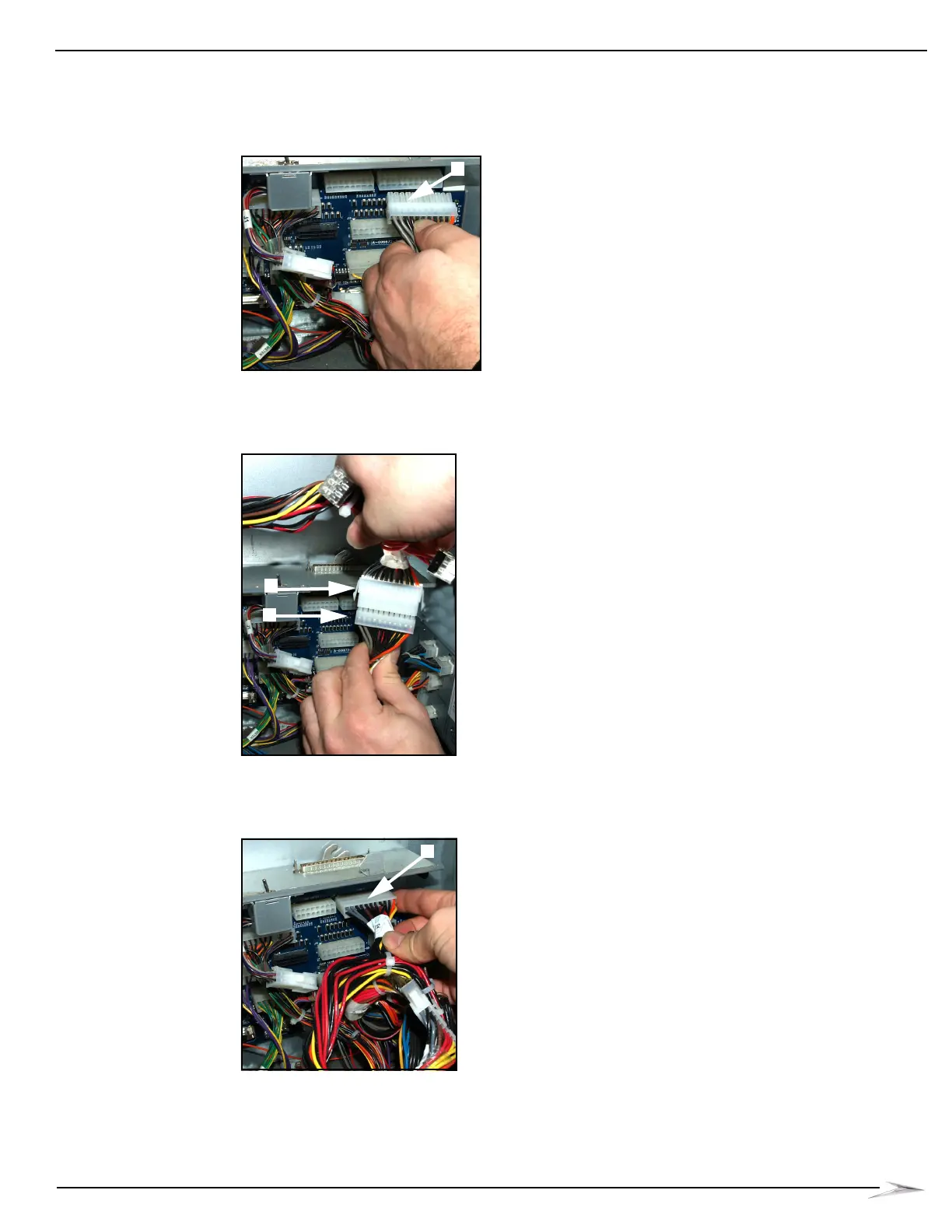

Figure 2-37 Disconnecting Primary DC Power Cable from Bulkhead Board.
2 Connect the 22-pin Primary DC Power Cable, Figure 2-38 (A), P5 connector into the DC Power
Cable P1 connector, Figure 2-38 (B).
Figure 2-38 Connecting Primary DC Power Cable into DC Power Cable.
3 Connect the Primary DC Power Cable P2 connector to J9 on the Bulkhead Board,
Figure 2-39 (A).
Figure 2-39 Connecting Primary DC Power Cable to Bulkhead Board.
4 If appropriate, remove the Player Tracking Bracket. Reference Service Manual 16-026146-xx:
Bluebird eXperience Design (BBxD) Video and Reel Gaming Device for information on how to
remove the Player Tracking System.
A
B
A
A
