Chapter 3: Maintenance
Aug 2012
Prepare CPU-
NXT 3.2 for
Shipping
Complete the following steps to prepare CPU-NXT 3.2 for shipping:
NOTE: This procedure only needs to be followed if CPU-NXT 3.2 requires replacement, in which
case the packaging (G-018328) is used to ship new units out of Part Sales or to ship damaged units
back from the field. If a game is being shipped, CPU-NXT 3.2 can be shipped safely inside the game
cabinet and does NOT have to be removed and packaged separately unless mandated by
jurisdictional requirements.
1 Turn the CPU-NXT 3.2 Enclosure lock to the right to lock the Logic Door, Figure 3-36 (A).

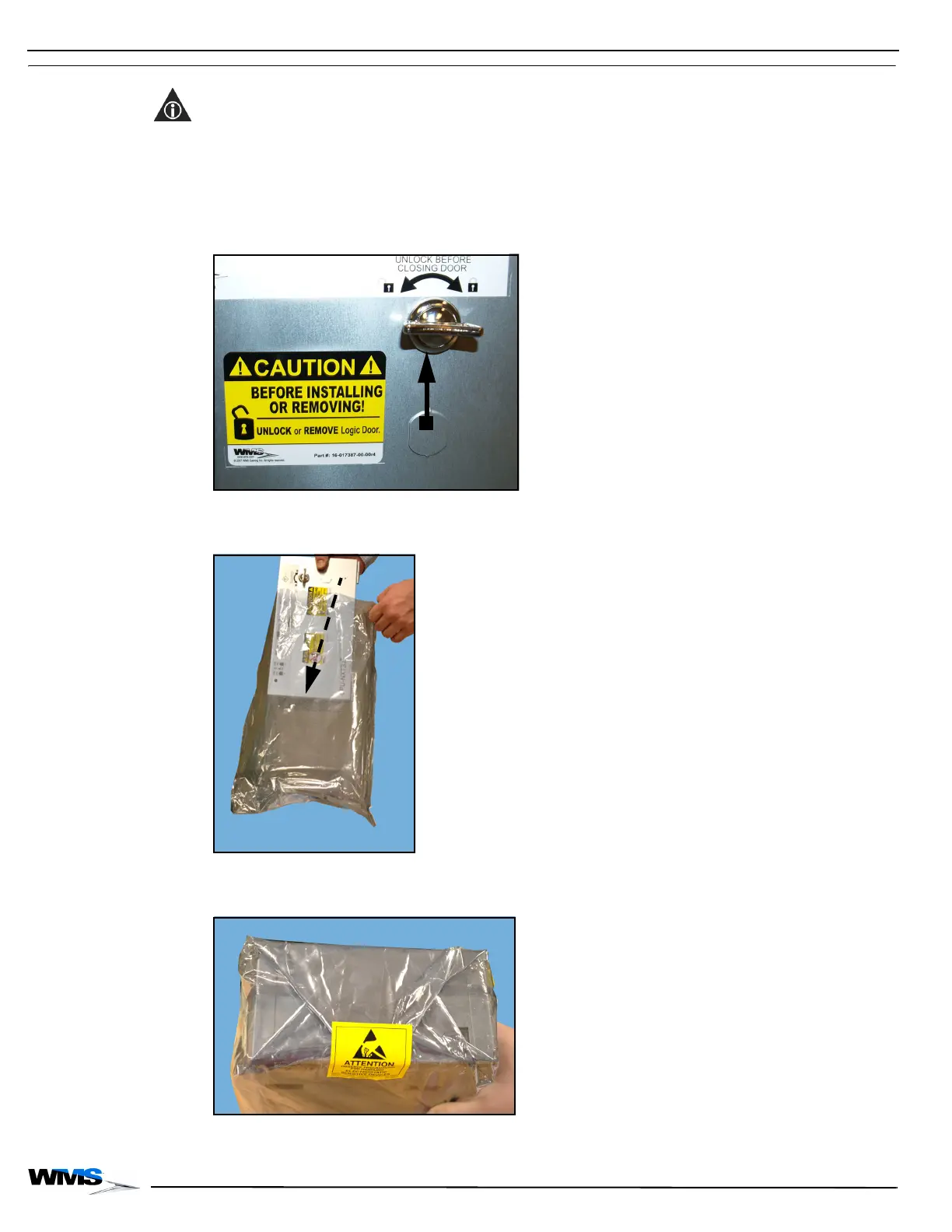

Figure 3-36 Locking Logic Door.
2 Insert the CPU-NXT 3.2 Enclosure into an anti-static bag (20-014086-05), Figure 3-37.
Figure 3-37 Inserting CPU-NXT 3.2 Enclosure into anti-static bag.
3 Seal the anti-static bag, Figure 3-38.
Figure 3-38 Sealing anti-static bag.
