Parameter 235
Delay
limit 1/2 000s
VDO input, pressure; delay time for limit values of class F1 and F3 alarm 0 to 650 s
In order to initiate an alarm, the measured value must exceed or fall below (depen-
dent upon Parameter 236) the threshold value (Parameter 233 or Parameter 235)
wi
thout interruption for at least this time.
Parameter 236
Monitoring for
----------------
VDO input, pressure; monitoring for ... high limit mon. / low limit mon.
A fault condition is recognized when the measured value has exceeded or fallen be-
low the threshold value (Parameter 233 or Parameter 235).
hig
h limit mon.: The measured value must exceed threshold.
low limit mon.: The measured actual value must fall below the threshold value.
VDO Input 'Temperature' (Analog Input [T7])
VDO inputs may be measured here (the input has been calibrated to the VDO sender 323.425 or 323.478 (0 to
380 ohm, 40 to 120 °C). The analog input is displayed with its description. Two threshold levels can be moni-
tored. The first level initiates a F1 class alarm, the second level initiates a class F3 alarm.
NOTE
Prior to ordering any VDO sender, ensure that the proper thread (metric or SAE) is ordered for your
application.

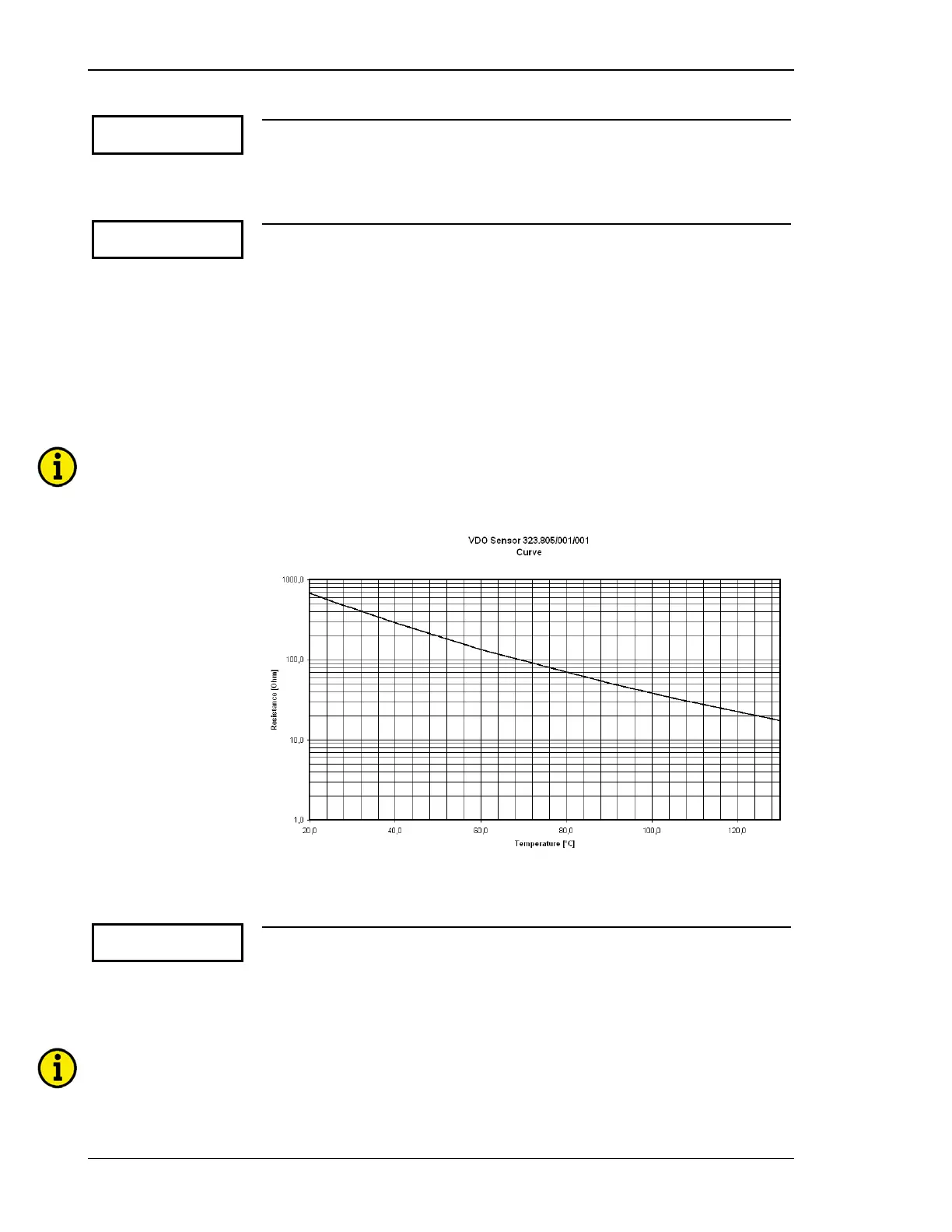

Figure 3-12: VDO transmitter 323.425 (slope)
Parameter 237
Analog input 7
VDO ON
VDO input, temperature; enable/disable ON/OFF
ON ................ The value of this input appears in the display and monitoring is
enabled. The subsequent parameters of this function are displayed.
OFF .............. The value of this input does not appear in the display and monitoring
is disabled. The subsequent parameters of this function are not dis-
played.
NOTE
If the unit is equipped with a second communication interface (Option SB03 and Option SC10), the
alarm texts can only be configured via LeoPC1.
