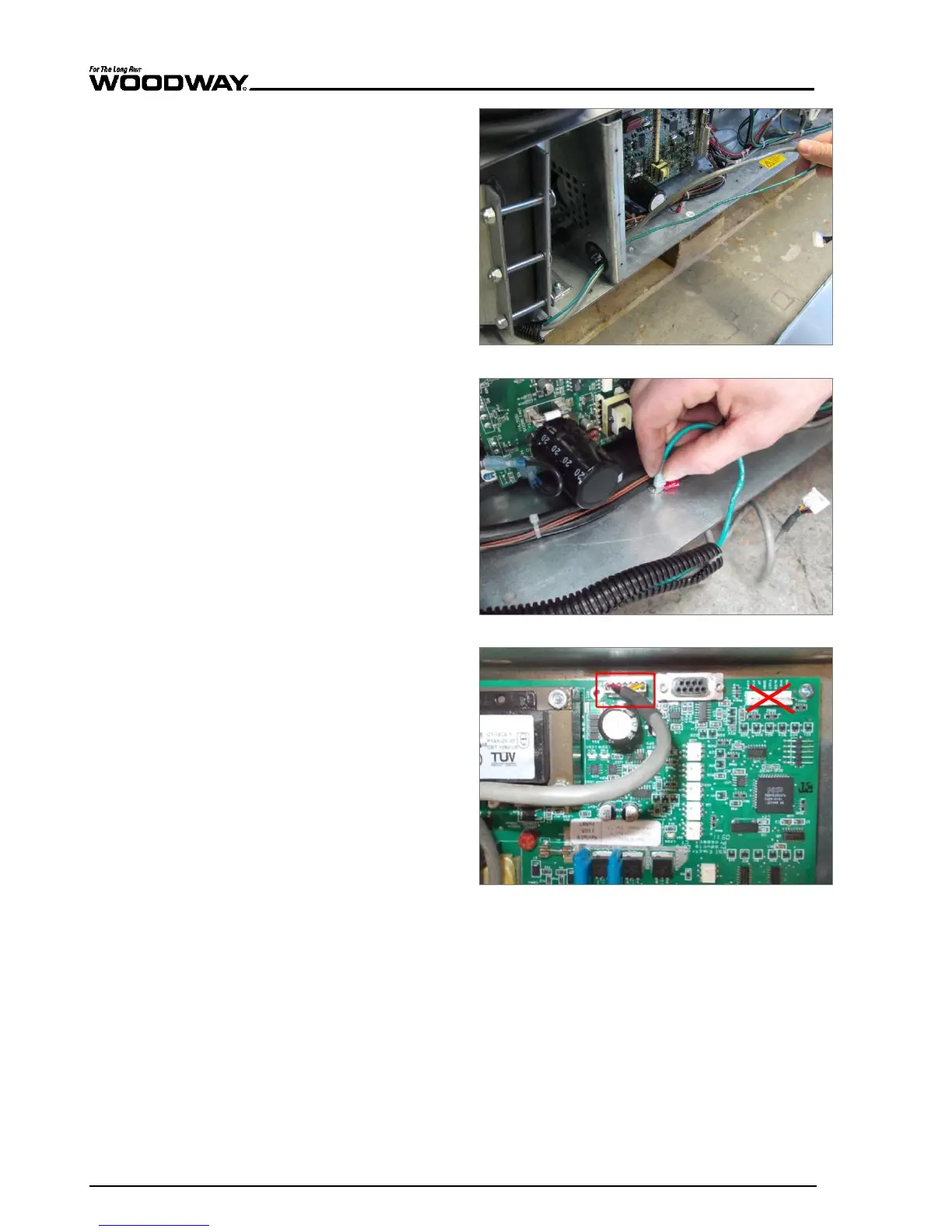

7. Lay the wire through the
hole in the console.
Fig. 30 Desmo assembly, connection 1
8. Attach the protective con-
ductor (green) to the con-
tact tab on the housing.
Fig. 31 Desmo assembly, connection 2
9. Connect the display cable
to the circuit board. The
connector is J10.
Note: Do not connect dis-
play cable to the position
marked with the red “X” in
Fig. 29!
Fig. 32 Desmo assembly, connection 3
