10. Connect the wires to the
frame with the supplied
wire ties.
11. Connect and secure all oth-
er connections from hand-
rail.

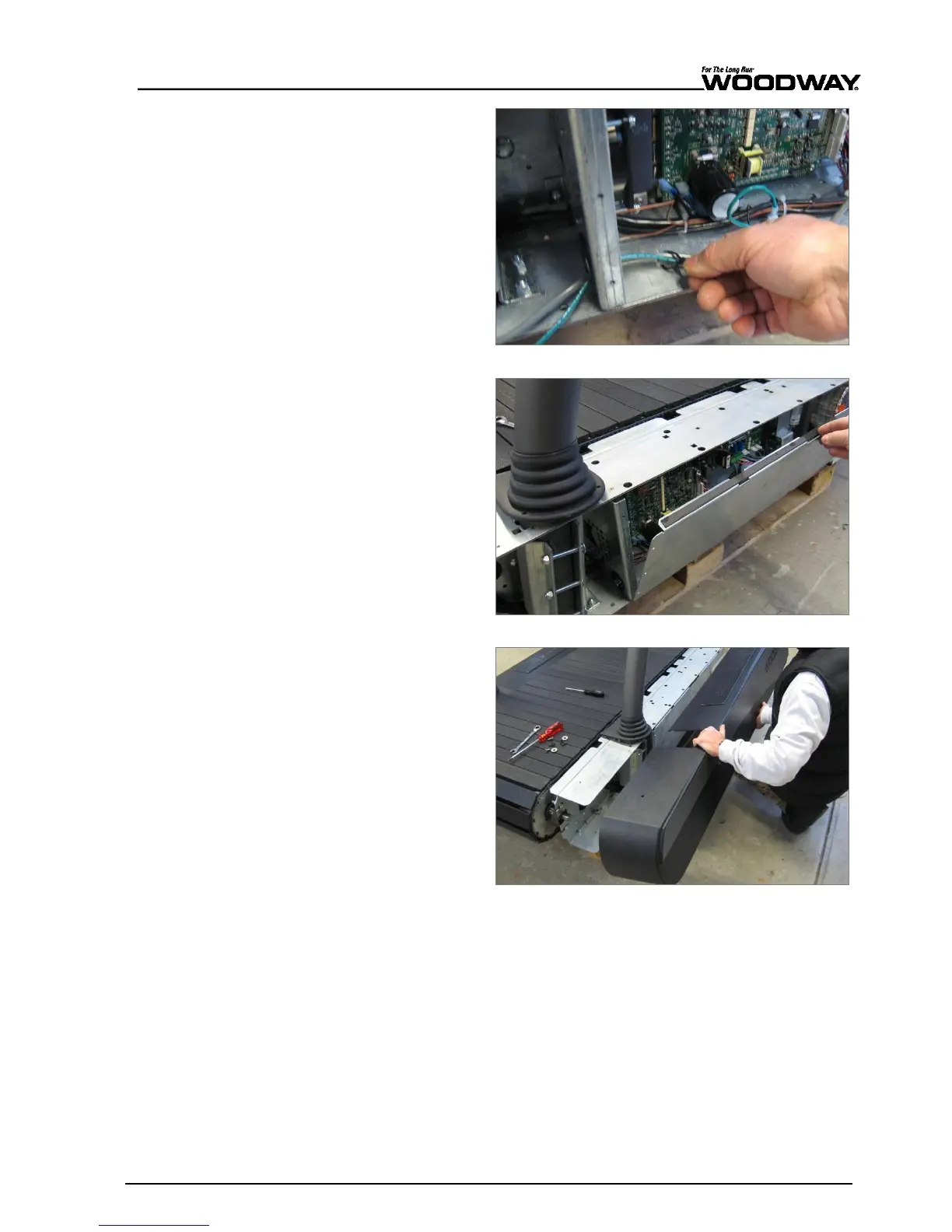

Fig. 33 Desmo assembly, connection 4
12. Reinstall electronic cover
plate on the right side of
the treadmill frame using a
Phillips screw driver.
Fig. 34 Desmo assembly, electronic cover plate
13. Slide the side covers onto
the left and right sides.
14. Guide the covers, slightly
tilted under the handrail
boots.
15. Attach the side covers and
railing covers with screws
(do not tighten the screws
yet).
Fig. 35 Desmo assembly, side covers
