Woodway PATH - Page 53

03/2016 – UM-MT-EN-01 53
3. Prepare the mount for the
tube. Loosen bolts if neces-
sary.

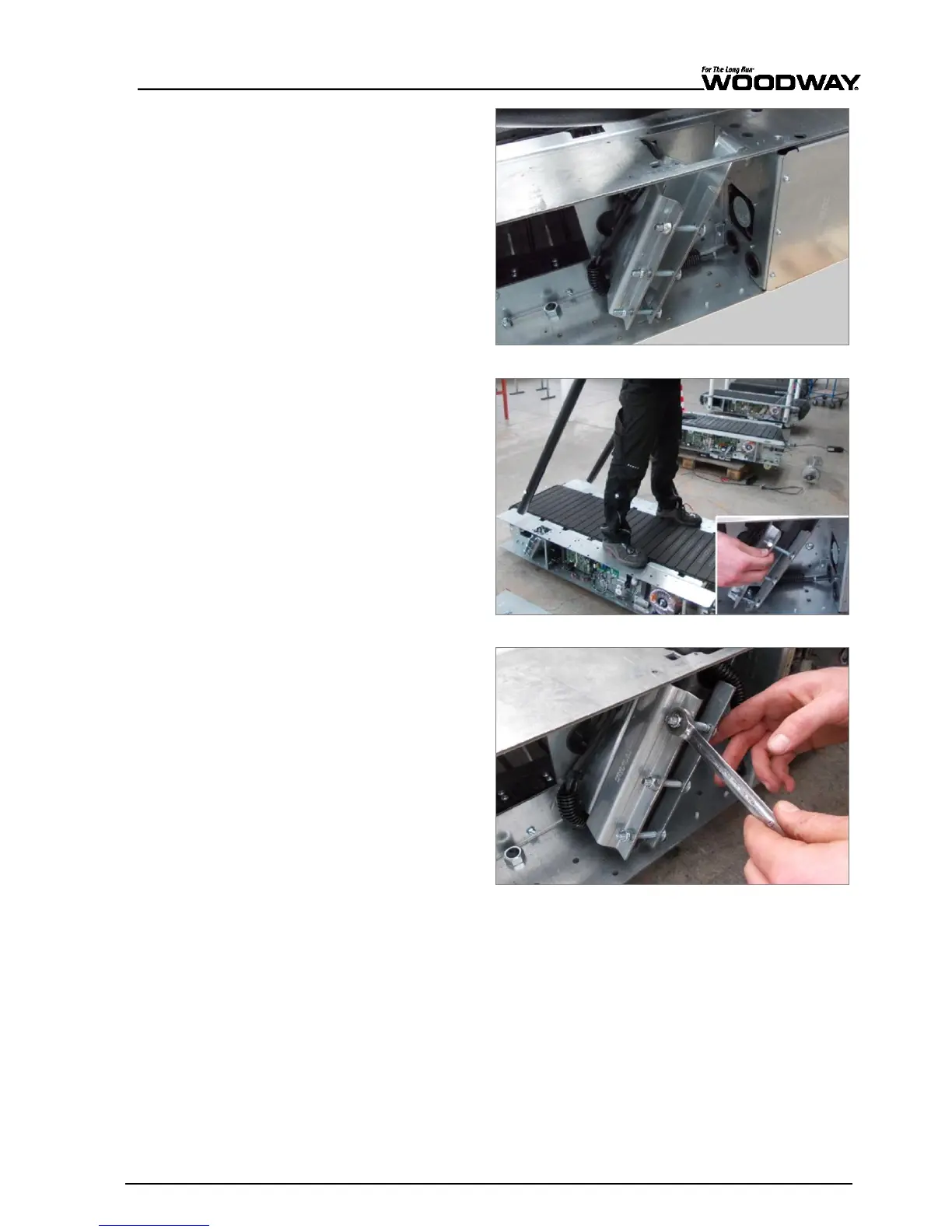

Fig. 39 Mercury/Path assembly, tube mount
4. Insert the railing tube into
the mounts.
Note: Do not damage the
wires!
Be careful not to pinch
yourself!
Fig. 40 Mercury/Path assembly, insert tubes
5. Tighten railing mount bolts.
Fig. 41 Mercury/Path assembly, fixing the railing
