13. Slide the side covers on
both sides and fix with
screws (do not tighten the
screws yet).

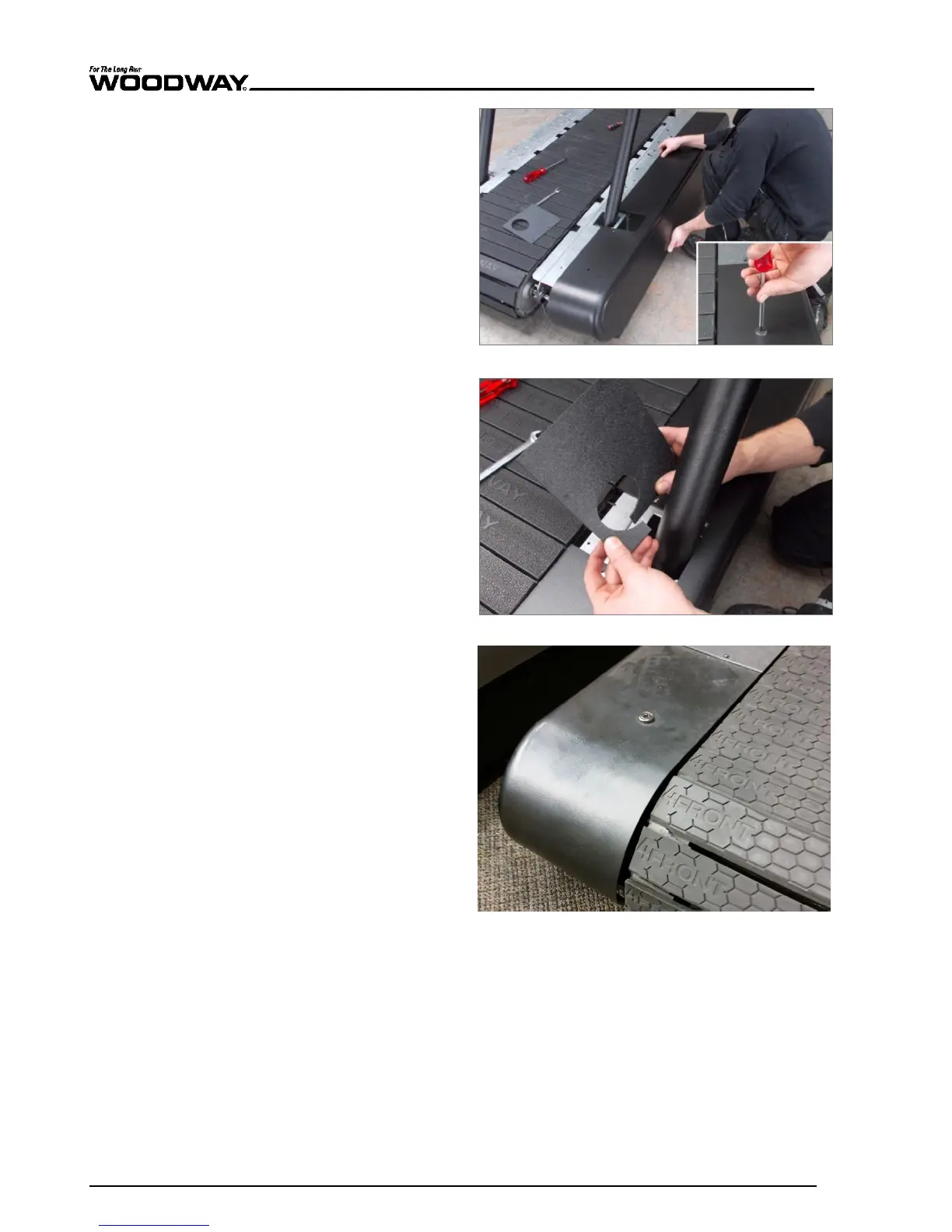

Fig. 48 Mercury/Path assembly, side covers
14. Slide the cover plates over
the tube on both sides and
fix with screws.
15. Tighten large screws first,
then the rest.
Note:
Ensure distance be-
tween side covers and run-
ning surface!
The side
covers must not be in con-
tact with the drive belts on
the rear left side!
Fig. 49 Mercury/Path assembly, cover plates
16. Position the side covers so
that a ¼ in. (5 mm) gap is
visible.
17. Then tighten all screws.
Note:
The side covers
must not be in contact with
the running surface or drive
belts on the rear left side!
Fig. 50 Mercury/Path assembly, cover plates
