RJ-901C/RJ-900C 　 Maintenance Manual 5 Self-Diagnosis Mode
5-33
A: Media feed direction
B: Adjust the setting value so that the printed dots are aligned at this connecting point.
C: The number shows the performed adjustment items.
1-1: CW adjustment Low 1
1-2: CW adjustment Low 2
2-1: CW adjustment High 1
2-2: CW adjustment High 2
* For CW adjustment Low 2, High 1 and High 2, perform adjustment using the same procedure.

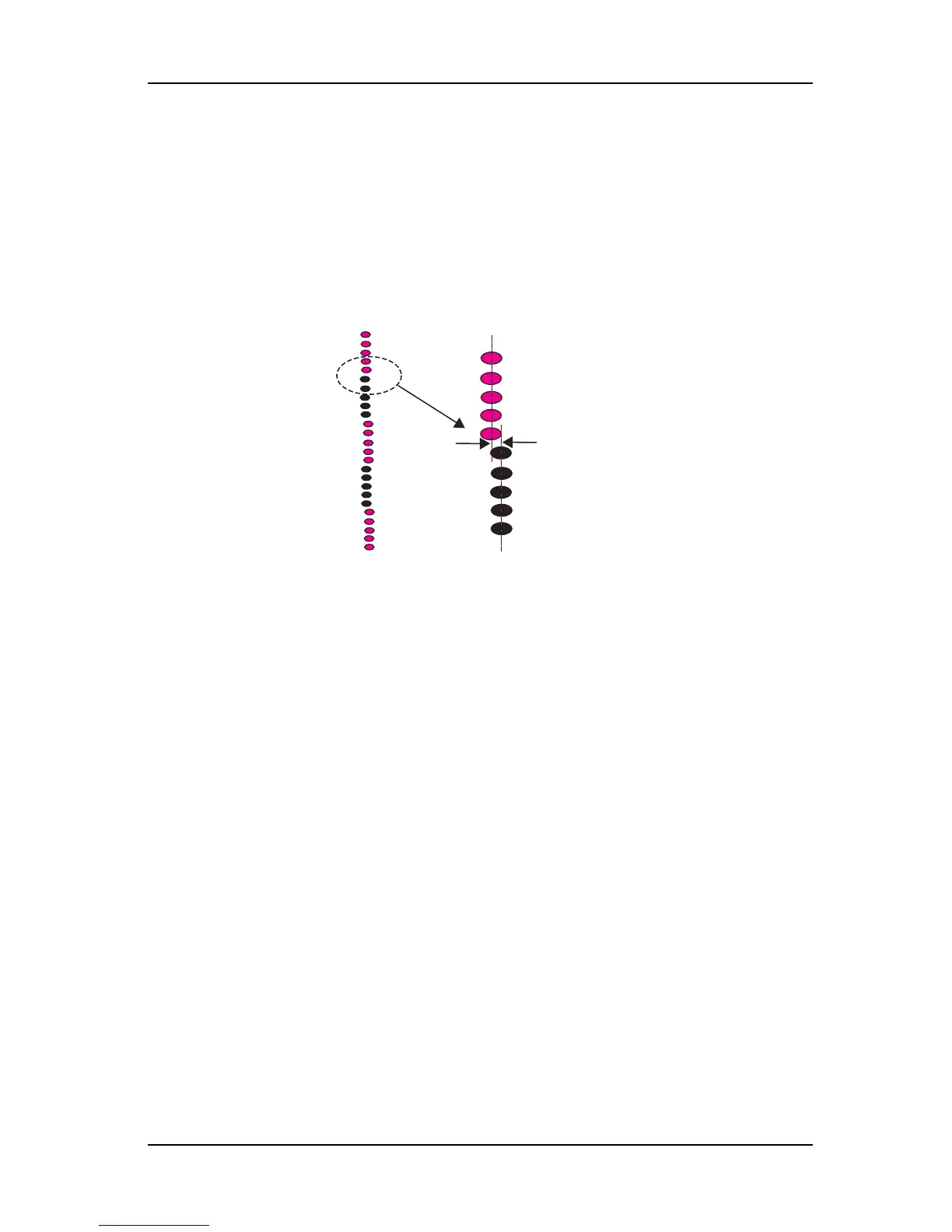

** Detail on B is as follows. Make an adjustment so that the size of the gap A below is smaller than the
half size of the dot.
Gap A
Assumed center
position A
Assumed Center
Position B
To Next Page
