5 Self-Diagnosis Mode RJ-901C/RJ-900C　 Maintenance Manual
5-34
4. If any abnormal conditions are found, identify the gap of the print positions and enter it as the CW
adjustment parameter.
After entering the parameter, make the machine print out the check patterns again as necessary.

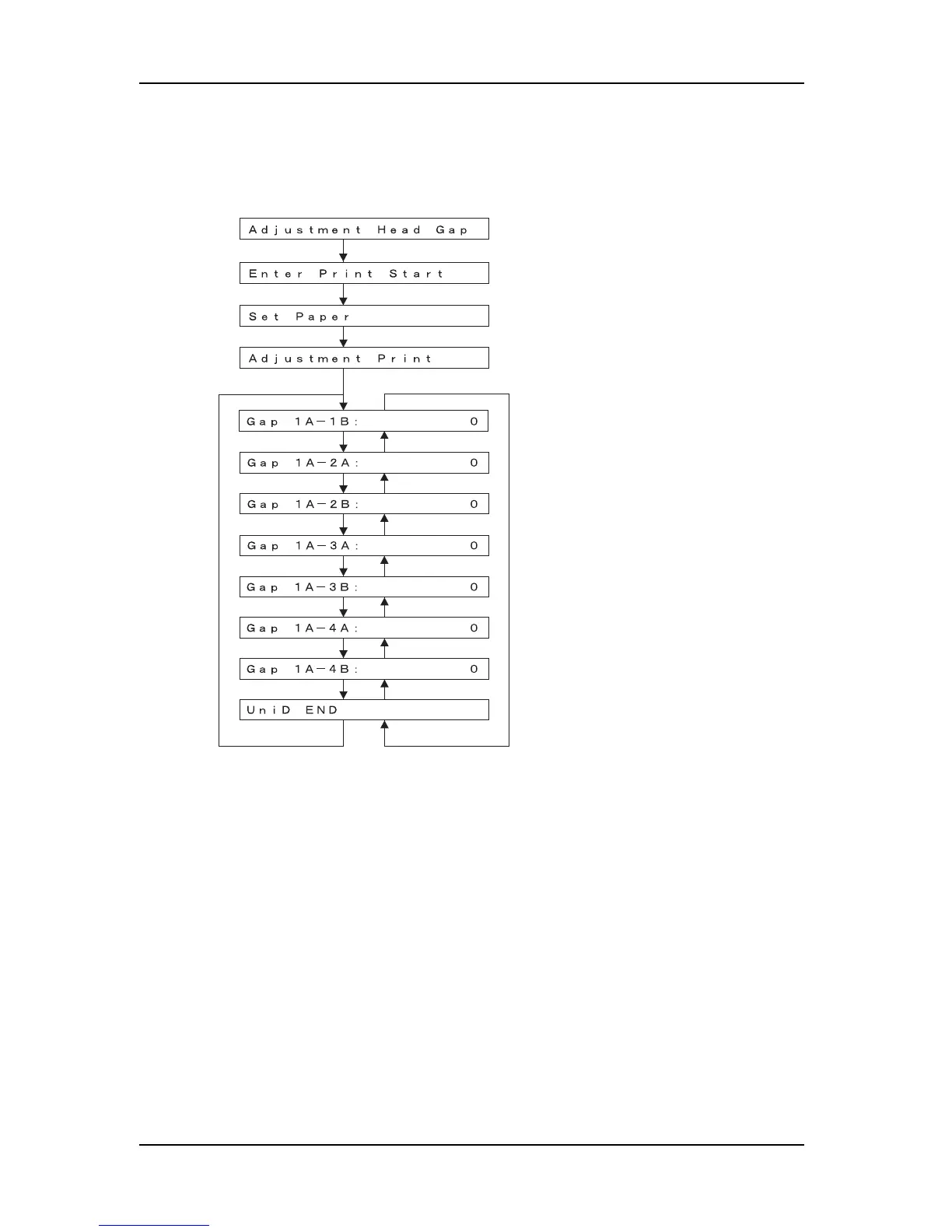

(The following shows a case for CW adjustment Low 1)
Media set
Head Gap change
Finish media initialization
Finish printing
If media is not set
If the head height alignment does not
meet the specification of the adjustment item.
Displayed during adjustment printing
Press [Setting/value +] or [Setting/value -]
key to input valueÞ“
1 pulse (= 1/720 inch) increments
Previous menu
Previous menu
Previous menu
Previous menu
Previous menu
Previous menu
Previous menu
Next menu
Next menu
Next menu
Next menu
Next menu
Next menu
Next menu
Next menu
To Next Page
