(2) Confirming Completion of Installation to Plotter
Program installation to plotter continues even after the "Transfer completed" window is closed. Check
whether the program is properly installed from the operation panel.
CAUTION
While the LCD display is in the Erasing to Comparing status, the power key is disabled. In
this situation, never disconnect the plug of the plotter. Doing so may disable plotter startup,
which will require reinstallation with special jig.

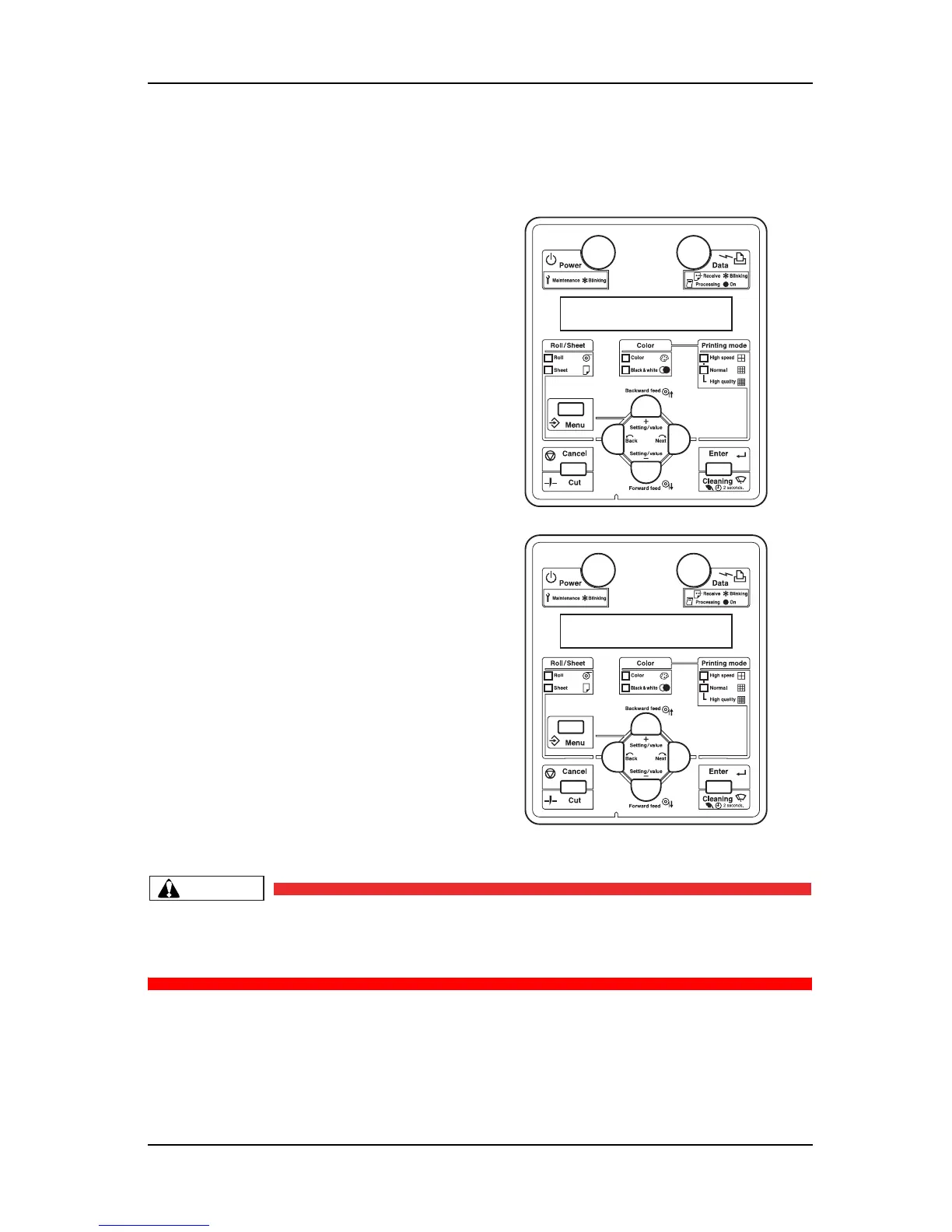

1. When firmware transfer starts, the LCD display
on the plotter’s operation control panel changes
to [Program receiving].
The Data LED flashes.
2. The LCD display changes as follows:
Erasing
×× (×× is numeric)
Copying
×× (×× is numeric)
Comparing
×× (×× is numeric)
㧼㨞㨛㨓㨞㨍㨙ޓ㨞㨑㨏㨑㨕㨢㨑㨕㨚㨓
㧱㨞㨍㨟㨕㨚㨓ޓ㧜㧝
