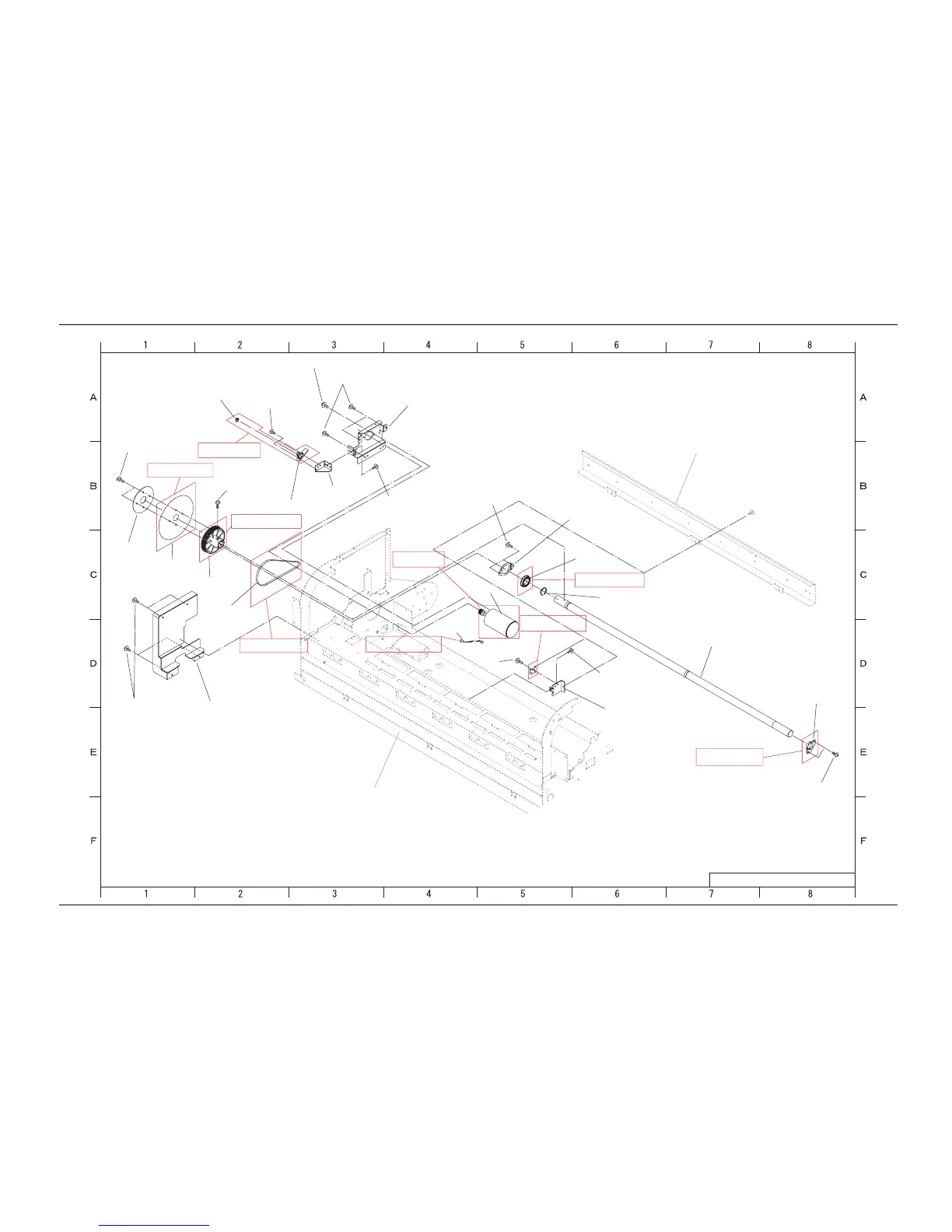

RJ-900C, RJ-901C Maintenance Manual Supplement Exploded View
3
X Rail Assy 1
2006.04.19 Rev.A
Feed Assy
Model Name : RJ-900C, RJ-901C
Exploded View
Frame assy
Media guide Assy
Pan-head screw
with spring washer
and flat washer M3 x 6
MS-0503006A
Pan-head screw
with spring washer
and flat washer M3 x 8
MS-0503008A
6CRRKPIUETGY/Z5VKIJVEWR
MS-5203006A
6CRRKPIUETGY/Z5VKIJVEWR
MS-5203006A
Pan-head screw
with spring washer
and flat washer M3 x 8
MS-0503008A
6CRRKPIUETGY/Z2VKIJVEWR
MS-5903008A
6CRRKPIUETGY/Z5VKIJVEWR
MS-5203006A
Pan-head screw
with spring washer
and flat washer M3 x 6
MS-0503006A
5NKFKPIDGCTKPI
DF-48545
)TKFTQNNGT
DE-22134(A1)
DE-22143 (A0)
Intermediate support spar
DF-48549
Sliding
support
DF-48548
PF motor 2
DE-36625
2(DTCEMGV
DE-36656
PF encoder mounting plate
DF-49137
PF encoder A1 assembly
DF-48631
Slit guide
TB-30235
PF cover
DE-12571
Timing belt
DF-48551
Reduction pulley
DE-36500
PF_ENC scale
DE-36501
ENC holder
DF-48550
Bearing
DF-48546
Bearing holder
DF-48547
C-ring (jig) JG-20
MS-8220000A
6CRRKPIUETGY/Z
5VKIJVEWR
MS-5203006A
Pan-head screw
with spring washer
and flat washer (polished)
M2 x 6 Ni-3 MS-05020061
6CRRKPIUETGY/Z2VKIJVEWR
MS-5903008A
PF motor relay
A1 assembly
DF-48620
PF_ENC_A1_assembly
DF-48984
Sliding bearing assembly
DF-49048
G roller bearing assembly
DF-49049
Sliding support assembly
DF-49050
X reduction belt assembly
DF-49064
PF_ENC scale assembly
DF-49028
Reduction pulley assembly
DF-49051
PF motor relay A1_assembly
ASSY DF-48987
PF motor assembly
DF-49020
